Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fascia grille through the front of the fascia opening.

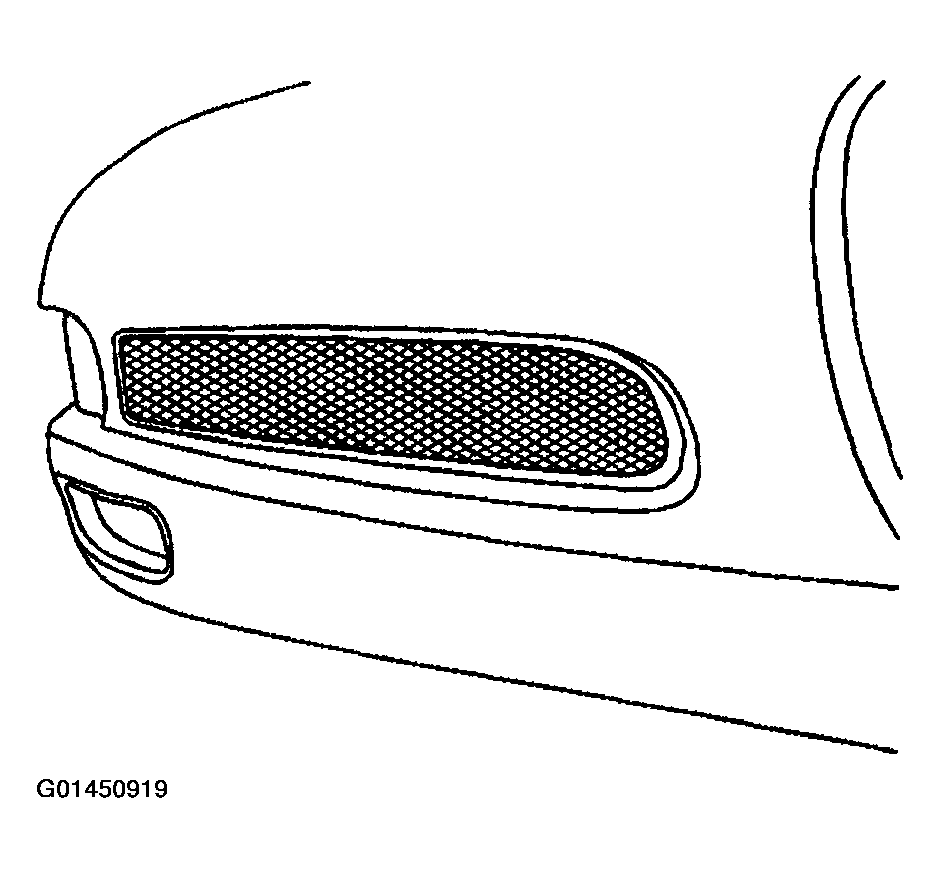

    Fig 1: Installing Fascia Grille Through Front Fascia Opening
    G01450919Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the fascia grille screws.

    Tighten

    Tighten the fascia grille screws to 2 N.m (18 lb in).

  3. Install the clips at the top of the fascia grille (2).
  4. Install the wiring harness' retaining clips (1).
  5. Install the front brake caliper cooling duct. Refer to BRAKE CALIPER COOLING DUCT REPLACEMENT - FRONT  .
  6. Lower the vehicle.

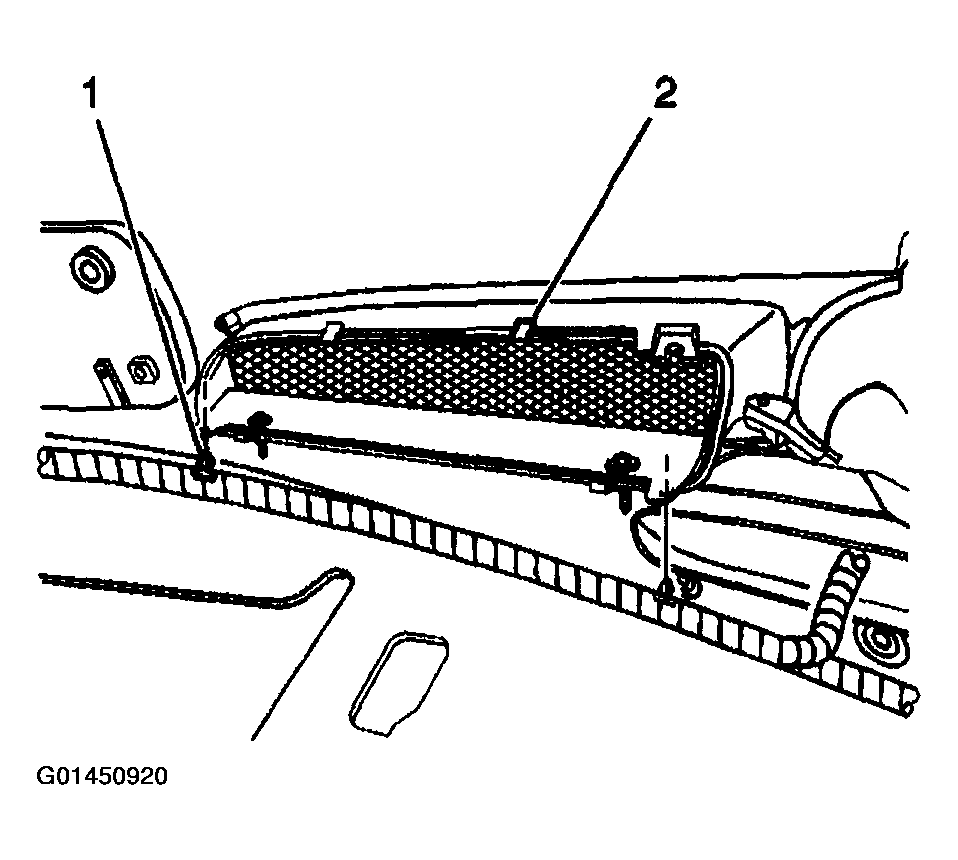

Fig 2: Fascia Grille
G01450920Courtesy of GENERAL MOTORS CORP.
