Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER  .
  2. Remove the front fascia retainer bolts.
  3. Remove the front fascia retainer.
    Fig 1: Front Fascia Retainer
    G01450923Courtesy of GENERAL MOTORS CORP.
  4. Remove the front fascia bracket bolts.
  5. Remove the front fascia bracket.

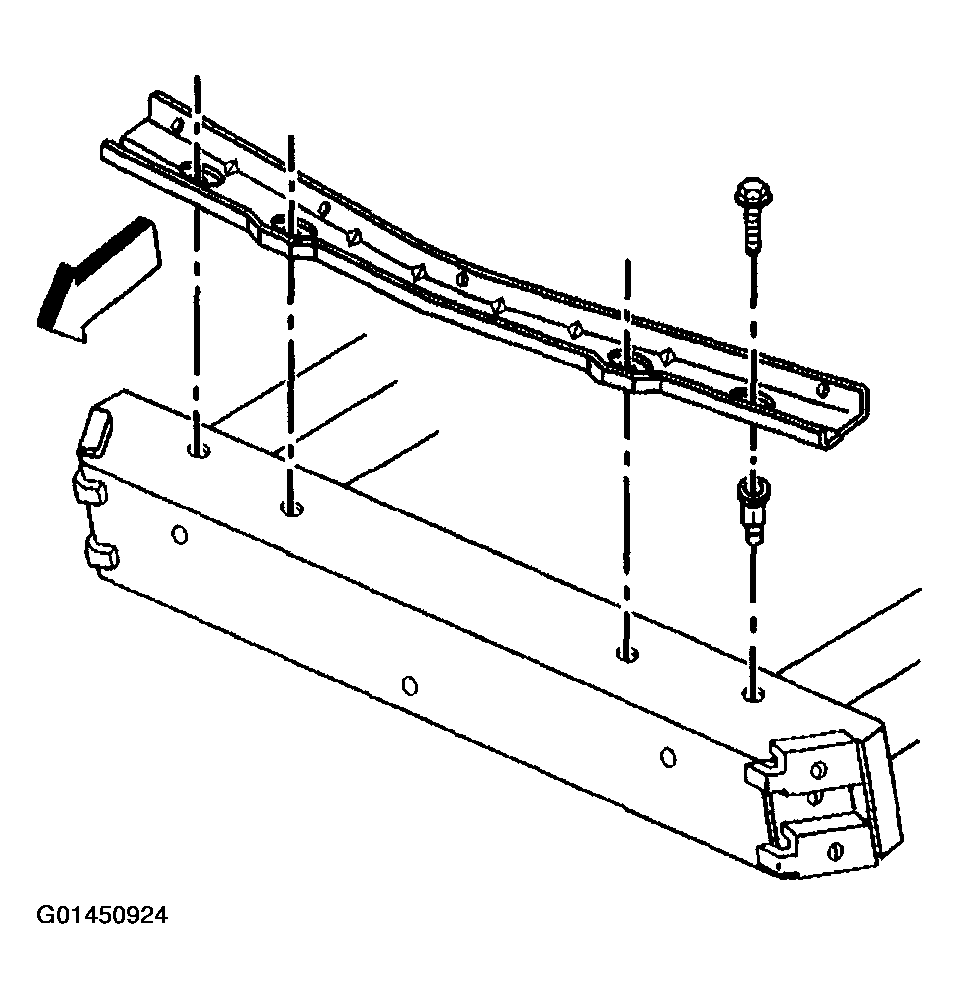

    Fig 2: Front Fascia Bracket
    G01450924Courtesy of GENERAL MOTORS CORP.
