Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front bumper fascia bracket to the impact bar.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the front fascia bracket to impact bar bolts.

    Tighten

    Tighten the front fascia bracket bolts to 7 N.m (62 lb in).

  3. Position the front fascia retainer to the front fascia bracket.

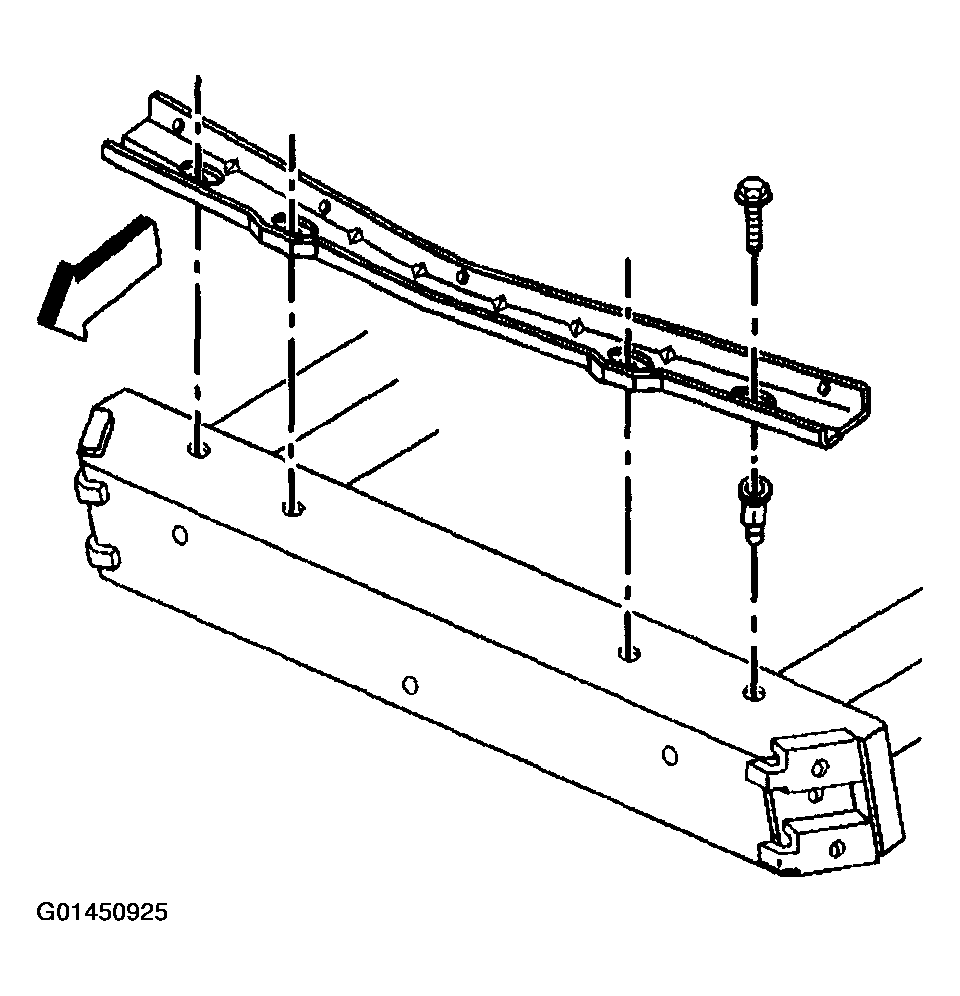

    Fig 1: Front Fascia Bracket
    G01450925Courtesy of GENERAL MOTORS CORP.
  4. Install the front fascia retainer to fascia bracket bolts.

    Tighten

    Tighten the front fascia retainer bolts to 7 N.m (62 lb in).

  5. Install the front fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER  .
    Fig 2: Front Fascia Retainer
    G01450926Courtesy of GENERAL MOTORS CORP.
