Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the energy absorber.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the energy absorber, spacers and bolts to the impact bar

    Tighten

    Tighten the rear energy absorber attaching bolts to 5 N.m (44 lb in).

  3. Install the rear fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER  .

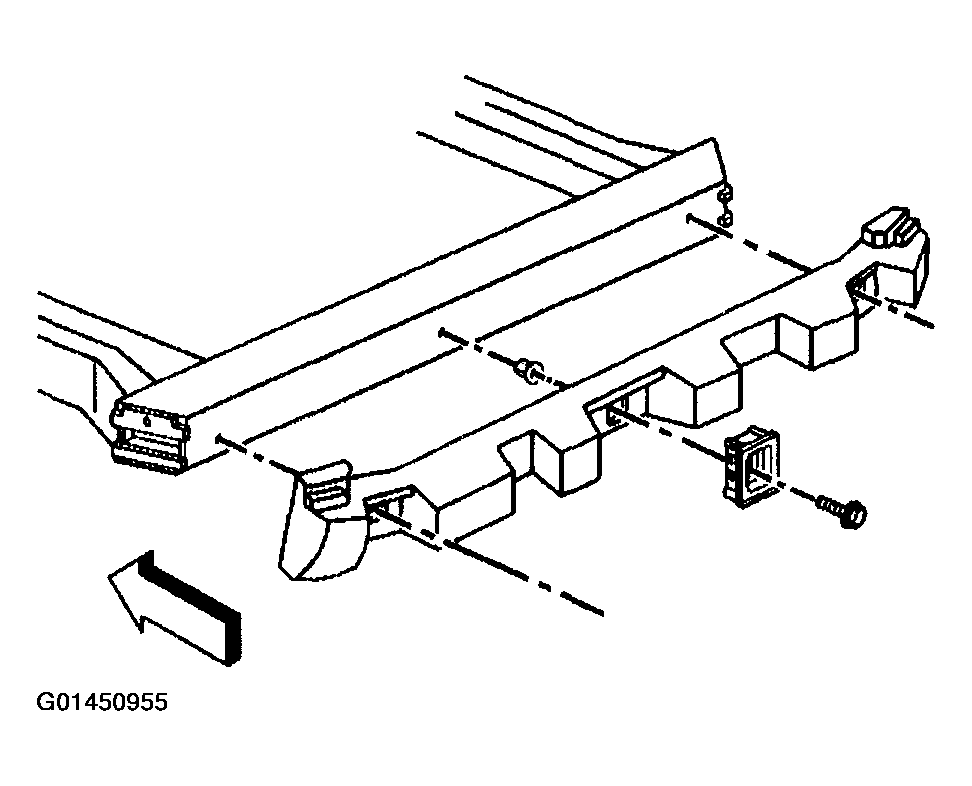

    Fig 1: Rear Energy Absorber
    G01450955Courtesy of GENERAL MOTORS CORP.
