Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the front fascia lower close out panel to wheelhouse panel bolts.
  3. Remove the valance panel.
  4. Remove the front fascia lower close out panel to fascia bolts.
  5. Remove the close out panel.

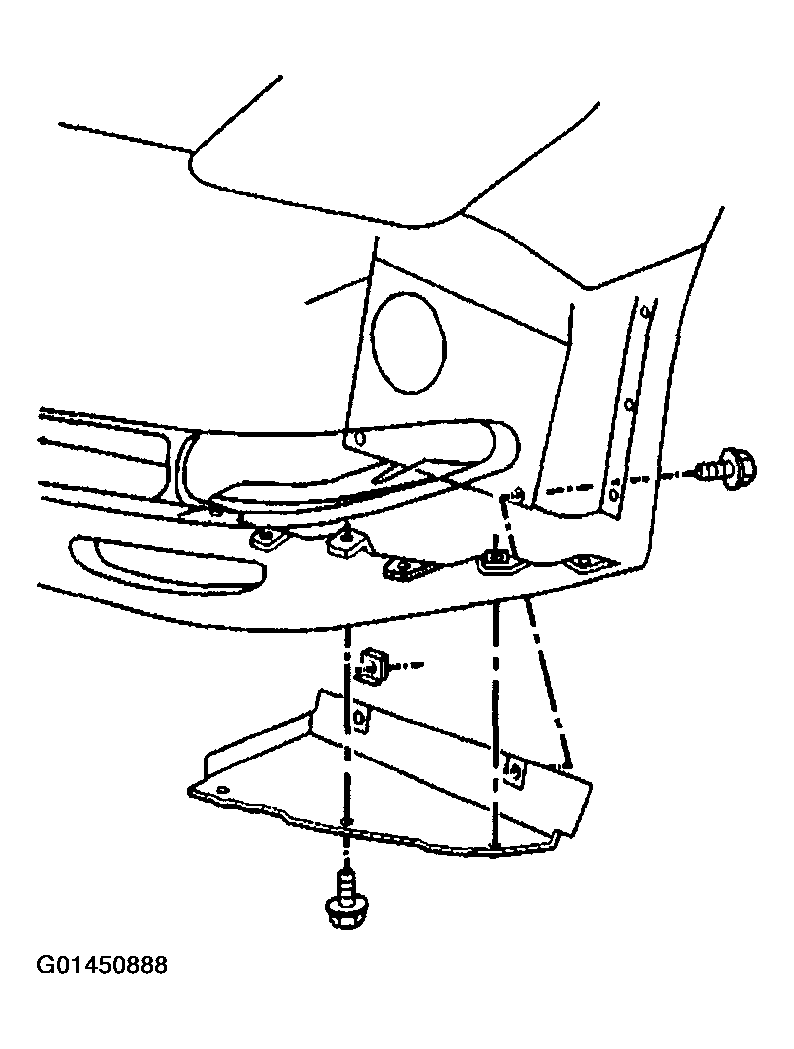

    Fig 1: Front Bumper Close Out Panel
    G01450888Courtesy of GENERAL MOTORS CORP.
