Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the close out panel to the wheelhouse panel and to the fascia.
  2. Install the close out panel to fascia bolts.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the close out panel to wheelhouse panel bolts.

    Tighten

    Tighten the front fascia lower close out panel bolts to 7 N.m (62 lb in).

  4. Install the valance panel.

    Tighten

    Tighten the valance screws to 7 N.m (62 lb in).

  5. Lower the vehicle.

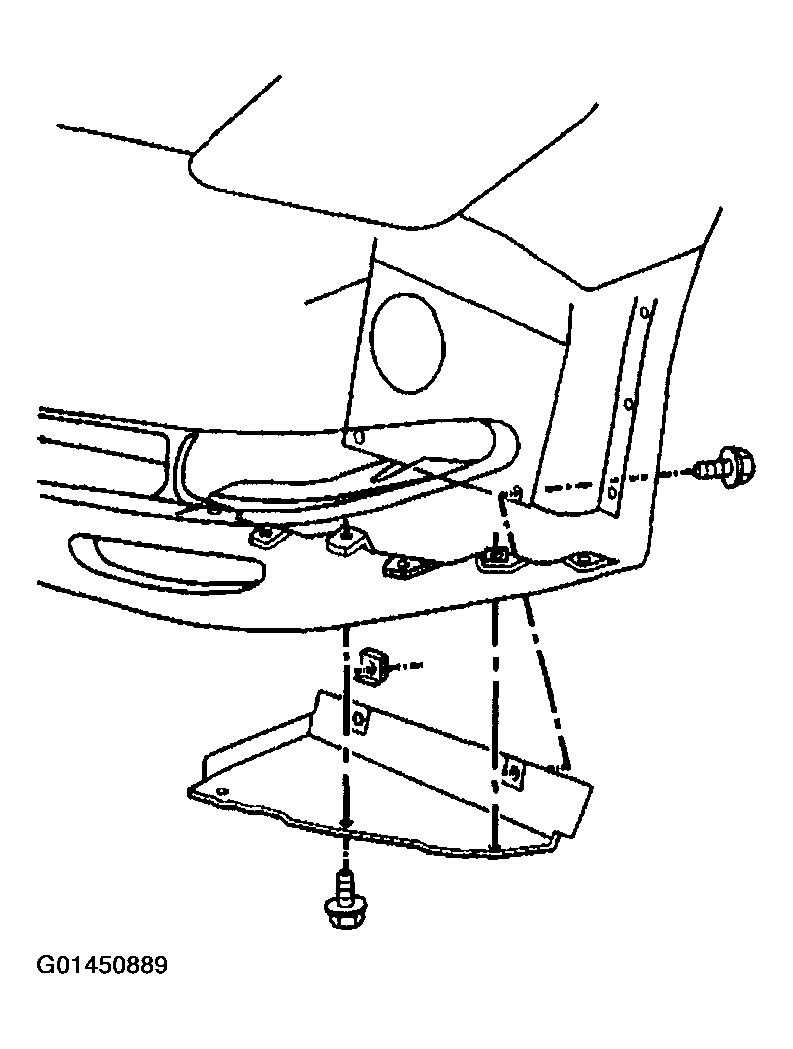

Fig 1: Front Bumper Close Out Panel
G01450889Courtesy of GENERAL MOTORS CORP.
