Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the brake caliper cooling duct into the opening in the wheelhouse.
  2. Rotate the duct to lock in place.
  3. Reposition the fascia forward and up to gain clearance.
  4. Position the duct over the opening in the fascia.

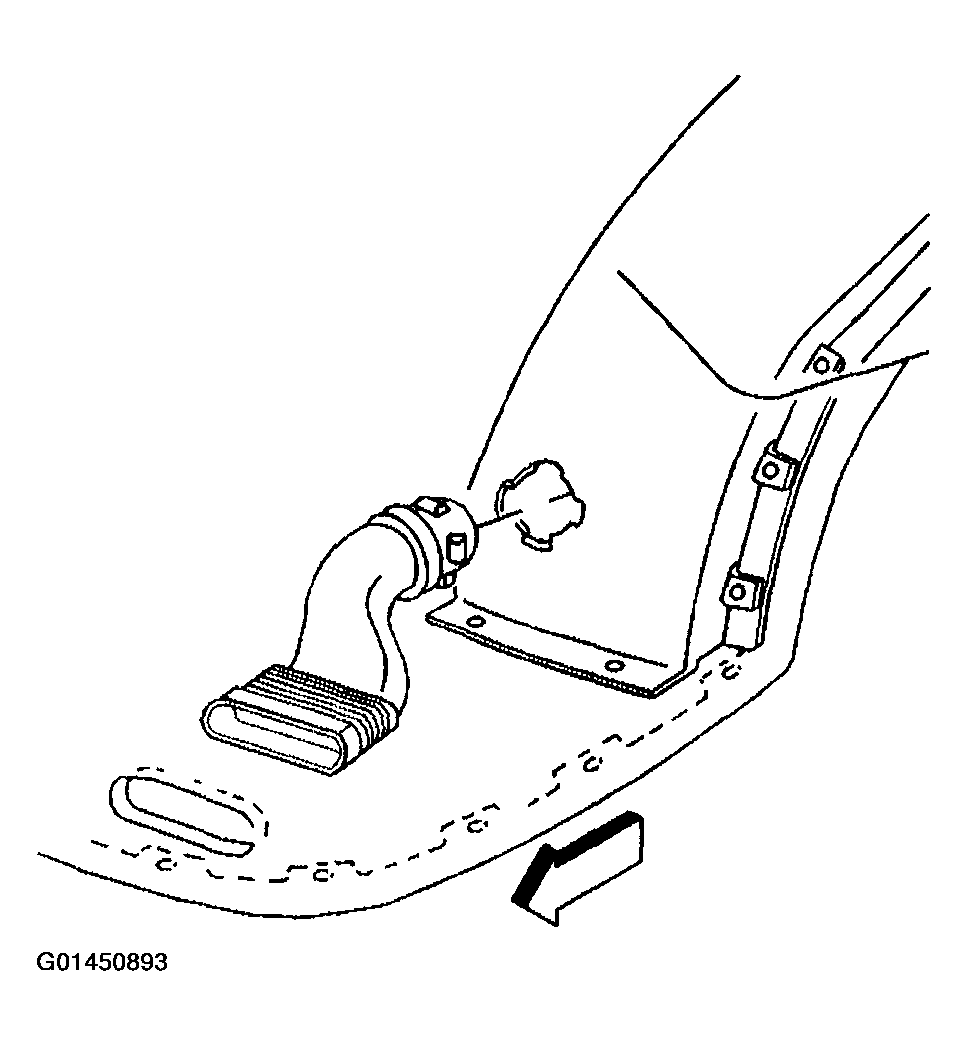

    Fig 1: Installing Brake Caliper Cooling Duct To Wheelhouse Panel
    G01450893Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the fascia to skid bar bolts.

    Tighten

    Tighten the front fascia to skid bar bolts to 3 N.m (27 lb in).

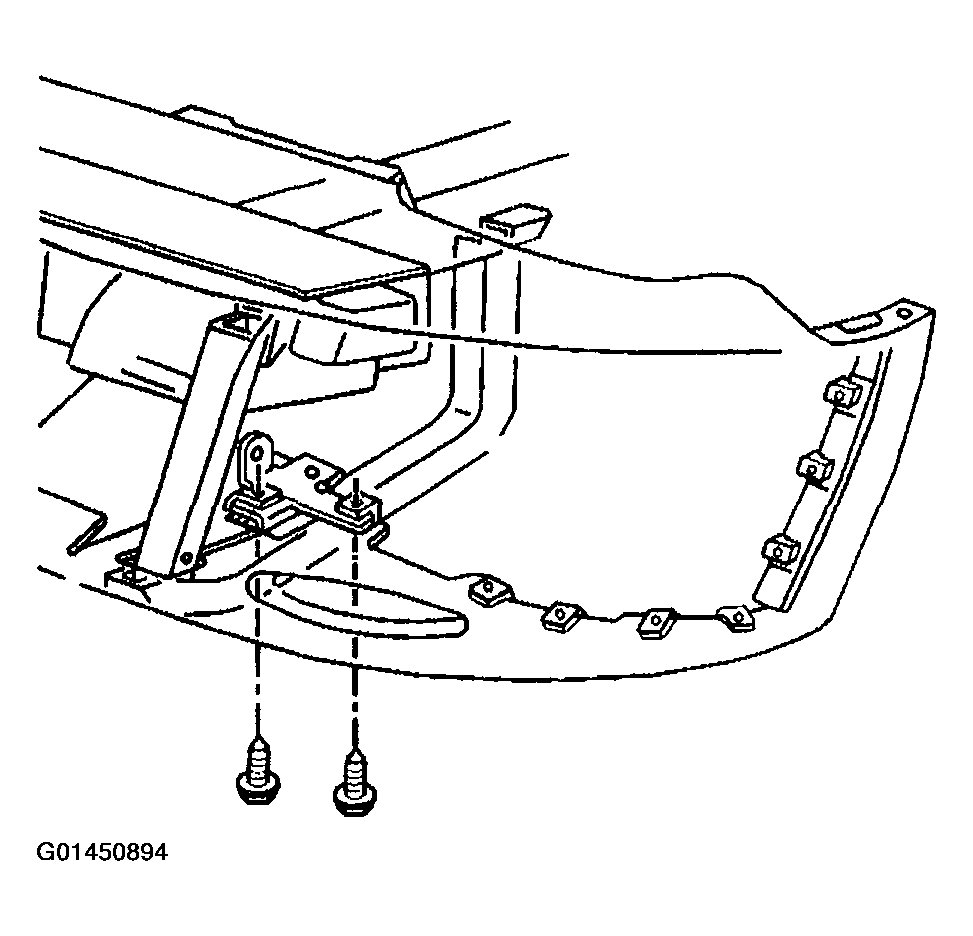

    Fig 2: Front Fascia Skid Bar Bolts
    G01450894Courtesy of GENERAL MOTORS CORP.
  6. Install the fascia close out panel. Refer to CLOSE OUT PANEL - FRONT BUMPER FASCIA LOWER .

    Tighten

    Tighten the front fascia lower close out panel bolts to 7 N.m (62 lb in).

  7. Install the wheelhouse to fascia bolts.

    Tighten

    Tighten the wheel house to fascia bolts to 3 N.m (27 lb in).

  8. Lower the vehicle.
  9. Install the fascia to energy absorber bolts.

    Tighten

    Tighten the front energy absorber bolts to 5 N.m (44 lb in).

  10. Install the front license plate/cover.

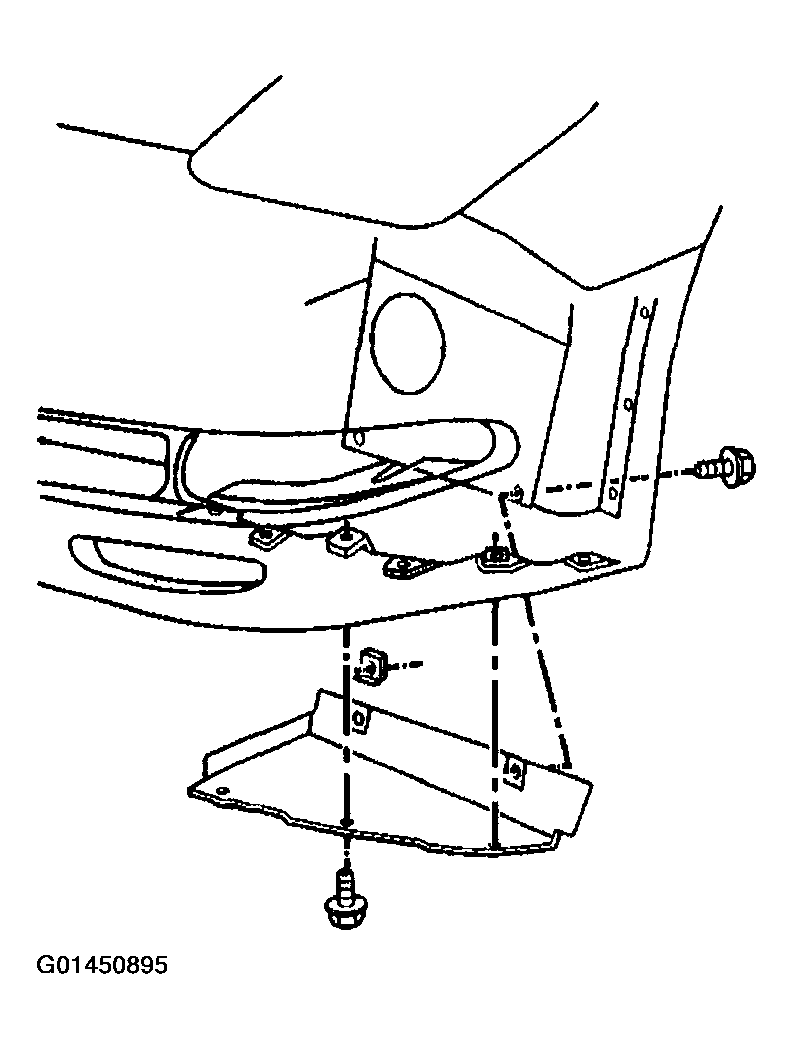

Fig 3: Fascia Close Out Panel
G01450895Courtesy of GENERAL MOTORS CORP.
