Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the weatherstrip.

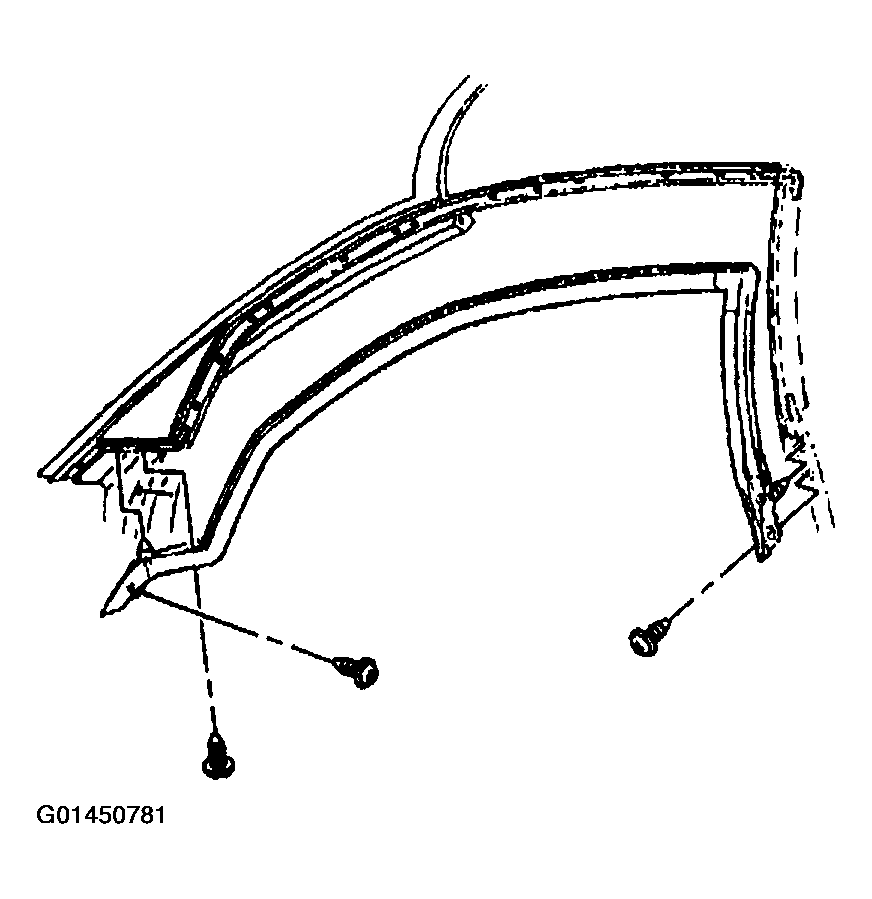

    Fig 1: Weatherstrip
    G01450781Courtesy of GENERAL MOTORS CORP.
  2. Remove the weatherstrip retainer.
  3. Remove the blow out clip, if reusing the clip.
  4. Clean the mounting surfaces.

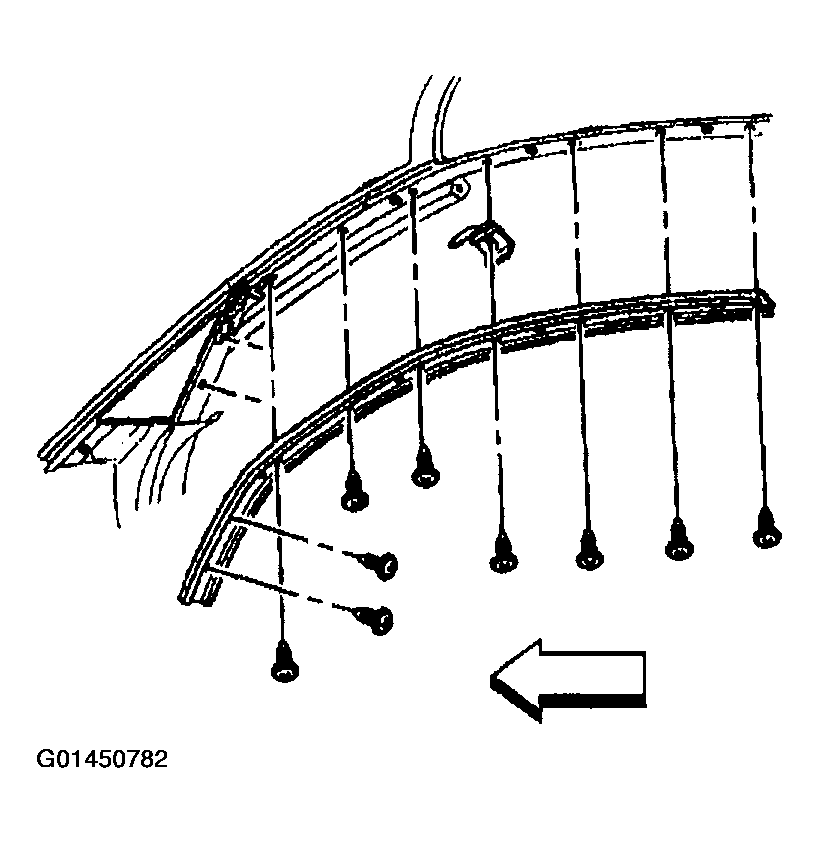

    Fig 2: Weatherstrip Retainer
    G01450782Courtesy of GENERAL MOTORS CORP.
