Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield weatherstrip from the weatherstrip side retainer and partially from the windshield frame. Refer to WEATHERSTRIP REPLACEMENT (COUPE AND CONVERTIBLE)  or WEATHERSTRIP REPLACEMENT (HARDTOP) .

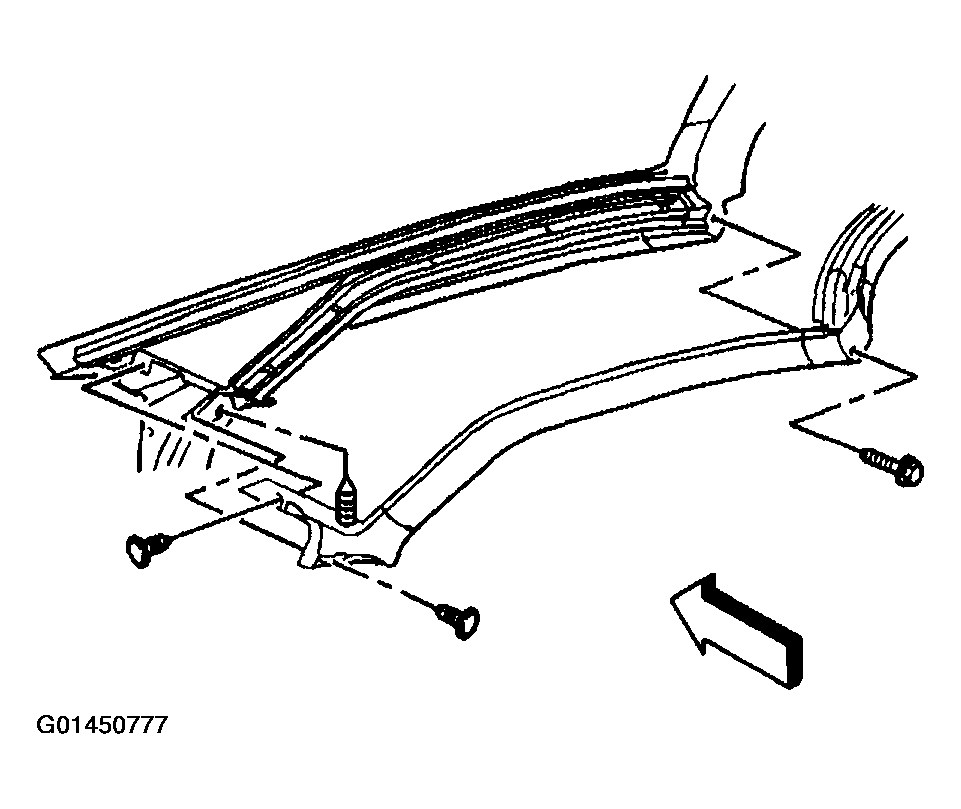

    Fig 1: Windshield Weatherstrip
    G01450777Courtesy of GENERAL MOTORS CORP.
  2. Remove the weatherstrip side retainer screws from the side reveal molding and the applique.
  3. Remove the retainer. If the retainer is to be reused, remove the old foam sealing tape from the retainer.
  4. Remove any old foam sealing tape from the retainer mounting surfaces.

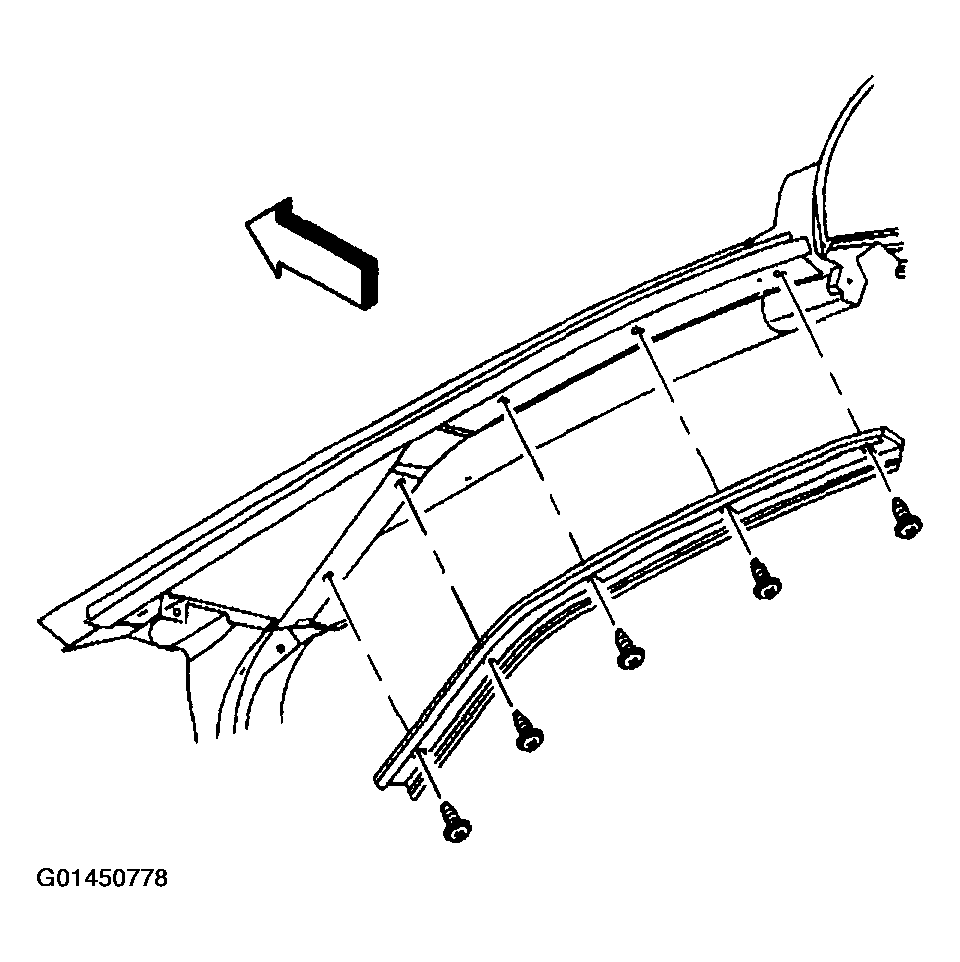

    Fig 2: Weatherstrip Side Retainer Screws
    G01450778Courtesy of GENERAL MOTORS CORP.
