Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Replace the foam tape if reusing the retainer:
- Extend the tape 2.0 mm (0.08 in) beyond the retainer ends.
- Do not stretch the tape to fit. The tape may shrink back, or creep, after installation, resulting in a gap which may cause a leak.
Peel the protective cover from the foam tape.
Replace any stripped, broken or improperly seated screws.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the windshield weatherstrip side retainer with screws at the following locations:
- The applique
  Tighten

  Tighten the side retainer to applique screws to 2.5 N.m (22 lb in).

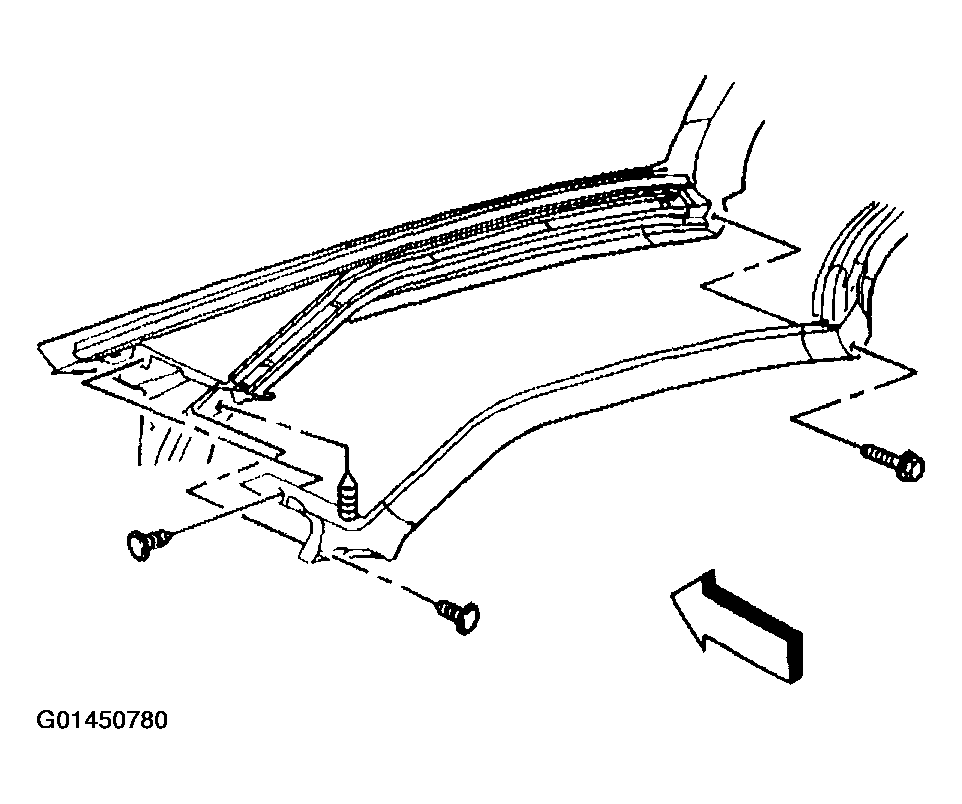

  Fig 1: Windshield Weatherstrip Screws
  Courtesy of GENERAL MOTORS CORP.
- The window frame
  Tighten

  Tighten the side retainer to window frame screws to 3.4 N.m (30 lb in).
Install the weatherstrip.

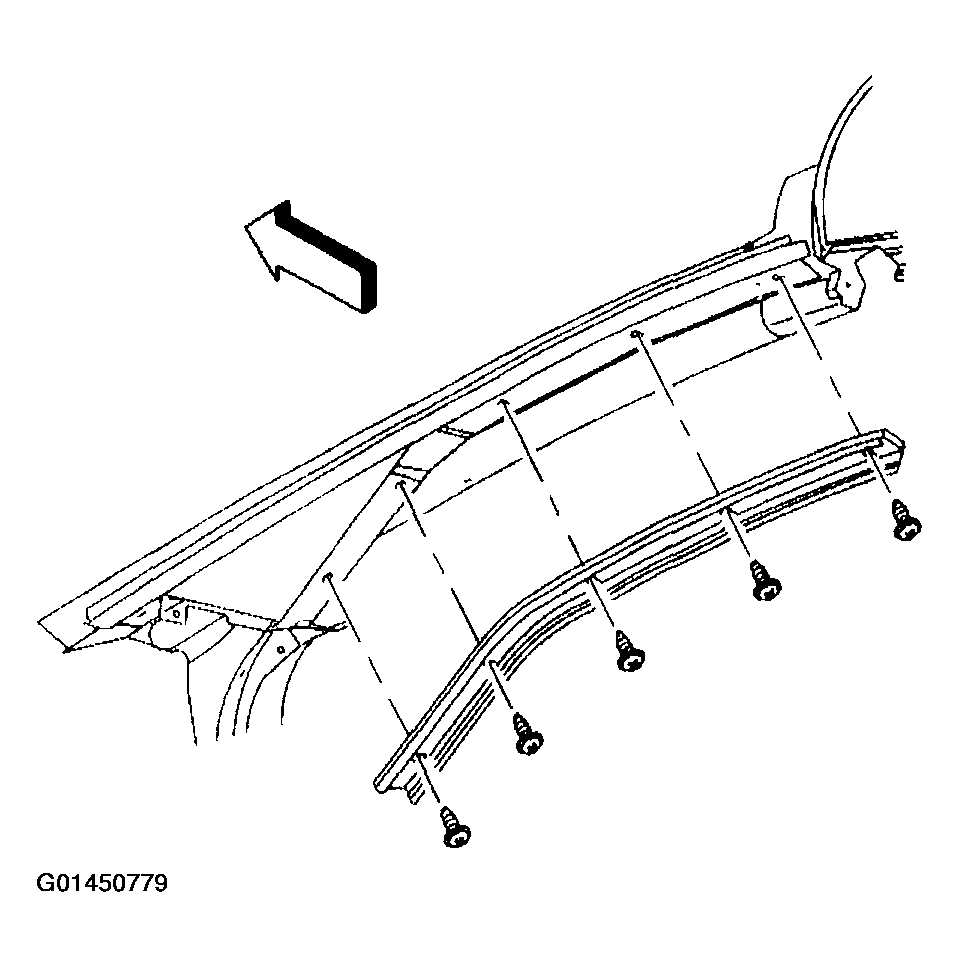

Fig 2: Weatherstrip
Courtesy of GENERAL MOTORS CORP.
