Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the driver and passenger side doors.
  2. Remove the roof lift off panel (coupe) or lower the top (convertible).
    Fig 1: Roof Lift Off Panel
    G01450785Courtesy of GENERAL MOTORS CORP.
  3. Remove the push in retainers from the lower corners of the weatherstrip.
  4. Remove the upper LH/RH corner screws from the weatherstrip.

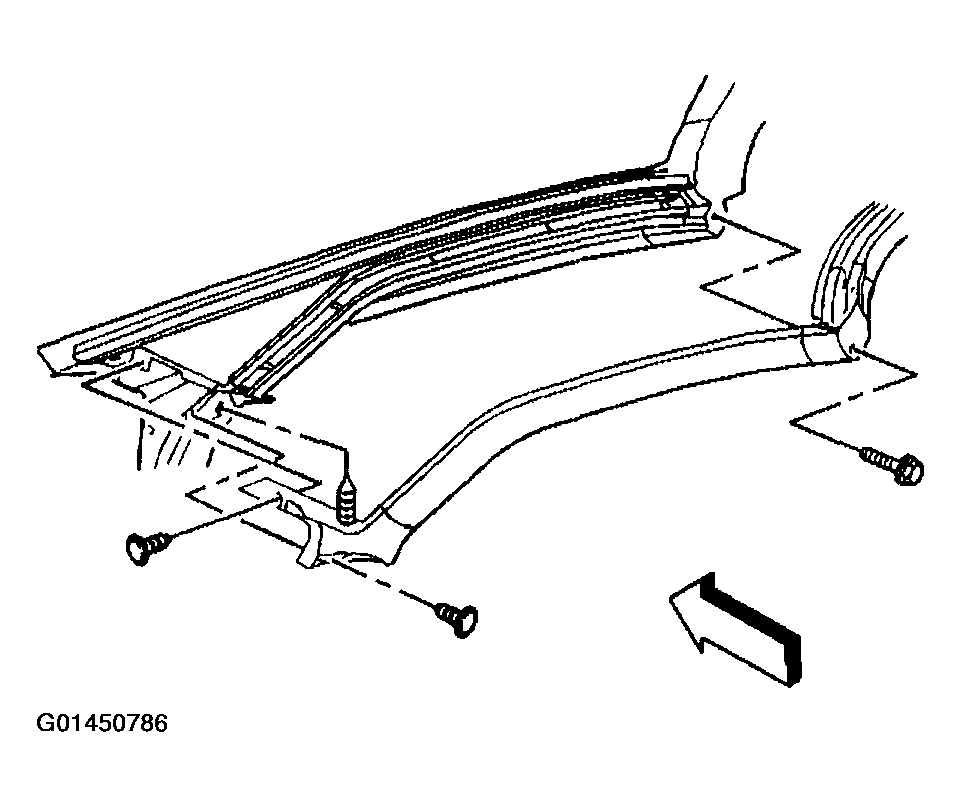

    Fig 2: Weatherstrip
    G01450786Courtesy of GENERAL MOTORS CORP.
  5. Peel the rear edge of the weatherstrip forward to expose the windshield upper retainer screws.
  6. Remove the upper retainer screws.
  7. Remove the weatherstrip with upper retainer.
  8. Clean the surface of old sealant material.

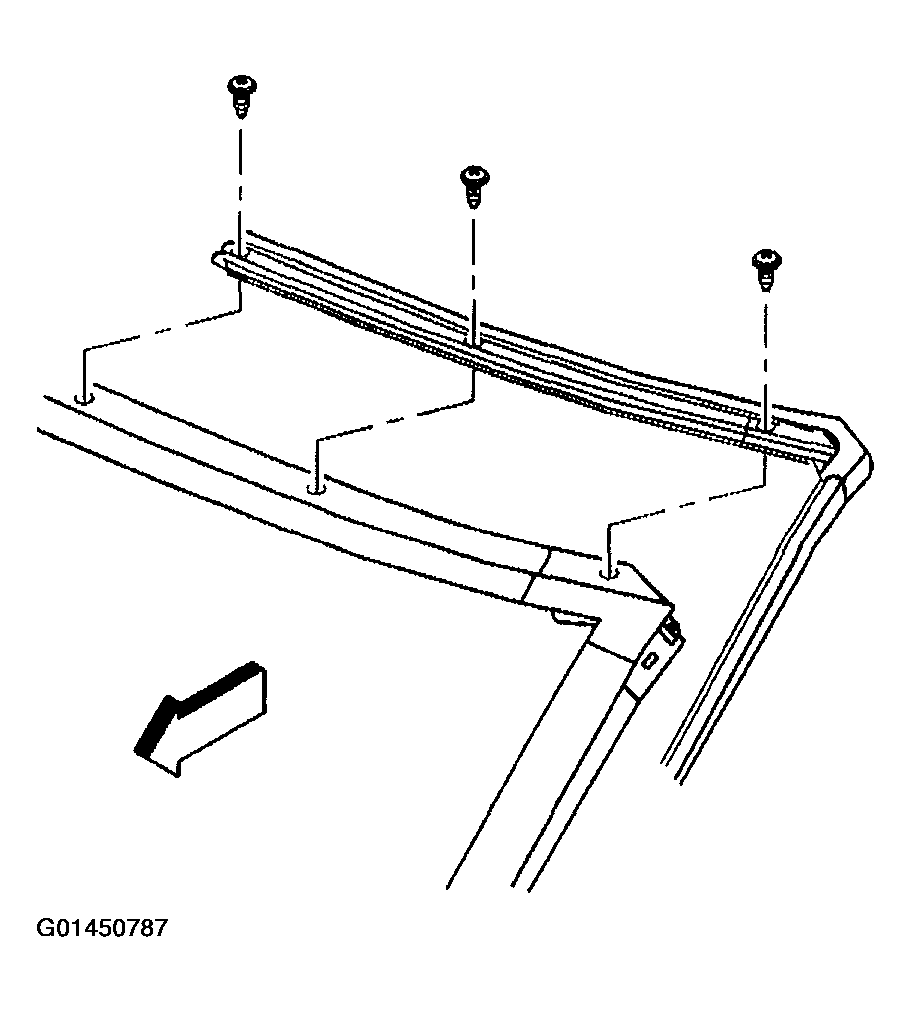

    Fig 3: Weatherstrip Upper Retainer
    G01450787Courtesy of GENERAL MOTORS CORP.
