Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the weatherstrip, the weatherstrip retainer, and the blow out clip. Refer to WEATHERSTRIP SIDE RETAINER REPLACEMENT (COUPE AND CONVERTIBLE)  or WEATHERSTRIP SIDE RETAINER REPLACEMENT (HARDTOP) .
  2. Remove the screws attaching the reveal molding.
  3. Remove the side reveal molding.
  4. Clean the mounting surfaces.

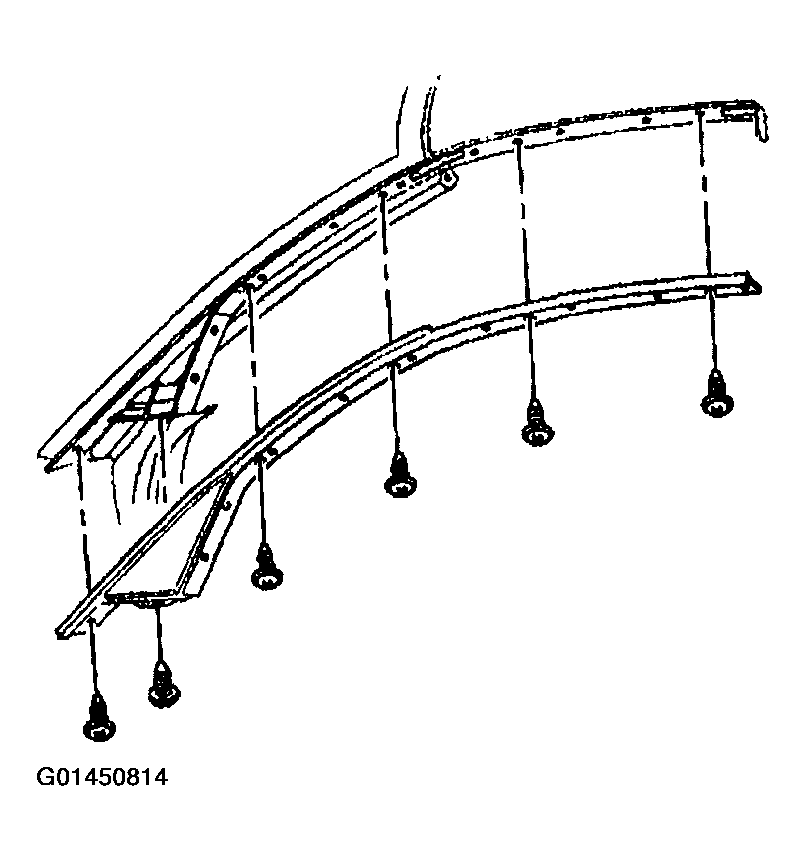

    Fig 1: Side Reveal Molding
    G01450814Courtesy of GENERAL MOTORS CORP.
