Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the electrical connector (1) to the back of the inside rearview mirror.

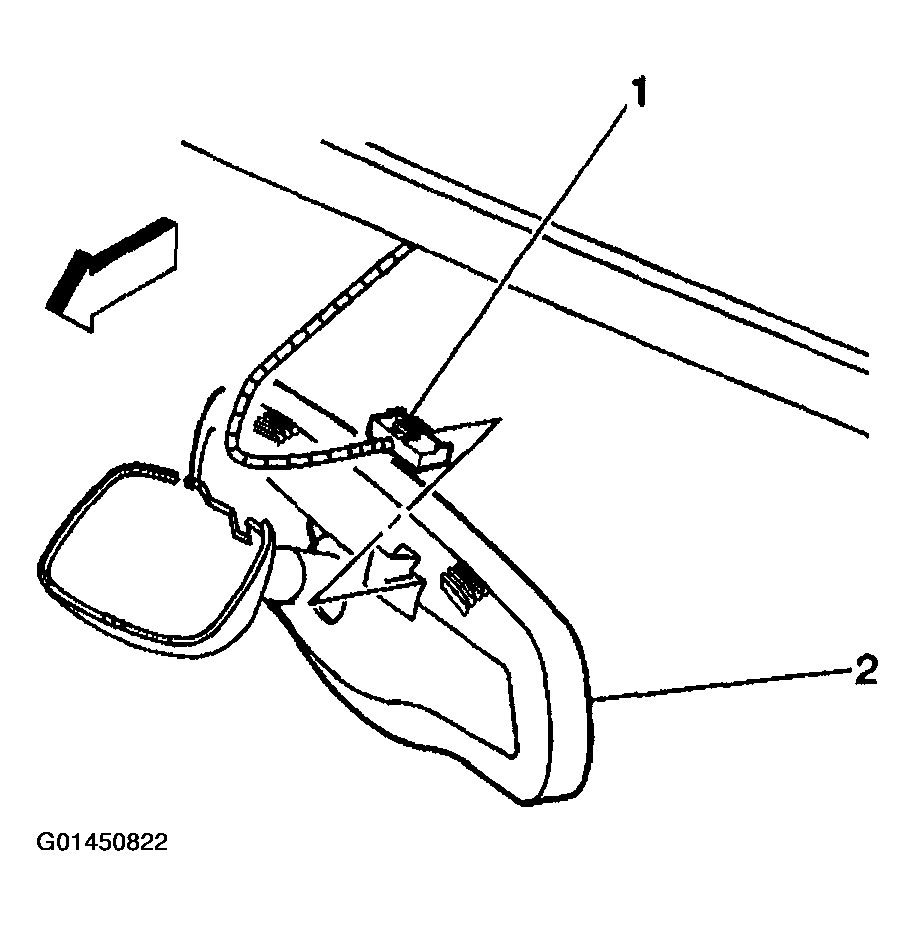

    Fig 1: Installing Electrical Connector To Back Of Inside Rearview Mirror
    G01450822Courtesy of GENERAL MOTORS CORP.
  2. Perform the following steps to install the inside rearview mirror:
    1. Center the bottom of the inside rearview mirror on the support.

      Important:  Do NOT pull rearward on the mirror while installing the mirror or damage to the support and/or windshield will occur.

    2. Rock the inside rearview mirror from side to side while pushing downward firmly. Take care not to damage the windshield.
    3. An audible click is heard when the inside rearview mirror is fully seated.

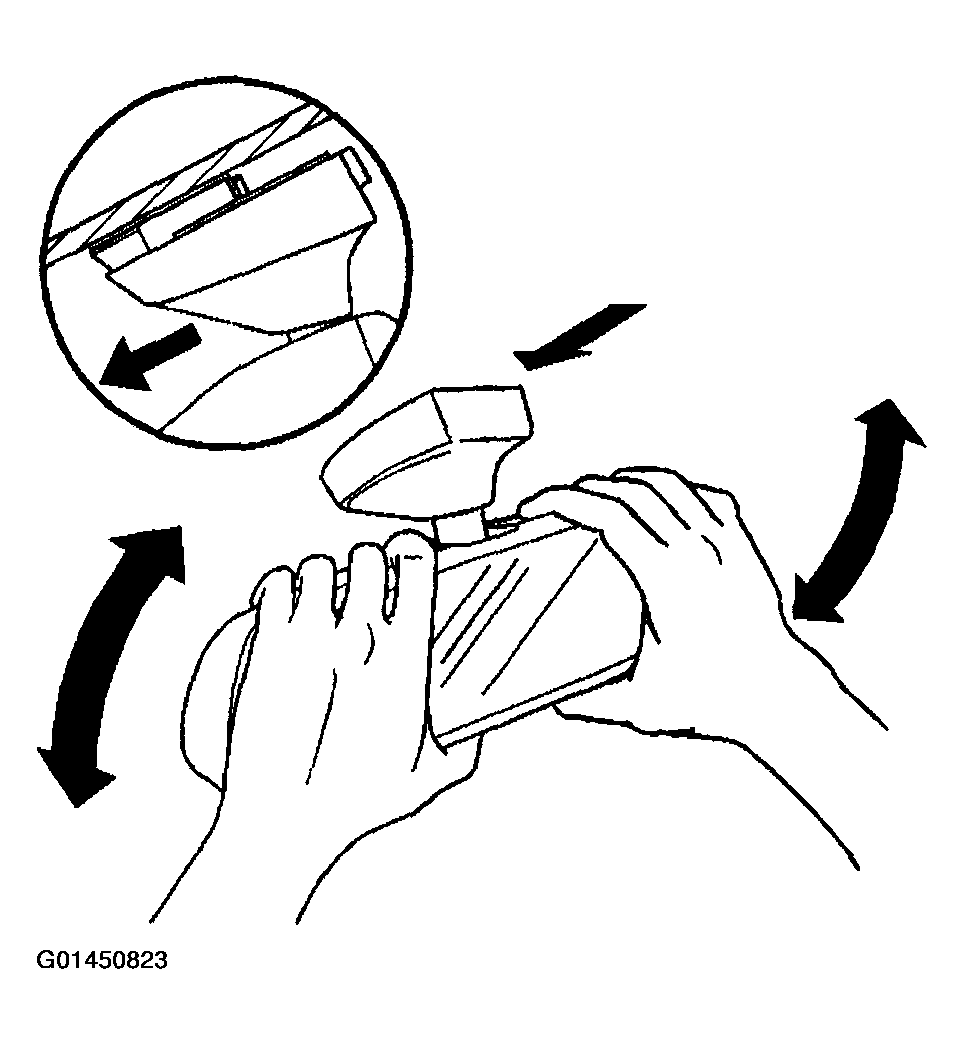

    Fig 2: Inside Rearview Mirror
    G01450823Courtesy of GENERAL MOTORS CORP.
