Symptom List

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom:

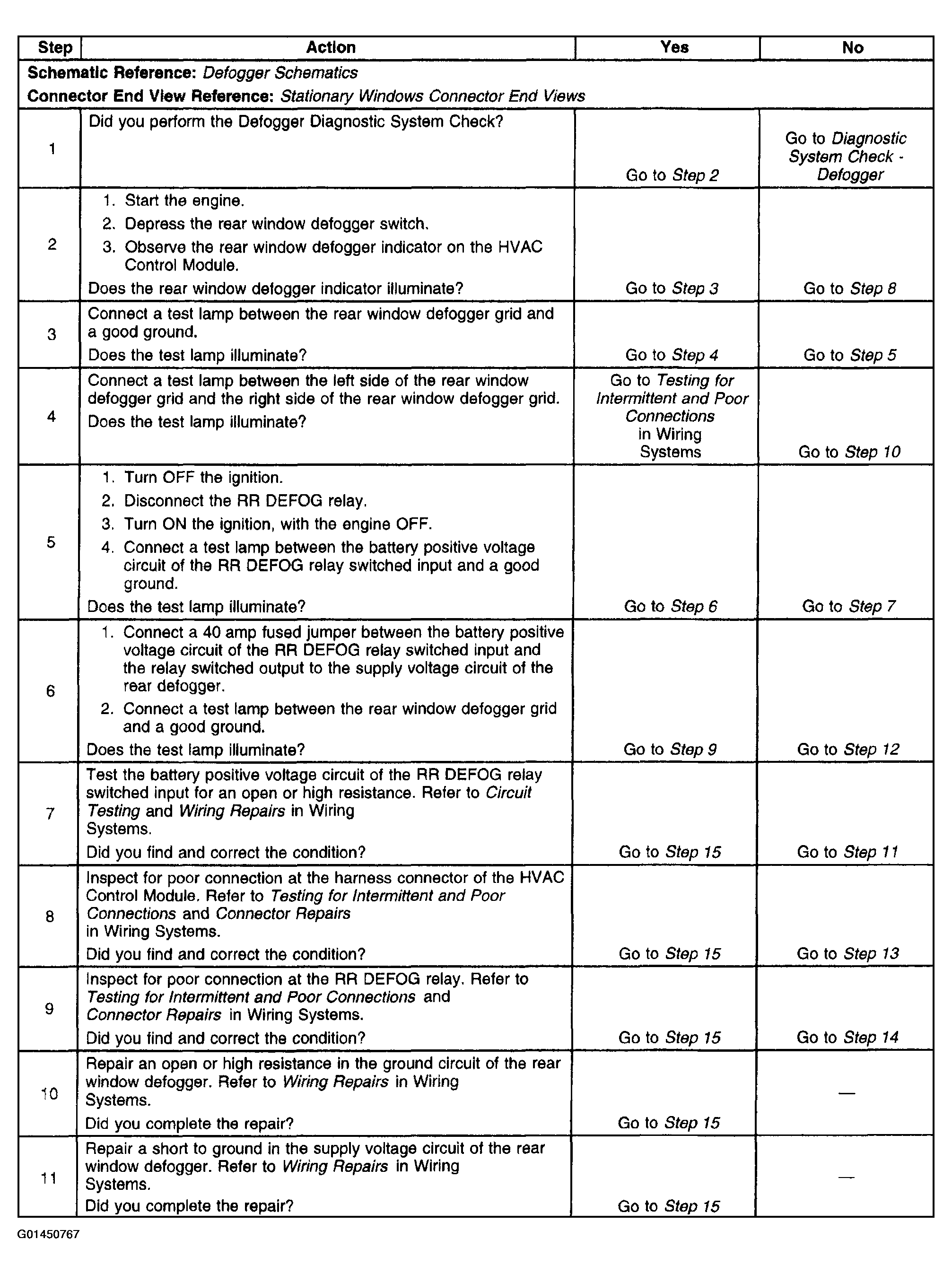

Fig 1: Defogger Inoperative - Rear Window (w/CJ2) Specifications (1 Of 2)
G01450767Courtesy of GENERAL MOTORS CORP.

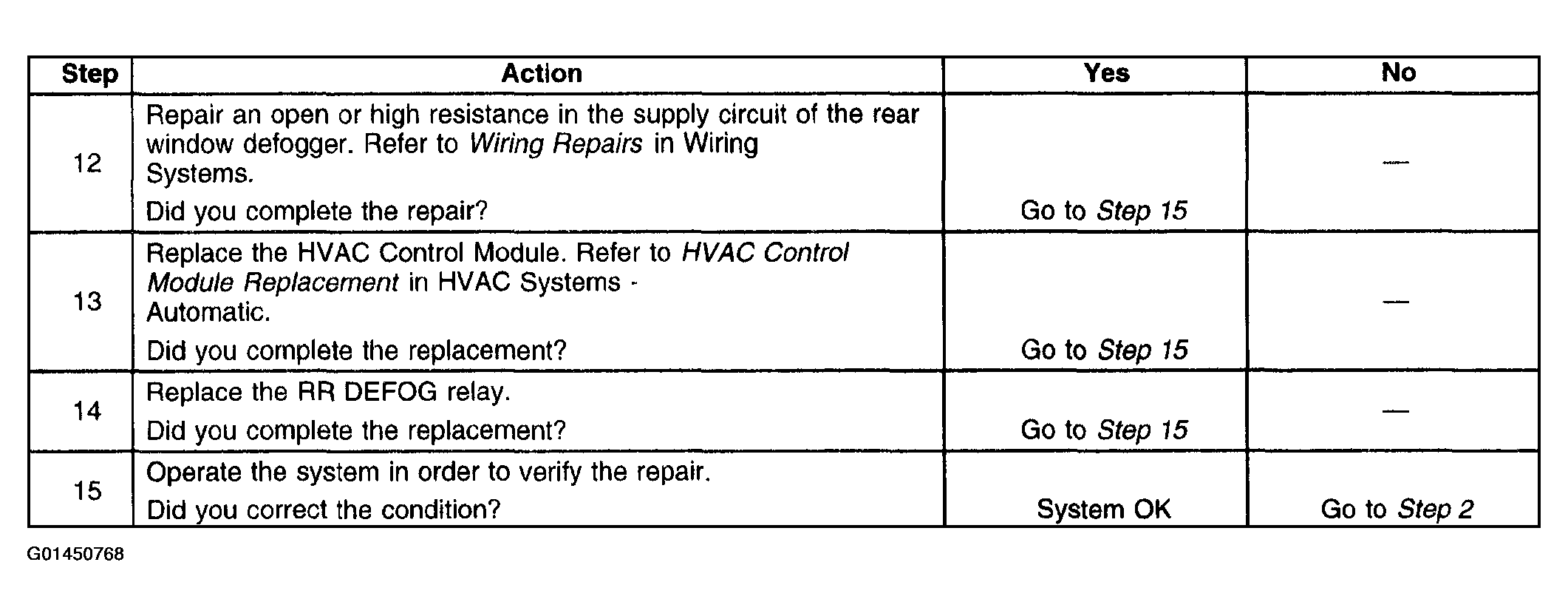

Fig 2: Defogger Inoperative - Rear Window (w/CJ2) Specifications (2 Of 2)
G01450768Courtesy of GENERAL MOTORS CORP.

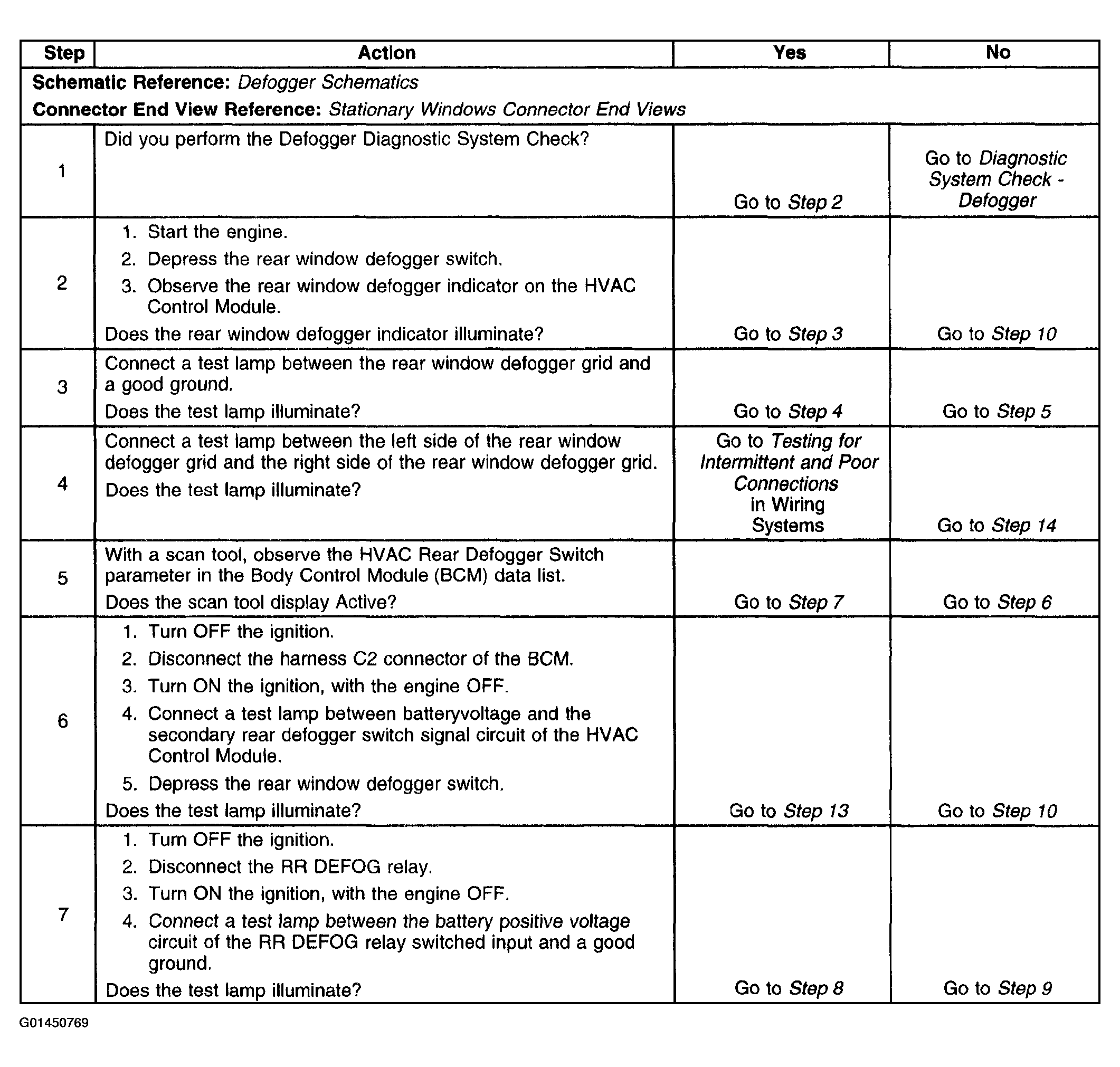

Fig 3: Defogger Inoperative - Rear Window (w/oCJ2) Specifications (1 Of 2)
G01450769Courtesy of GENERAL MOTORS CORP.

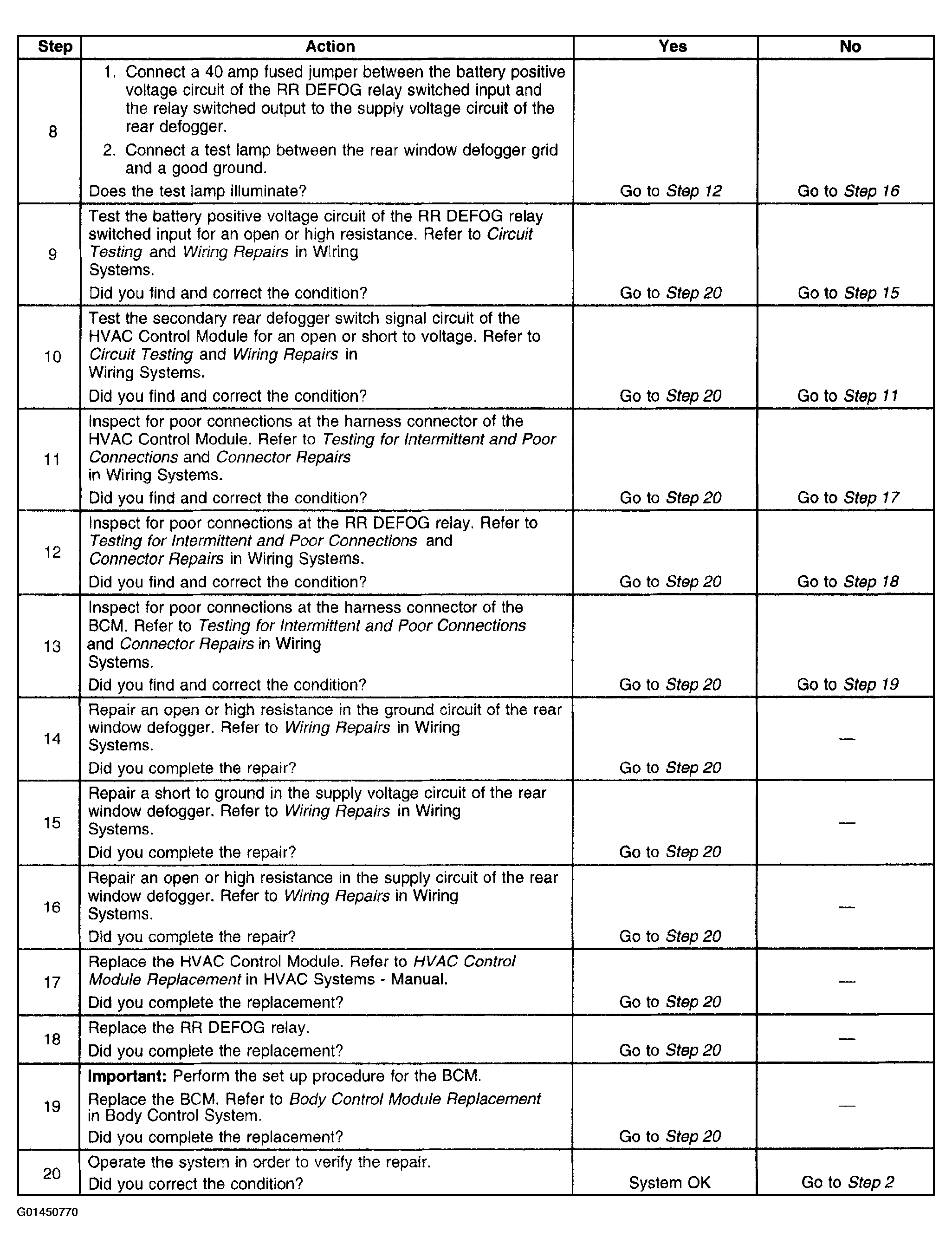

Fig 4: Defogger Inoperative - Rear Window (w/oCJ2) Specifications (2 Of 2)
G01450770Courtesy of GENERAL MOTORS CORP.

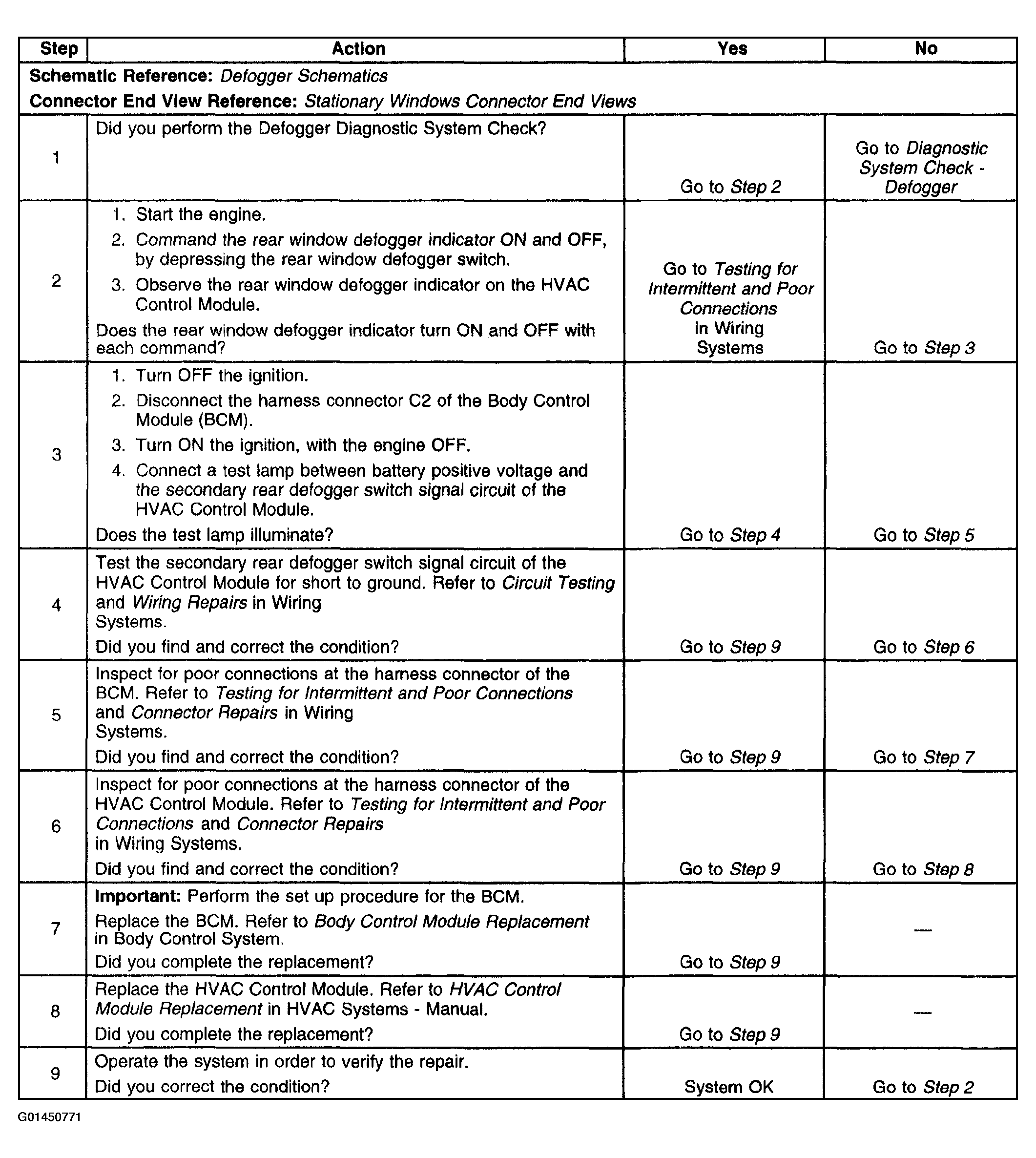

Fig 5: Defogger Indicator Always On Specifications
G01450771Courtesy of GENERAL MOTORS CORP.
