Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

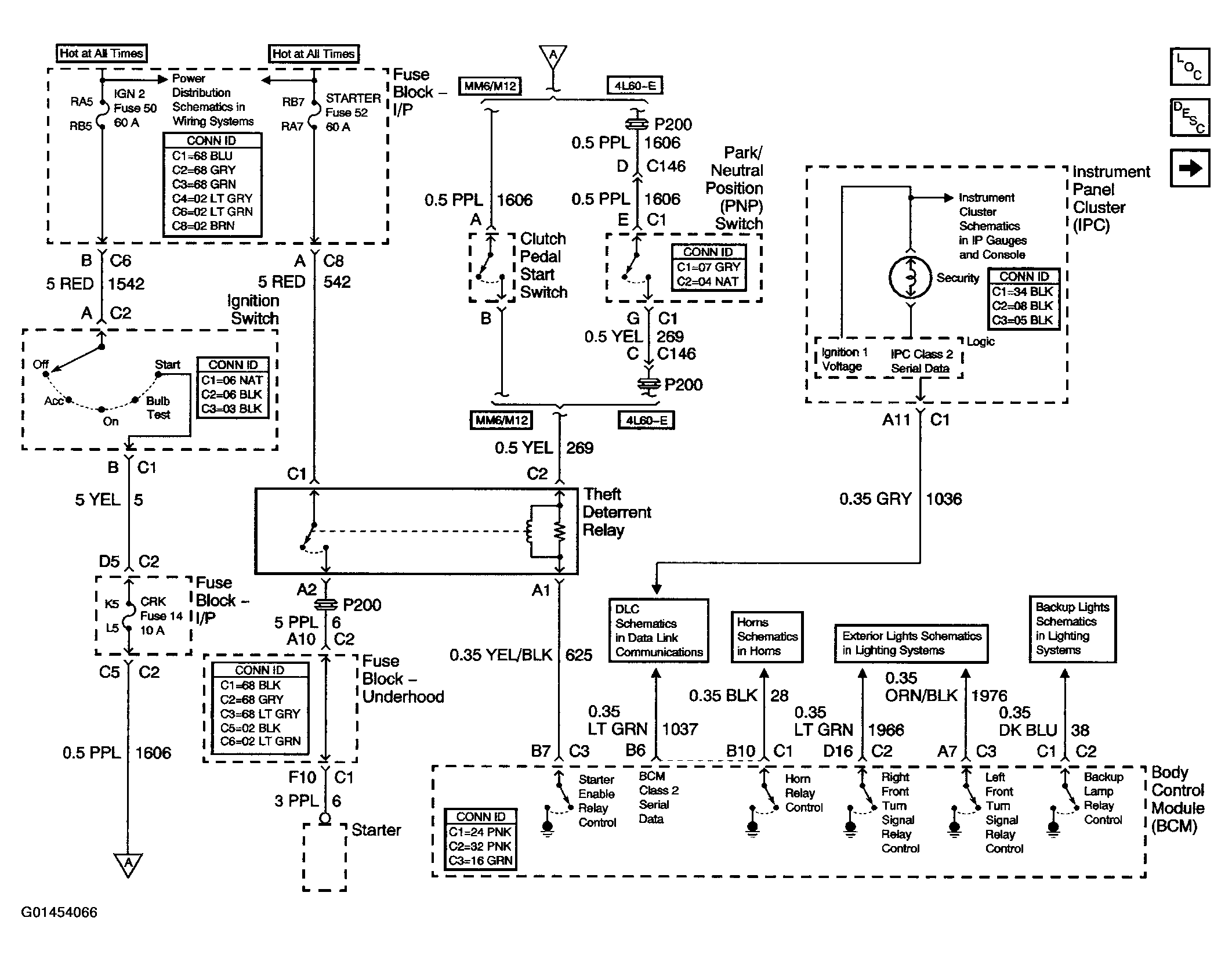

Fig 1: Theft Deterrent System Schematics (Theft Deterrent Relay, Security Indicator, Lighting & Horn References)

Courtesy of GENERAL MOTORS CORP.

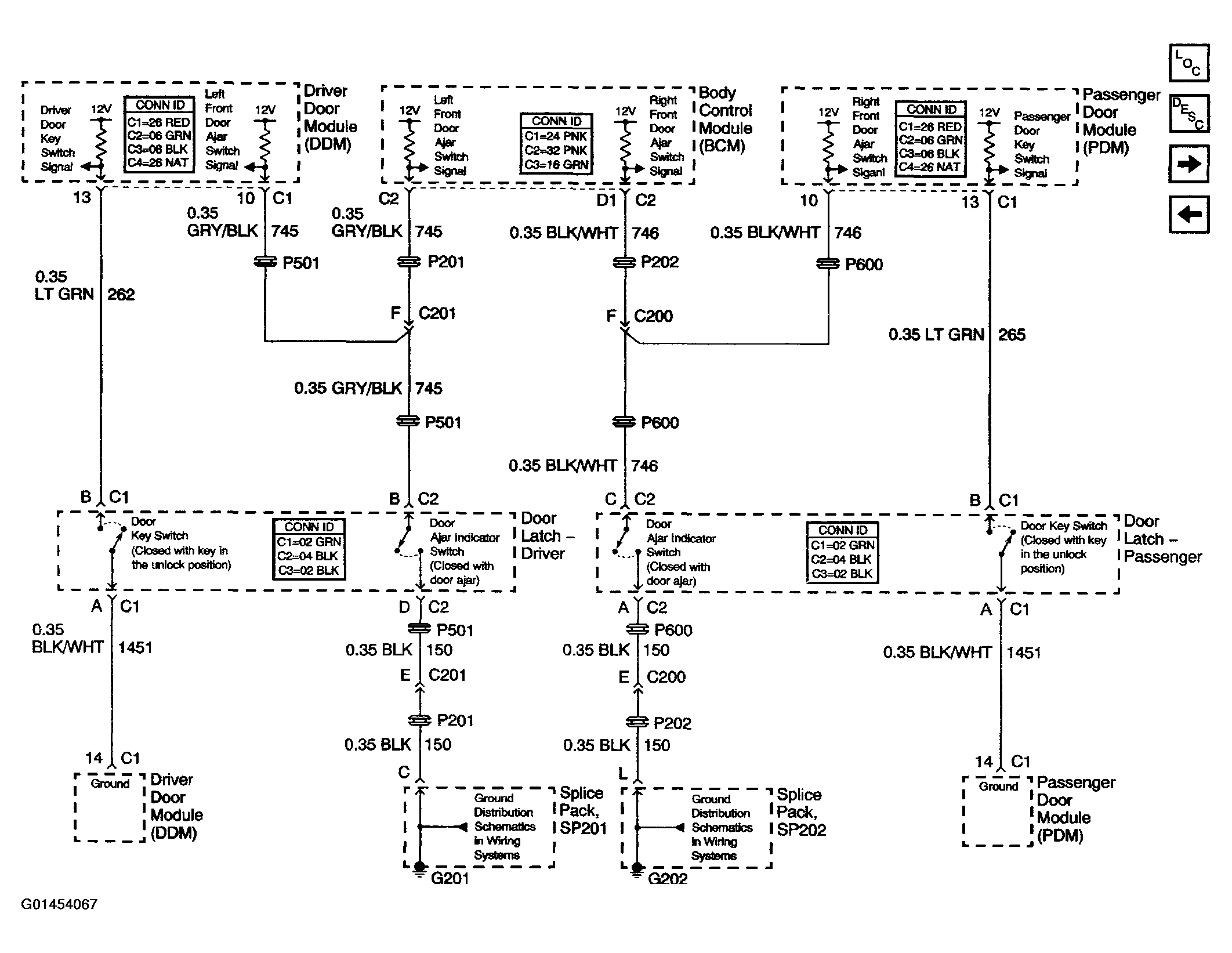

Fig 2: Theft Deterrent System Schematics (Door Signals)

Courtesy of GENERAL MOTORS CORP.

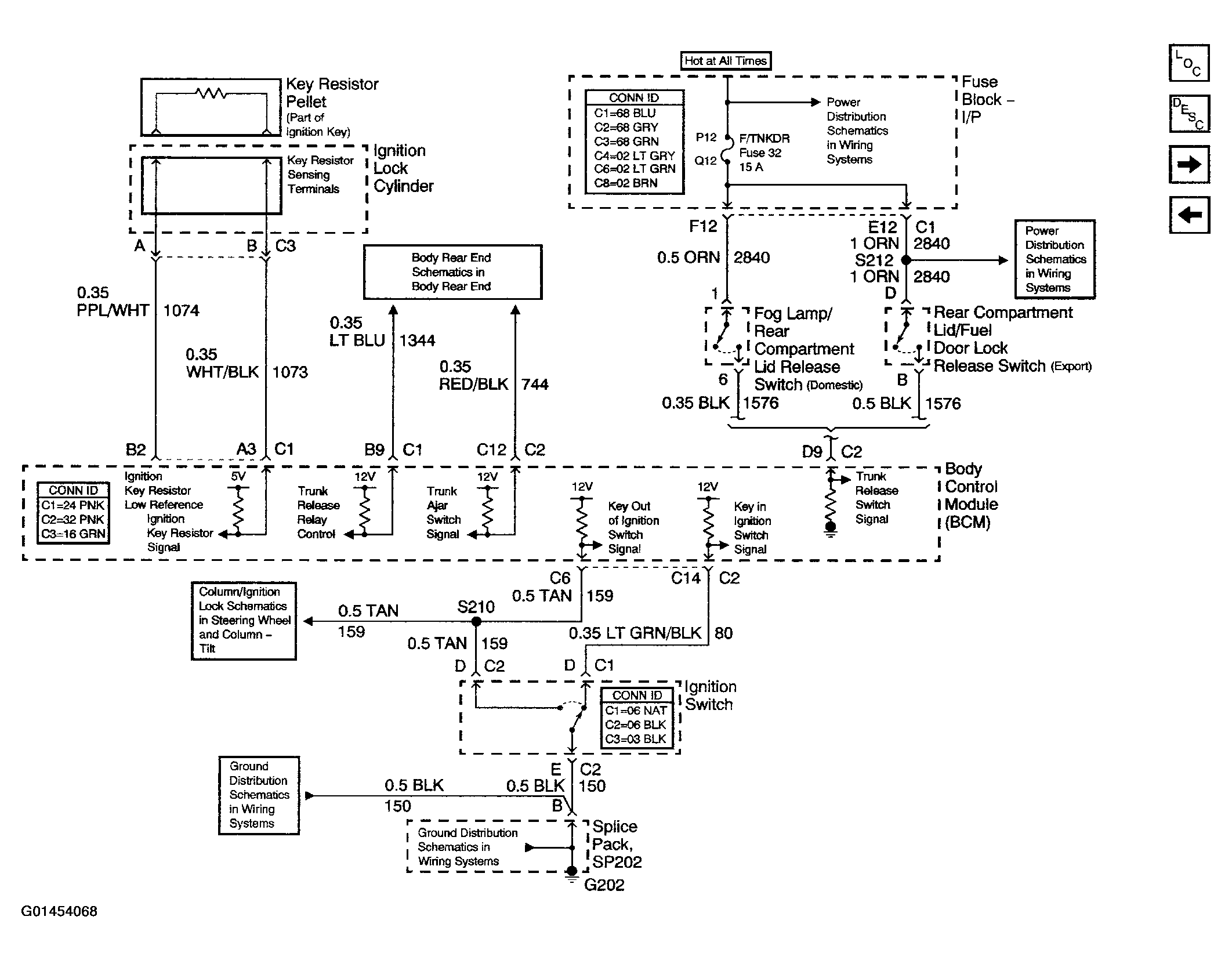

Fig 3: Theft Deterrent System Schematics (Ignition Key Signals & Trunk Release Switch Signal)

Courtesy of GENERAL MOTORS CORP.

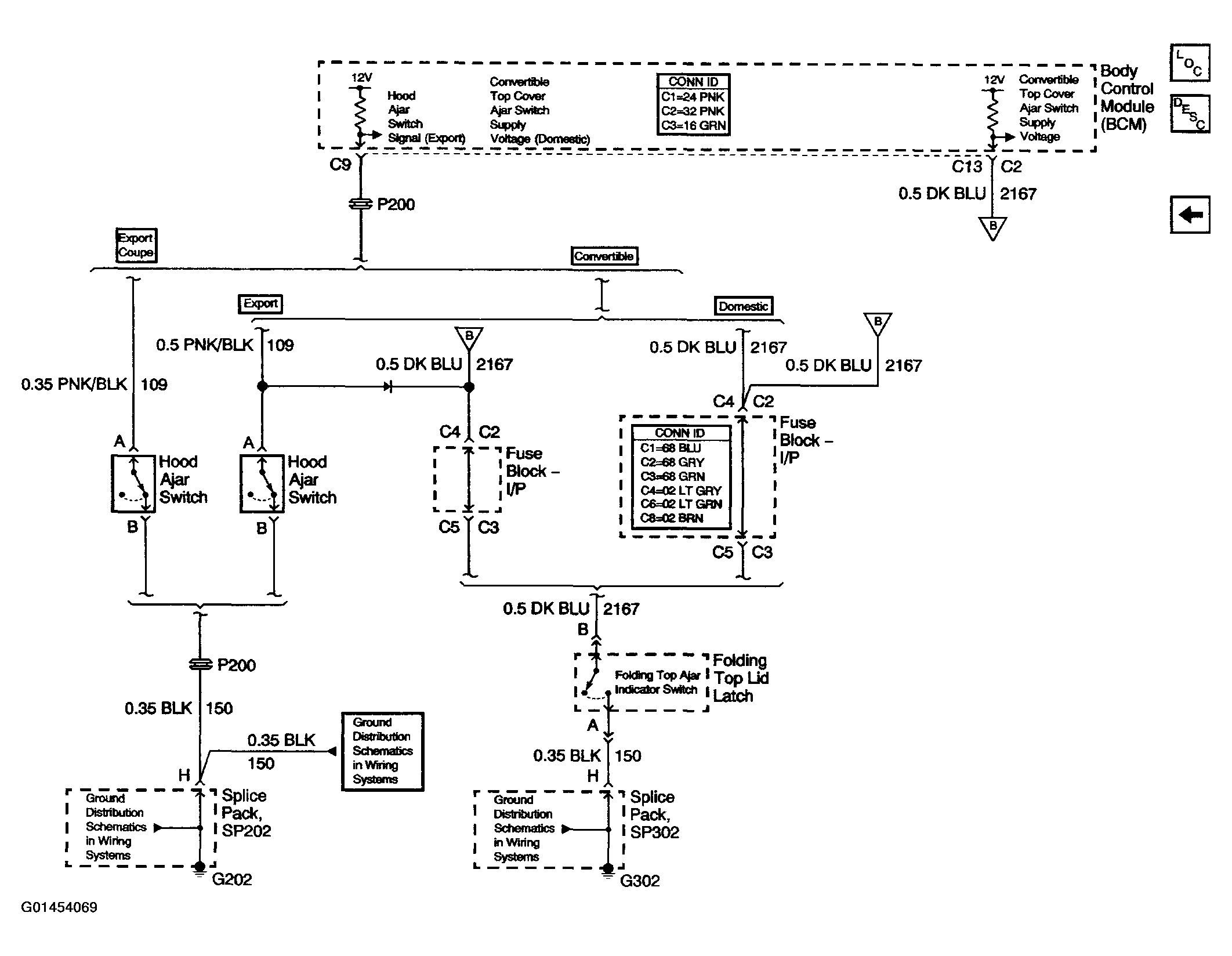

Fig 4: Theft Deterrent System Schematics (Hood Ajar Switch Signal & Convertible Top Cover Ajar Switch Supply Voltage)

Courtesy of GENERAL MOTORS CORP.
