Scan Tool Data List

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

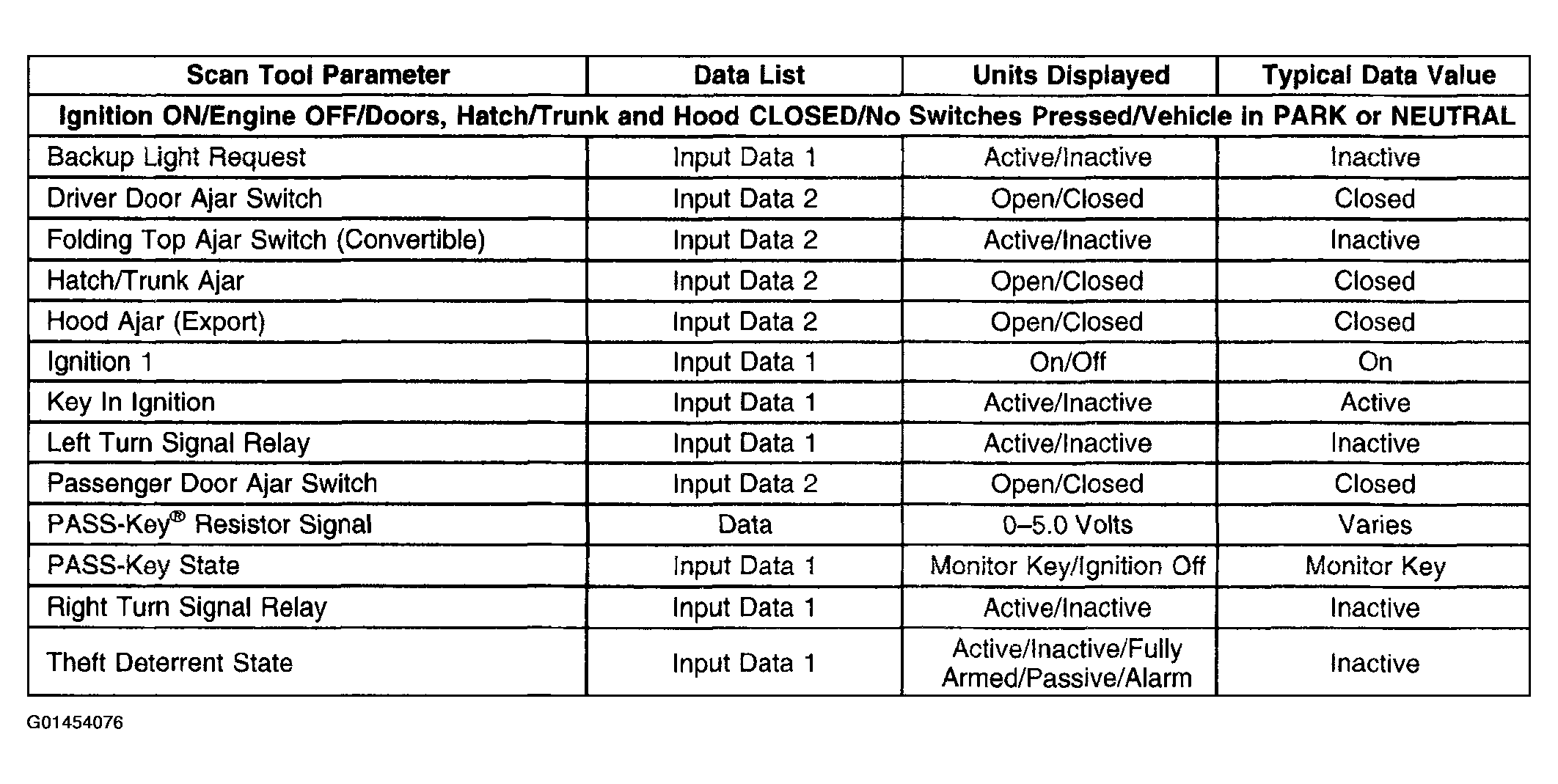

Fig 1: Body Control Module (BCM)

Courtesy of GENERAL MOTORS CORP.

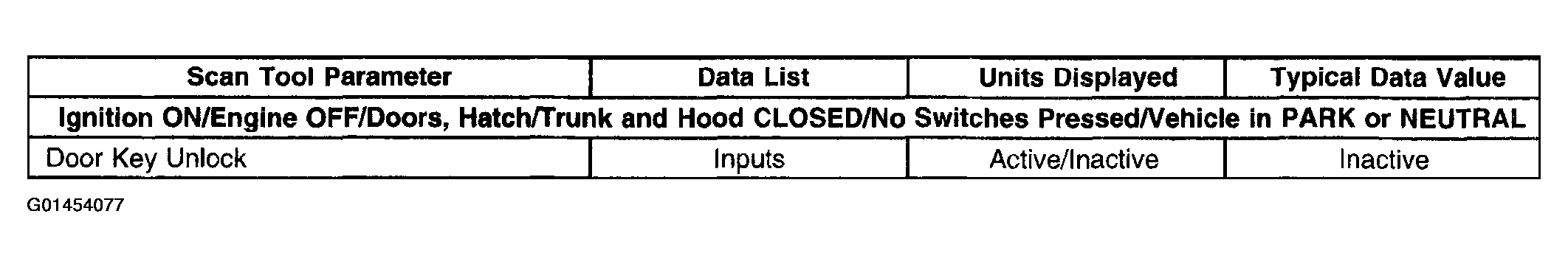

Fig 2: Driver Door Module (DDM)

Courtesy of GENERAL MOTORS CORP.

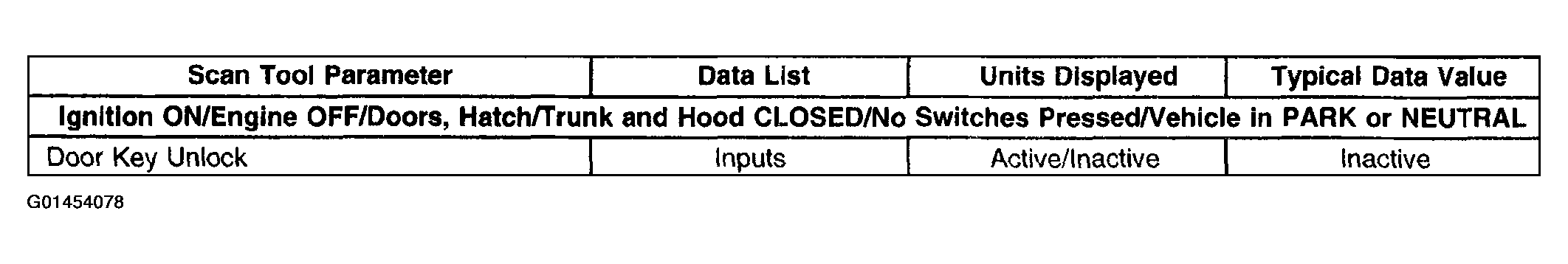

Fig 3: Passenger Door Module (PDM)

Courtesy of GENERAL MOTORS CORP.

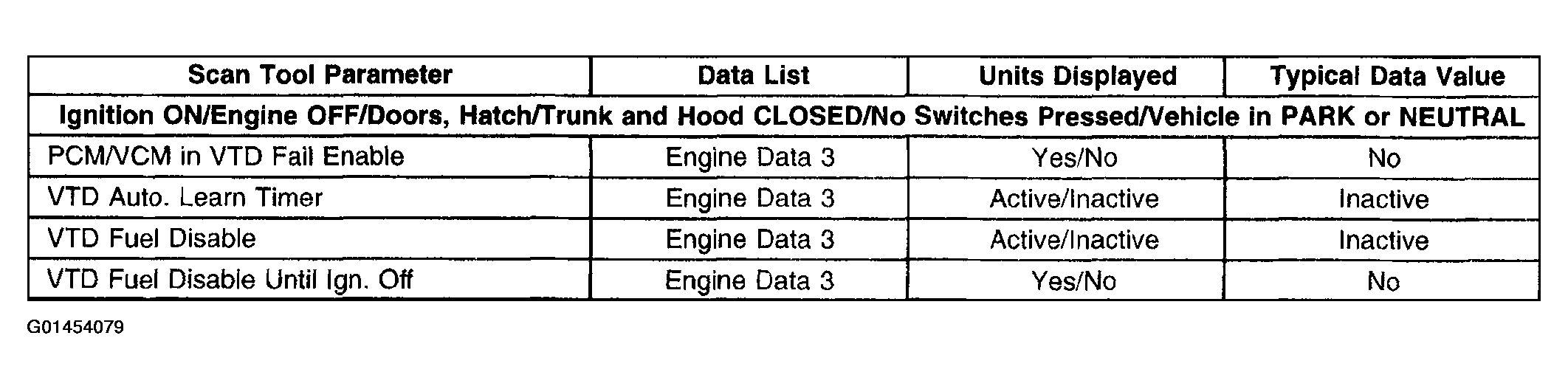

Fig 4: Powertrain Control Module (PCM)

Courtesy of GENERAL MOTORS CORP.
