Test Description

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. This test verifies the integrity of the key resistor circuits between the ignition switch and the BCM.

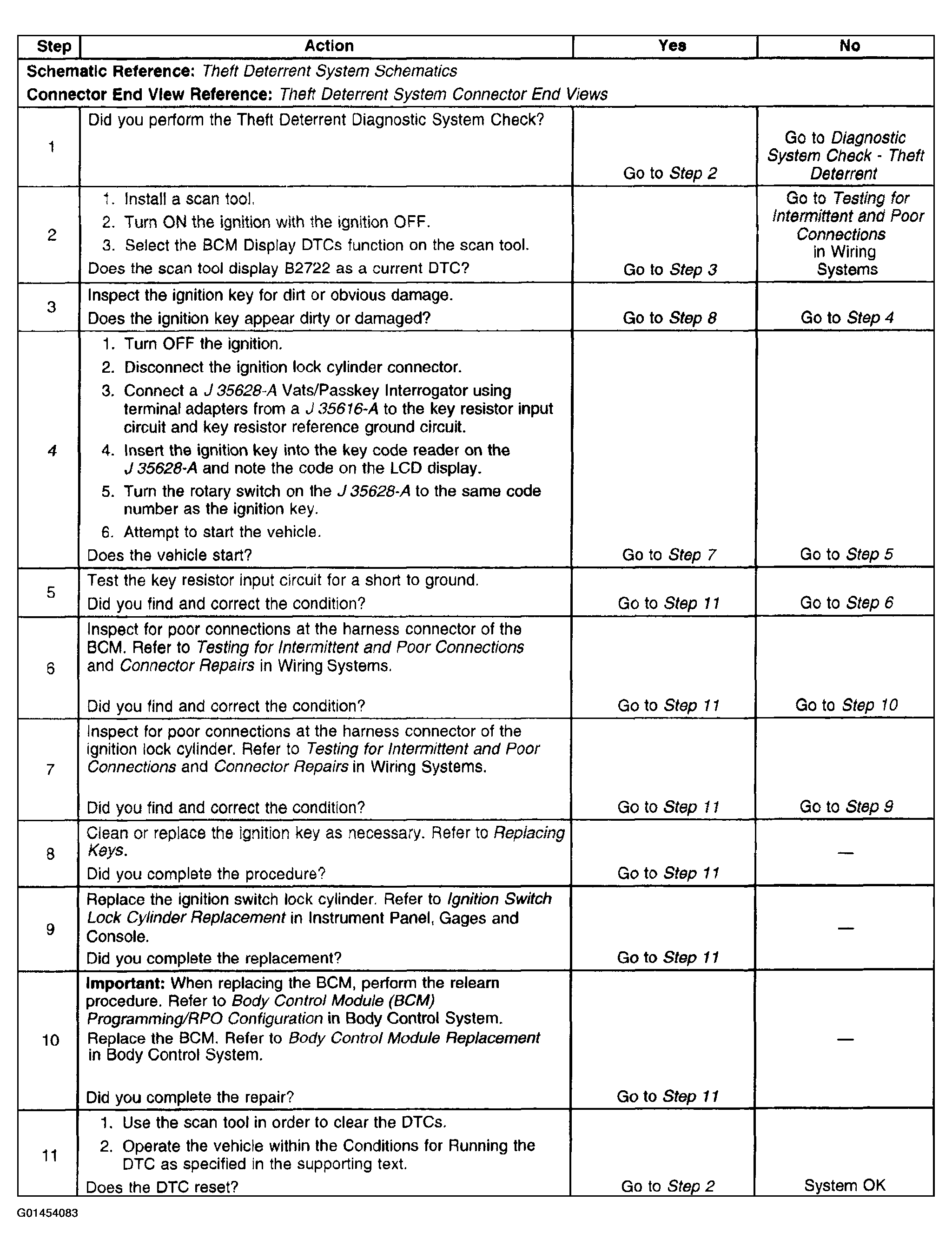

    Fig 1: DTC B2722
    G01454083Courtesy of GENERAL MOTORS CORP.
