Symptom List

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom:

See Fig 1
See Fig 2

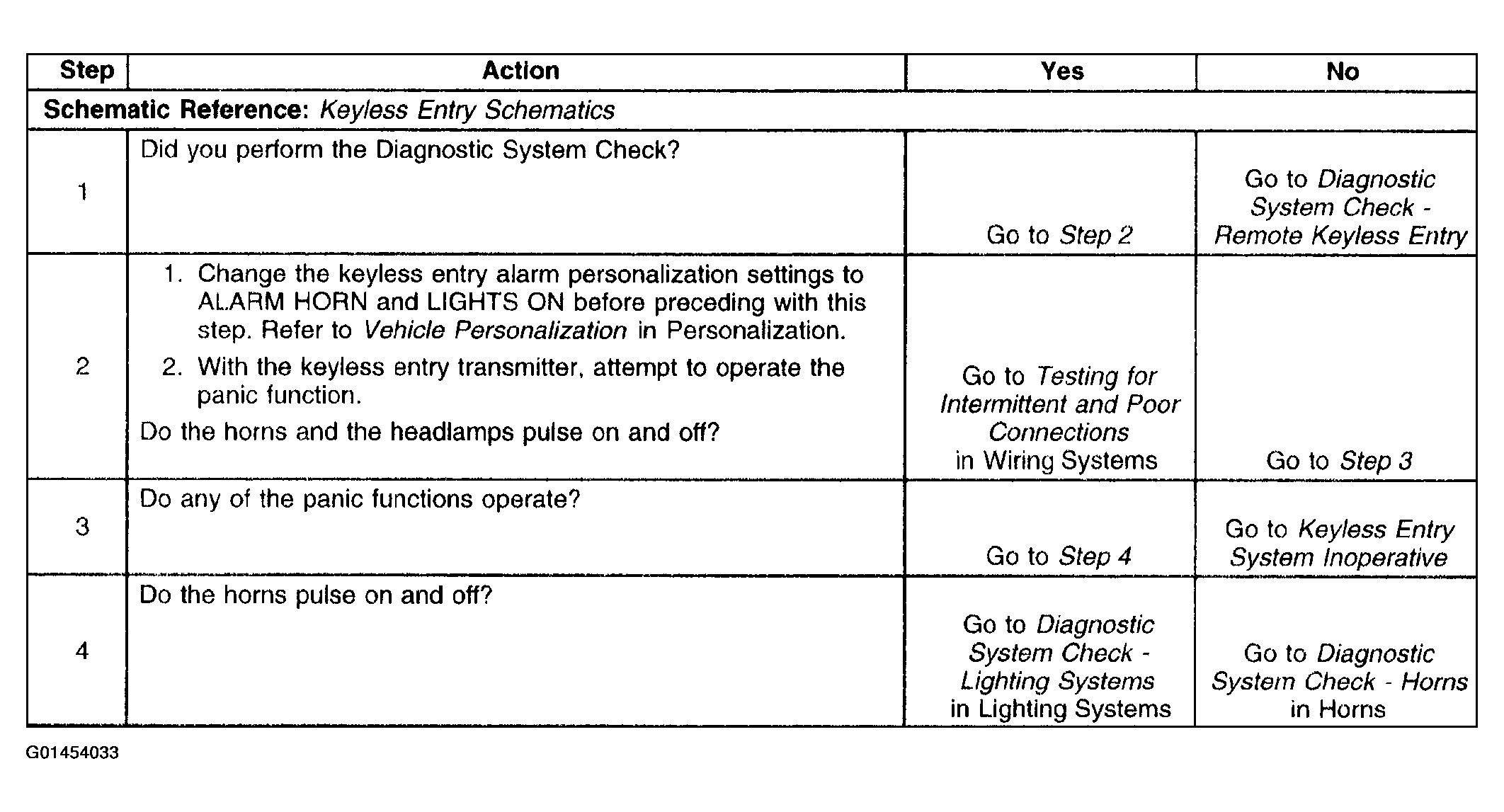

Fig 1: Panic Mode Inoperative
Courtesy of GENERAL MOTORS CORP.

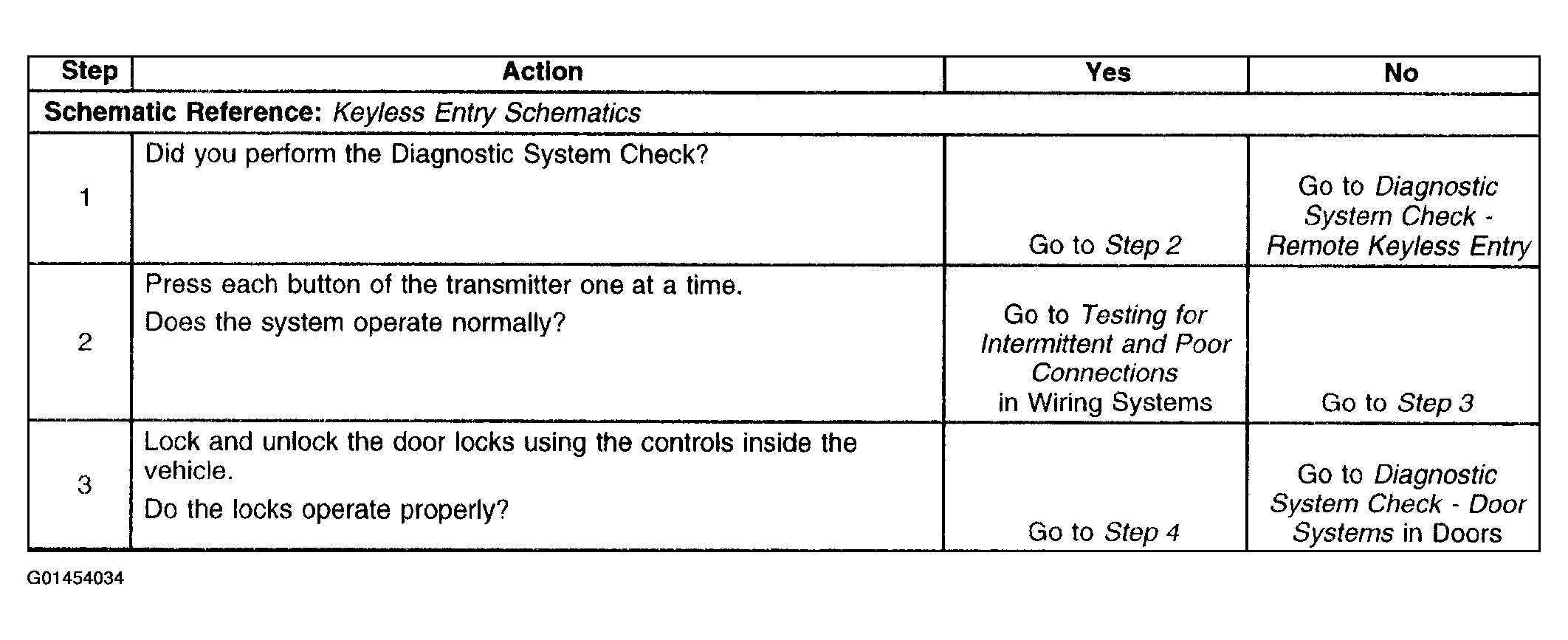

Fig 2: Keyless Entry System Inoperative (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

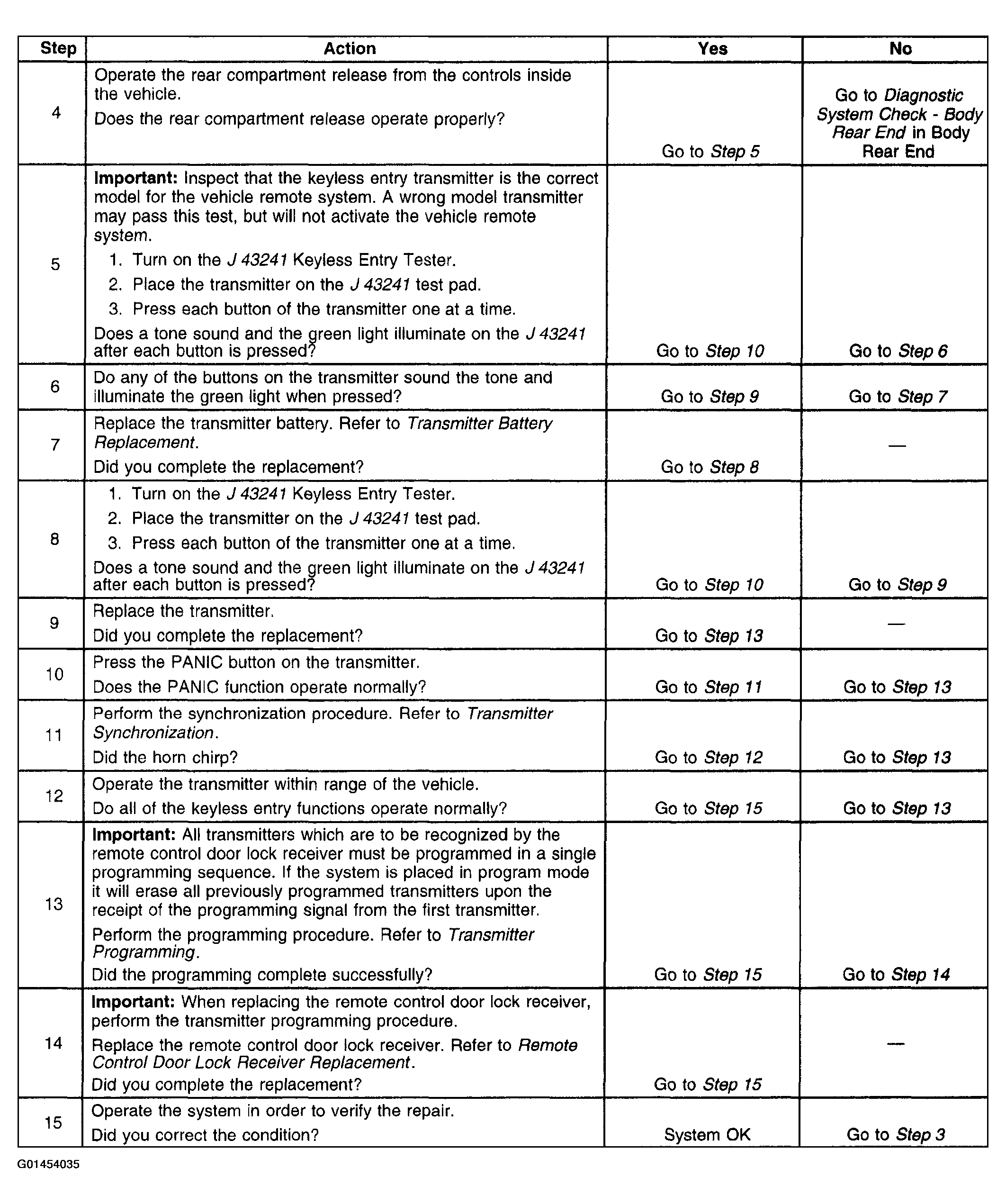

Fig 3: Keyless Entry System Inoperative (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
