Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

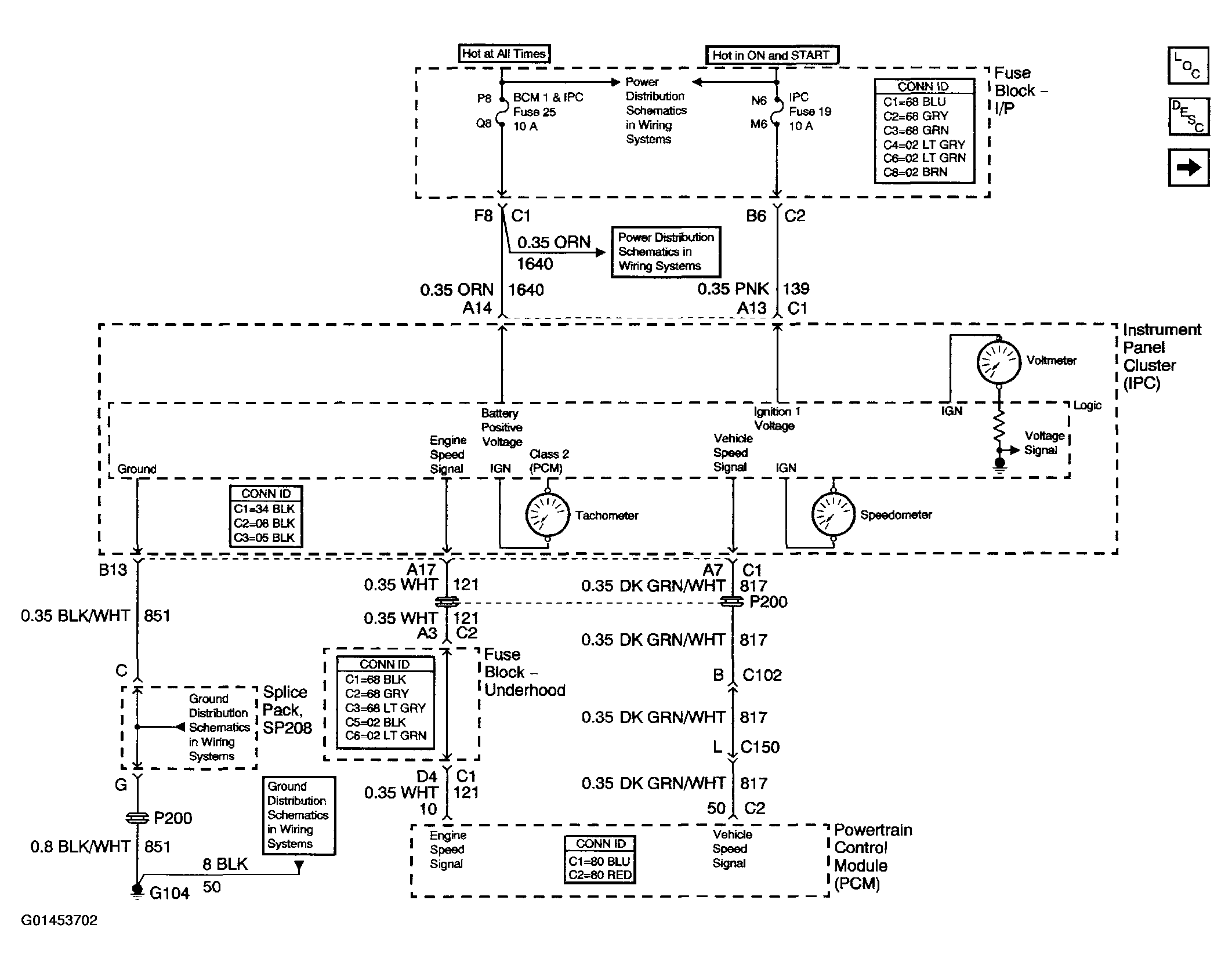

Fig 1: Instrument Cluster Schematic (Power, Ground, Tachometer & Speedometer)

Courtesy of GENERAL MOTORS CORP.

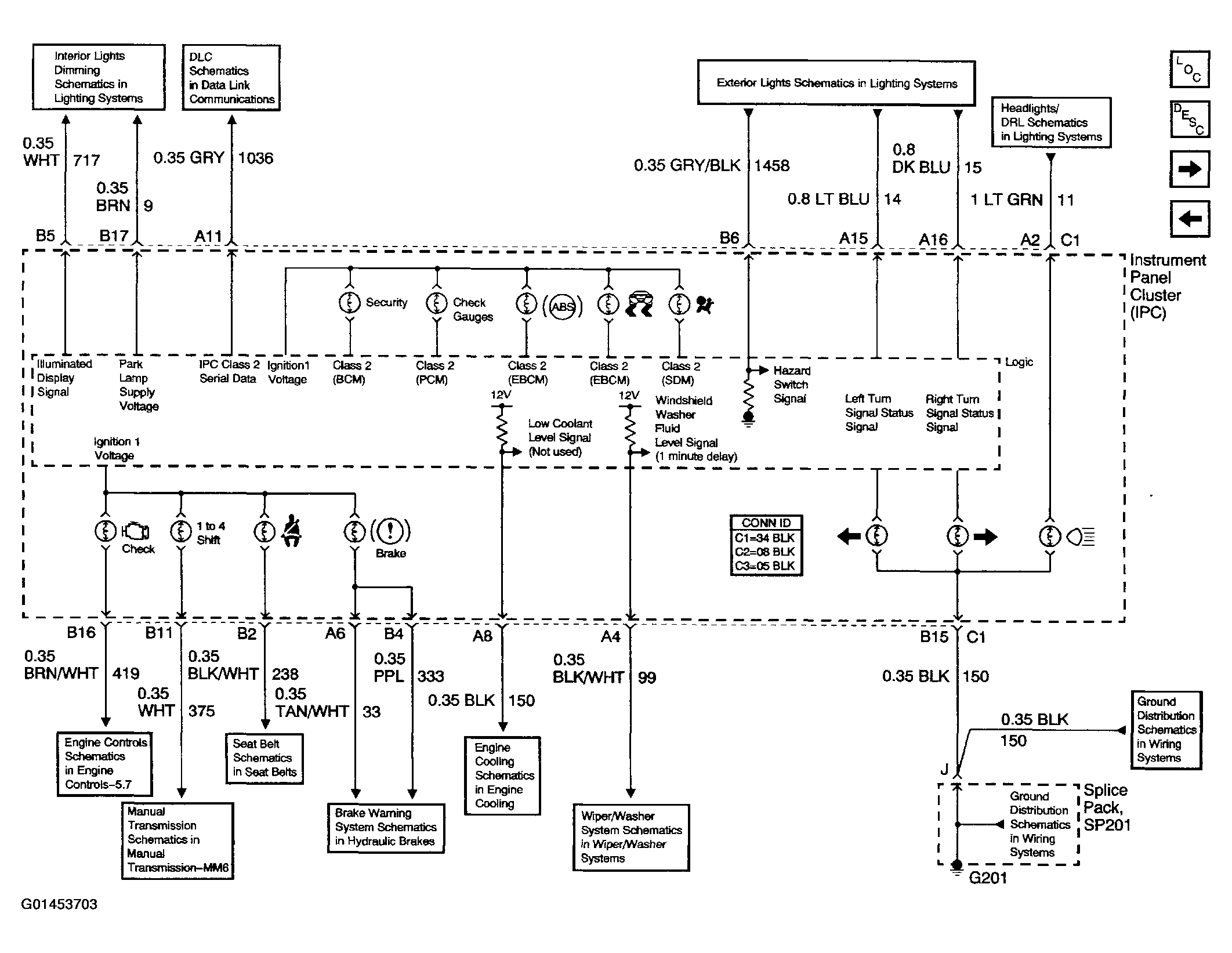

Fig 2: Instrument Cluster Schematic (Indicators)

Courtesy of GENERAL MOTORS CORP.

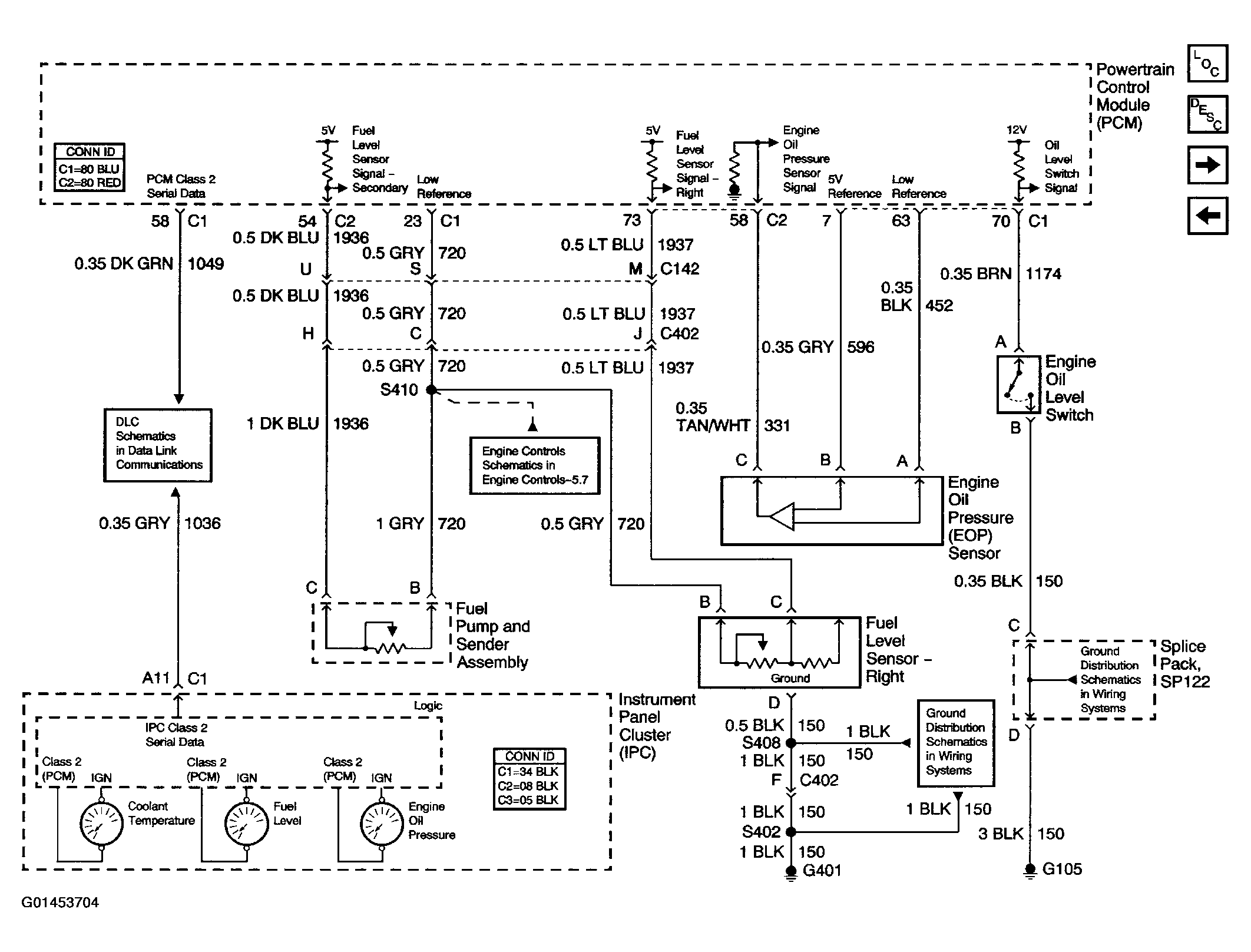

Fig 3: Instrument Cluster Schematic (Temperature, Fuel Level (W/O FFS) & Oil Pressure Gauges)

Courtesy of GENERAL MOTORS CORP.

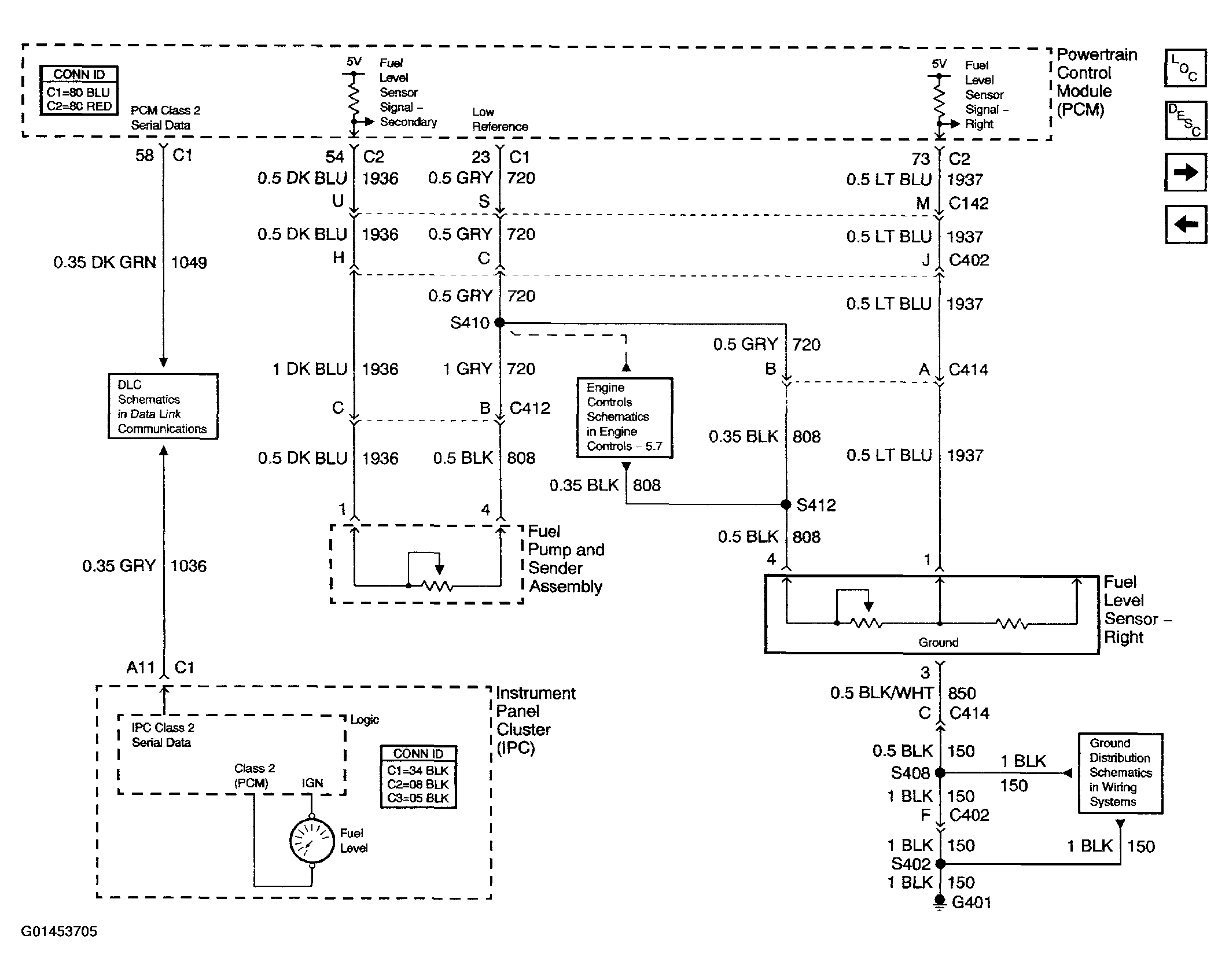

Fig 4: Instrument Cluster Schematic (Fuel Level Signals (W/FFS))

Courtesy of GENERAL MOTORS CORP.

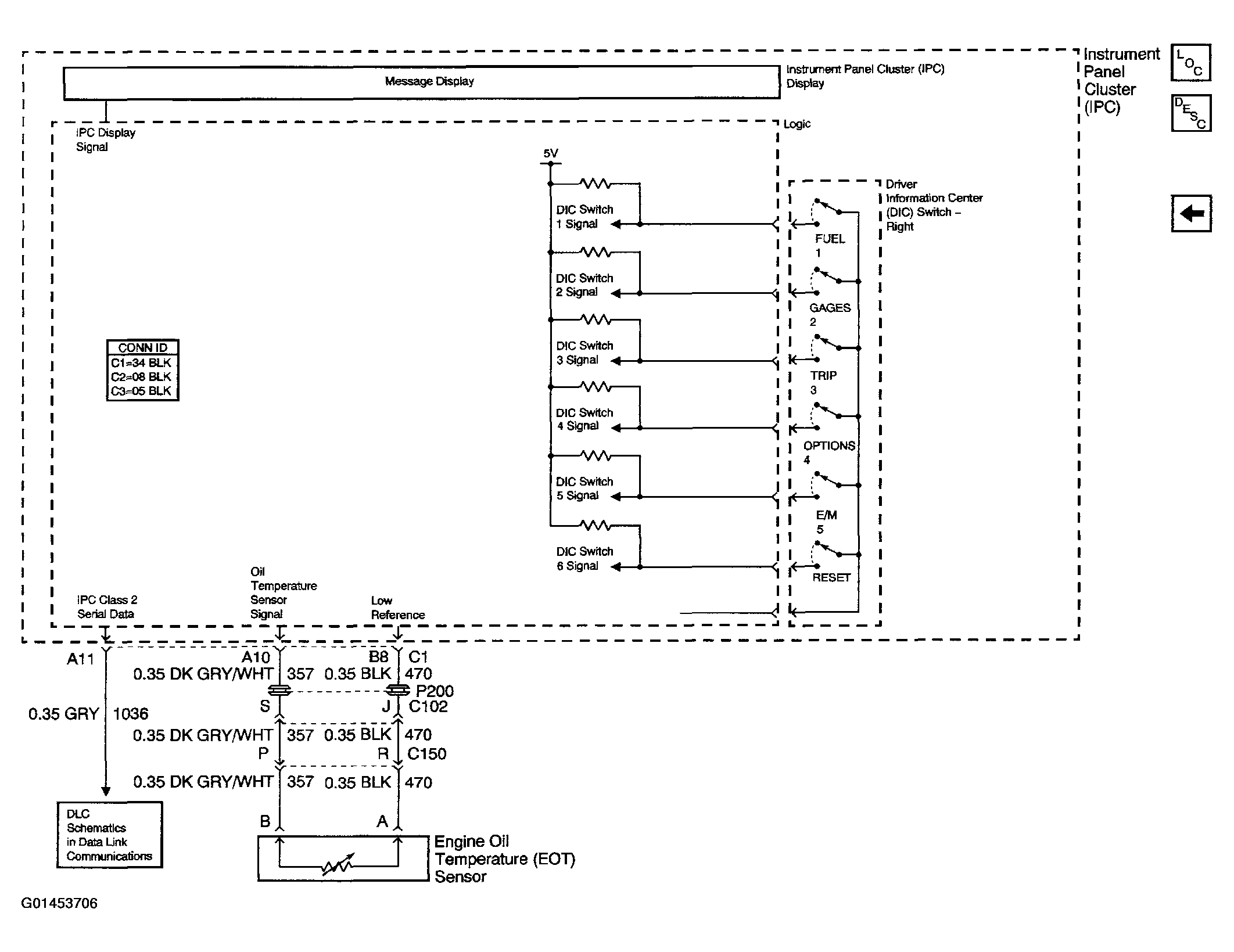

Fig 5: Instrument Cluster Schematic (Driver Information Center, Engine Oil Temperature Gauge Sensor & Dimmer Switch)

Courtesy of GENERAL MOTORS CORP.

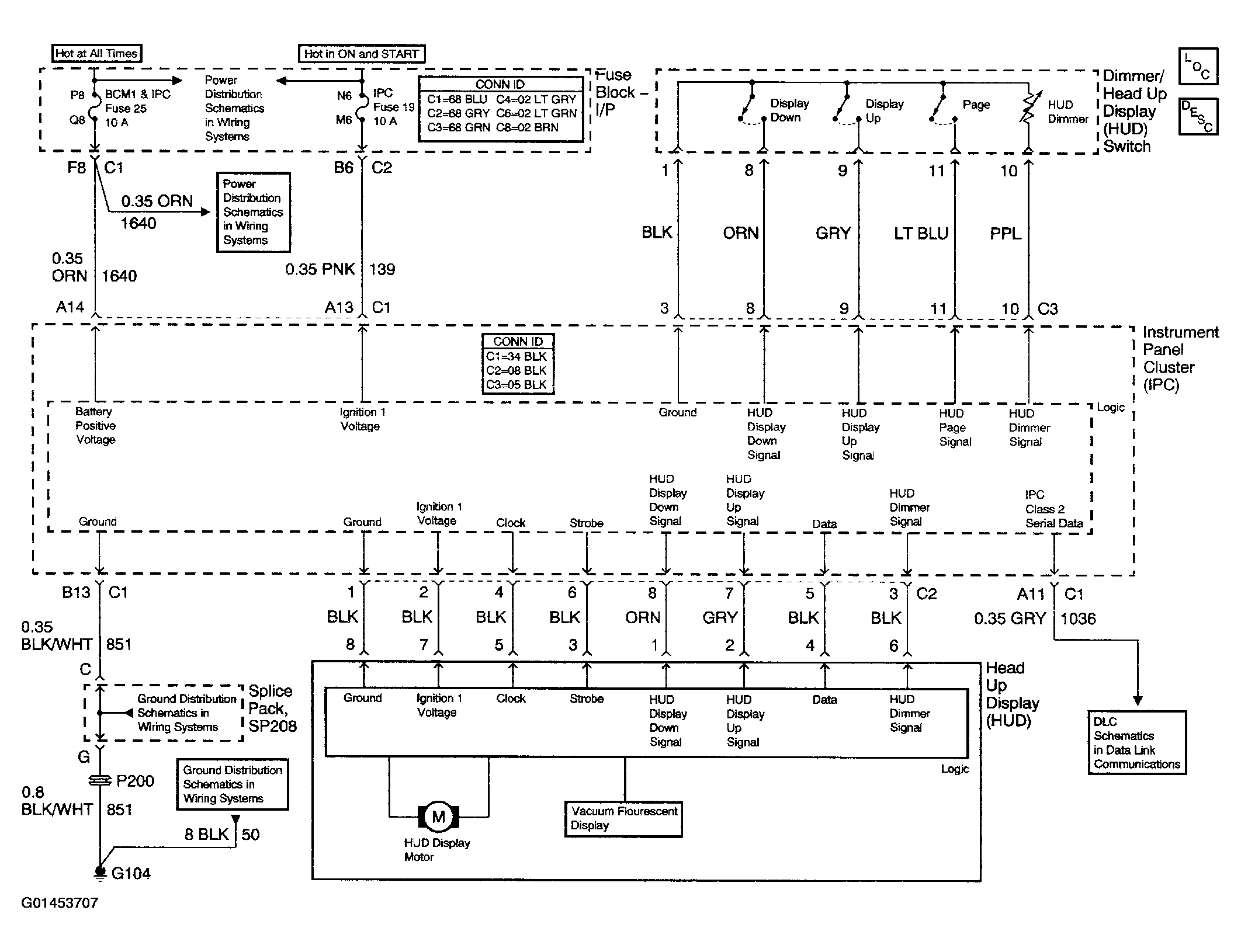

Fig 6: Head Up Display Schematic

Courtesy of GENERAL MOTORS CORP.

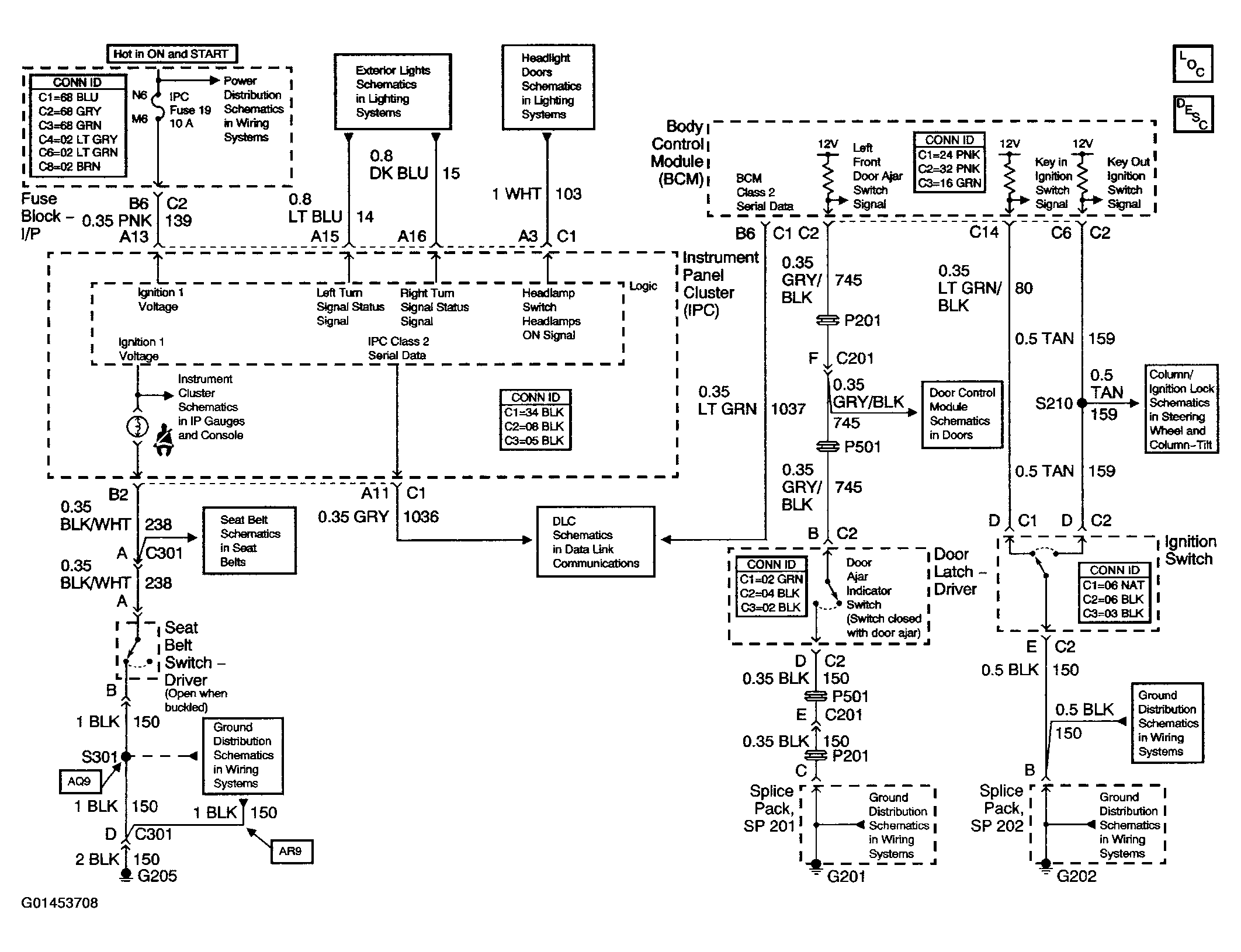

Fig 7: Audible Warnings Schematic

Courtesy of GENERAL MOTORS CORP.
