Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console. Refer to CONSOLE REPLACEMENT .
  2. Remove the IP accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY .
  3. Remove the fog lamp, rear compartment lid release switch.
    1. Pry carefully at the lower edge of the switch to release the locking tab.
    2. Disconnect the electrical connector from the switch.

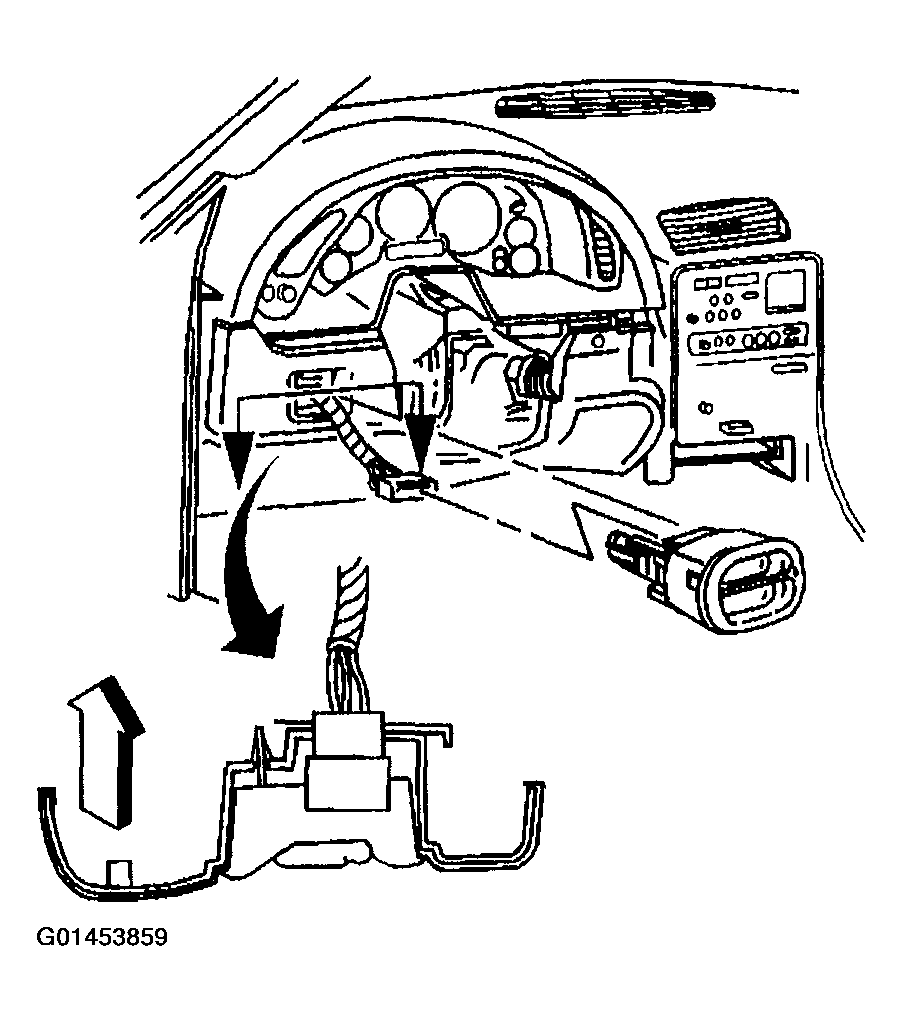

      Fig 1: Removing Fog Lamp, Rear Compartment Lid Release Switch
      G01453859Courtesy of GENERAL MOTORS CORP.
  4. Remove the driver knee bolster trim panel retaining screw behind the fog lamp, rear compartment lid release switch.
  5. Remove the driver knee bolster trim panel lower retaining screws.
  6. Grasp the trim panel at the side edges.
  7. Pull firmly rearward to release the locking tabs.
  8. Disconnect the electrical connector from the inside air temperature sensor, if equipped.
  9. Remove the trim panel.

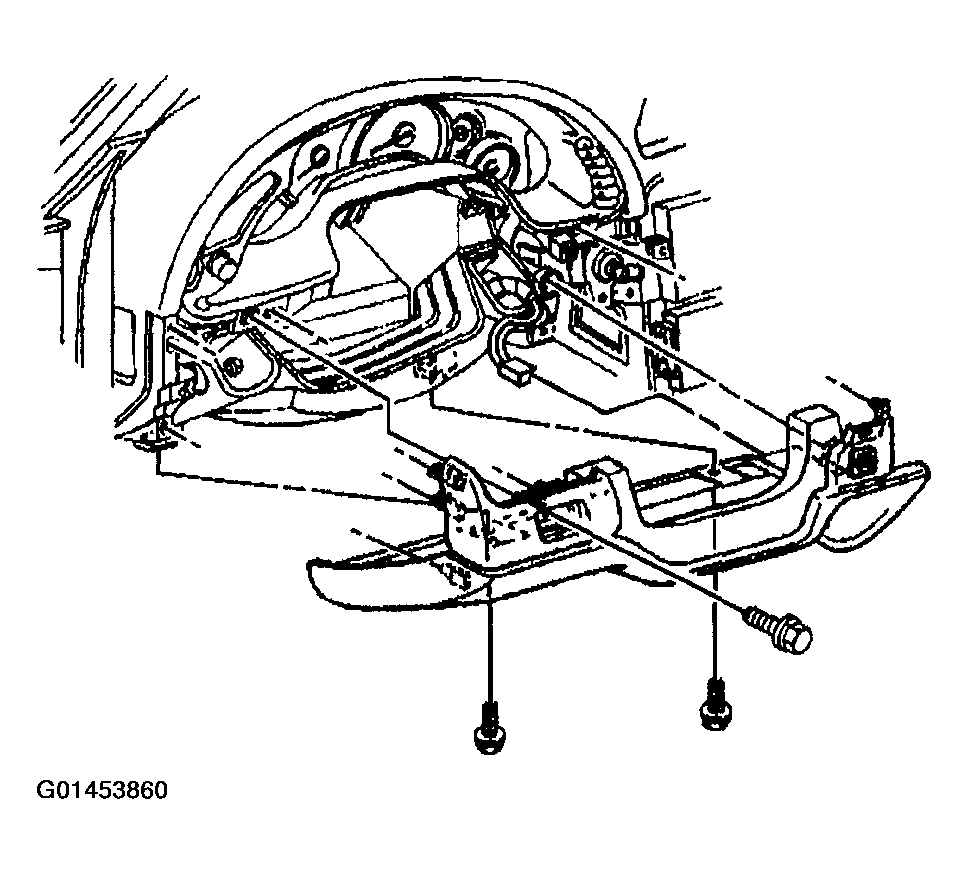

    Fig 2: Removing Driver Knee Bolster Trim Panel
    G01453860Courtesy of GENERAL MOTORS CORP.
