Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Twist to install the bulb/socket to the IPC.
Tilt the circuit board back toward its mounting position.
Tilt the board slowly, and make sure the flat wires do not become kinked or loose.
Connect the chime connector to the circuit board.
Tilt the circuit board the rest of the way to its mounting position.
Snap the circuit board tabs into place.
Install the circuit board retaining screws.
Connect the (side) electrical connector to the circuit board.

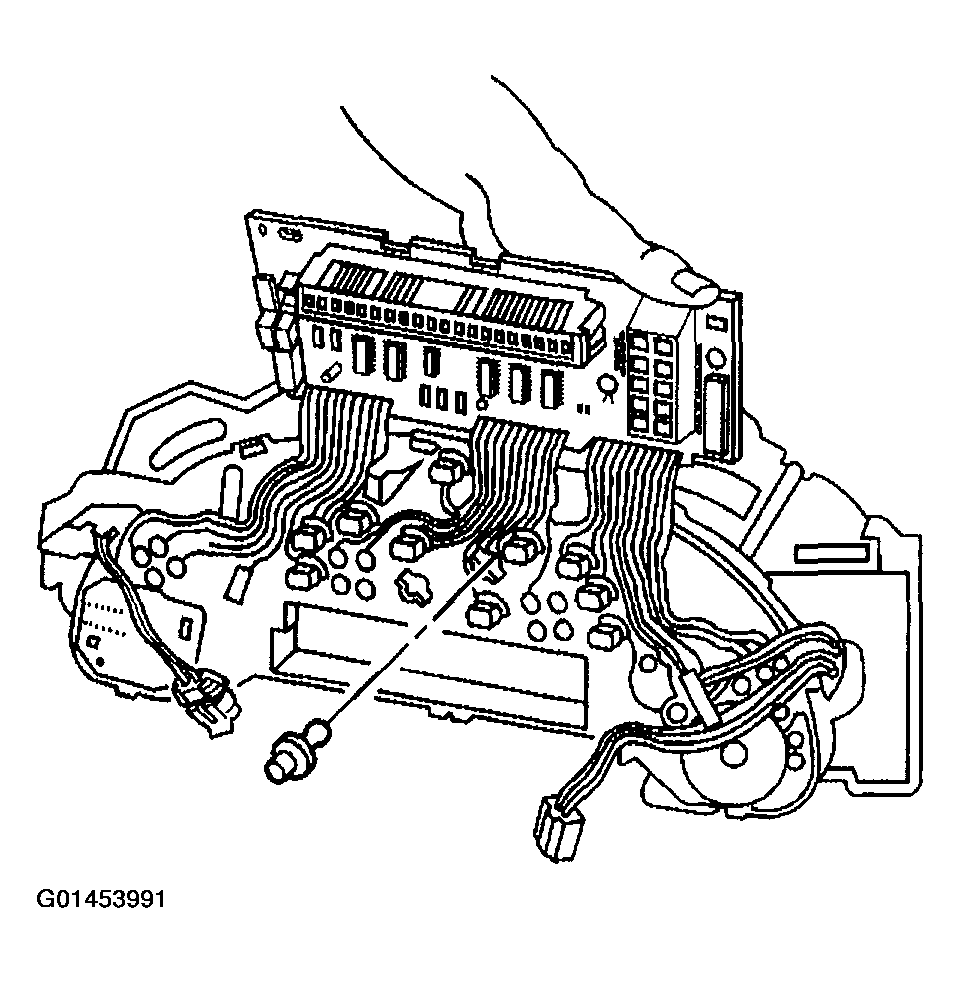

Fig 1: Installing Bulb/Socket To Instrument Panel Cluster
Courtesy of GENERAL MOTORS CORP.
Position the IPC rear cover.
Snap the IPC rear cover into place.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the IPC rear cover retaining screws.
Tighten

Tighten the IPC rear cover retaining screws to 0.7 N.m (6 lb in).
Connect the electrical connectors to the circuit board.

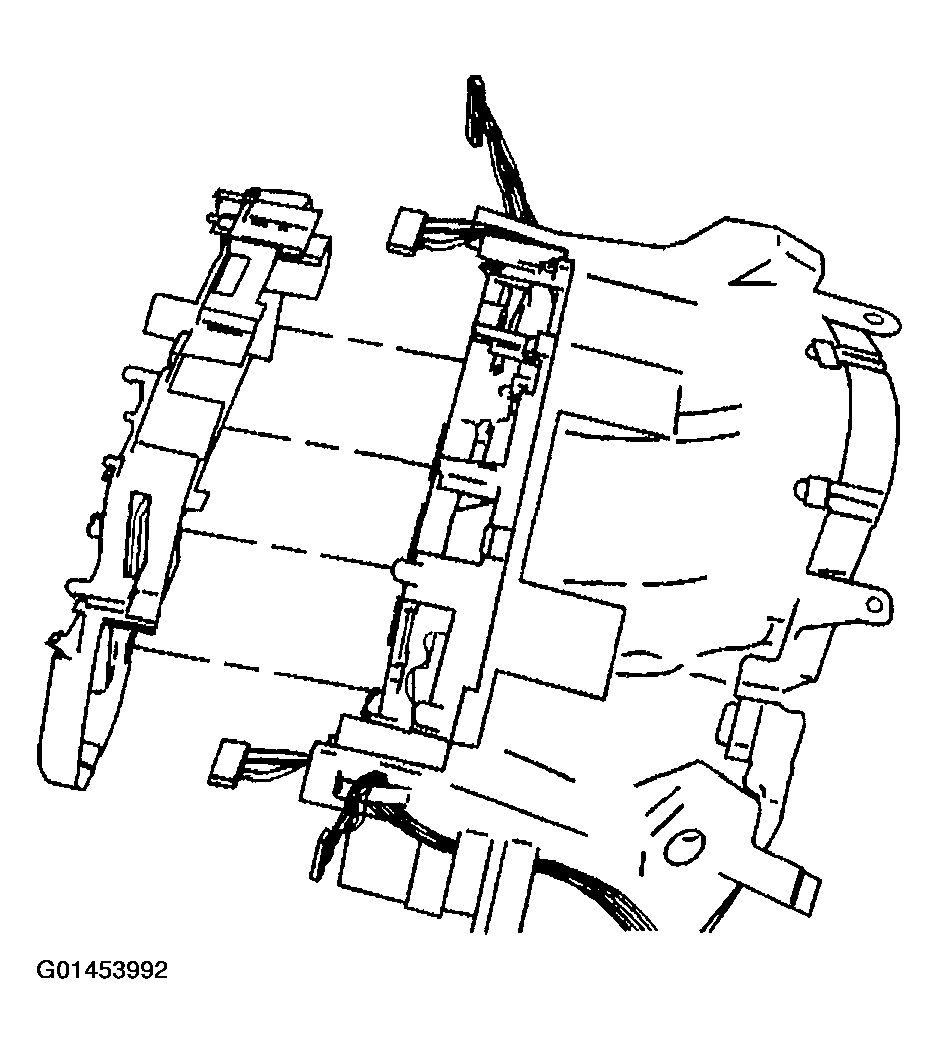

Fig 2: Installing Instrument Panel Cluster Rear Cover
Courtesy of GENERAL MOTORS CORP.
Install the UV inverter to the IPC rear cover.
Align the UV inverter onto the rear cover alignment pins.
Install the UV inverter mounting screws.
Tighten

Tighten the UV inverter mounting screws to 0.7 N.m (6 lb in).
Connect the UV inverter electrical connectors.

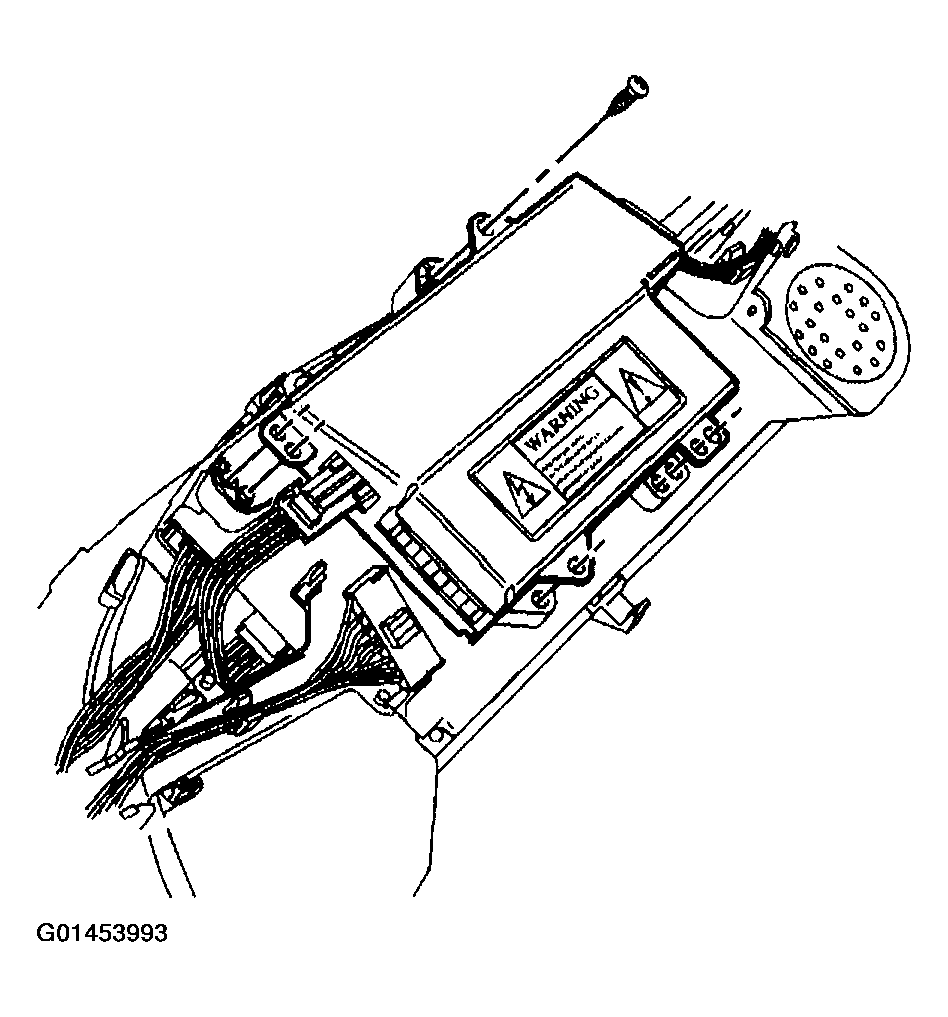

Fig 3: Installing Ultra-Violet Inverter
Courtesy of GENERAL MOTORS CORP.
Install the UV inverter wiring covers.
1. Align the covers on the alignment pins.
2. Snap the covers into place.
Install the IPC to the vehicle. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .

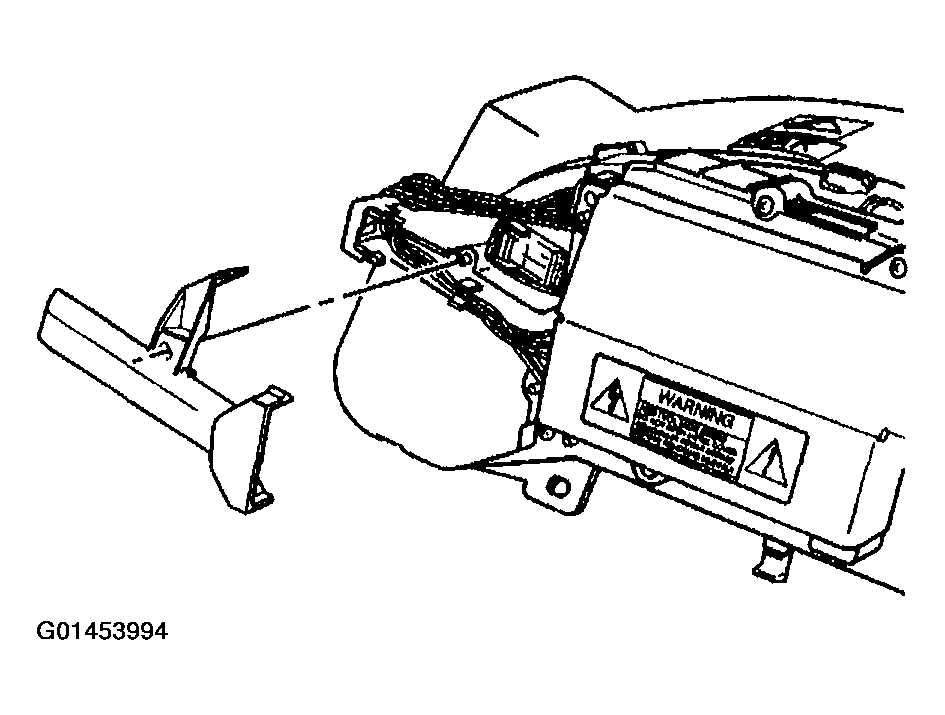

Fig 4: Installing Ultra-Violet Inverter Wiring Cover
Courtesy of GENERAL MOTORS CORP.
