Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ignition switch housing bracket into position as marked prior to removal.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts retaining the ignition switch housing bracket to the IP center support bracket.

    Tighten

    Tighten the ignition switch housing bracket to IP center support bracket bolts to 12 N.m (106 lb in).

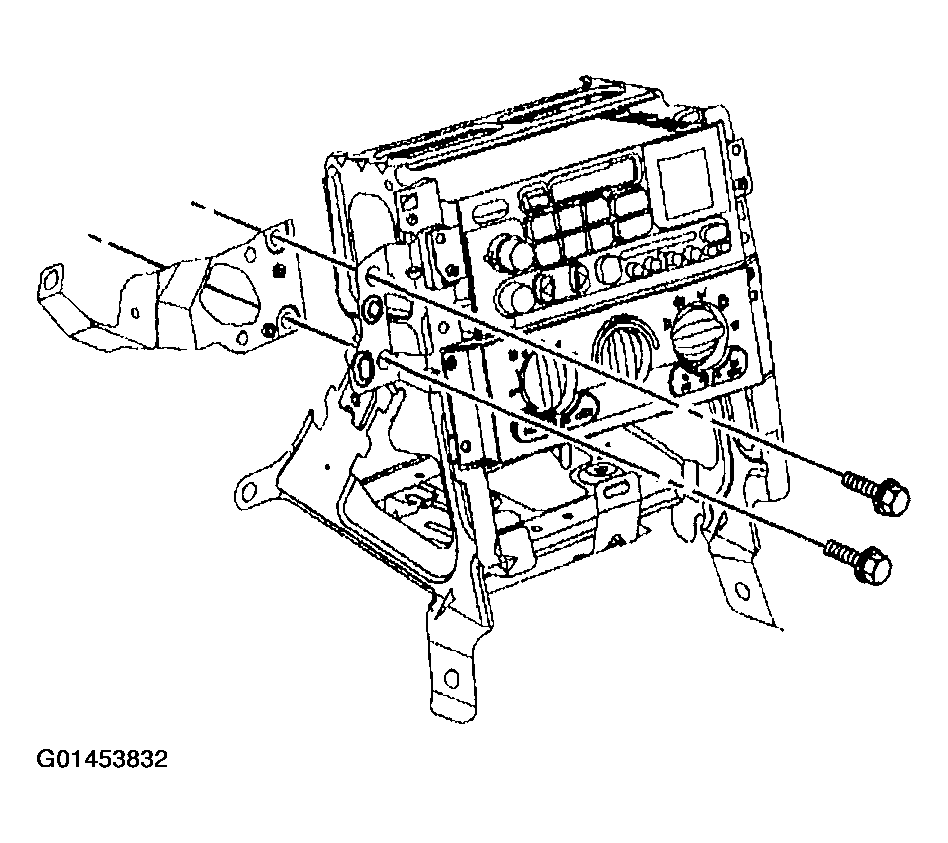

    Fig 1: Installing Ignition Switch Housing Bracket
    G01453832Courtesy of GENERAL MOTORS CORP.
  3. Install the bolt retaining the ignition switch housing bracket to the steering column bracket.

    Tighten

    Tighten the ignition switch housing bracket to steering column bracket bolt to 1.9 N.m (17 lb in).

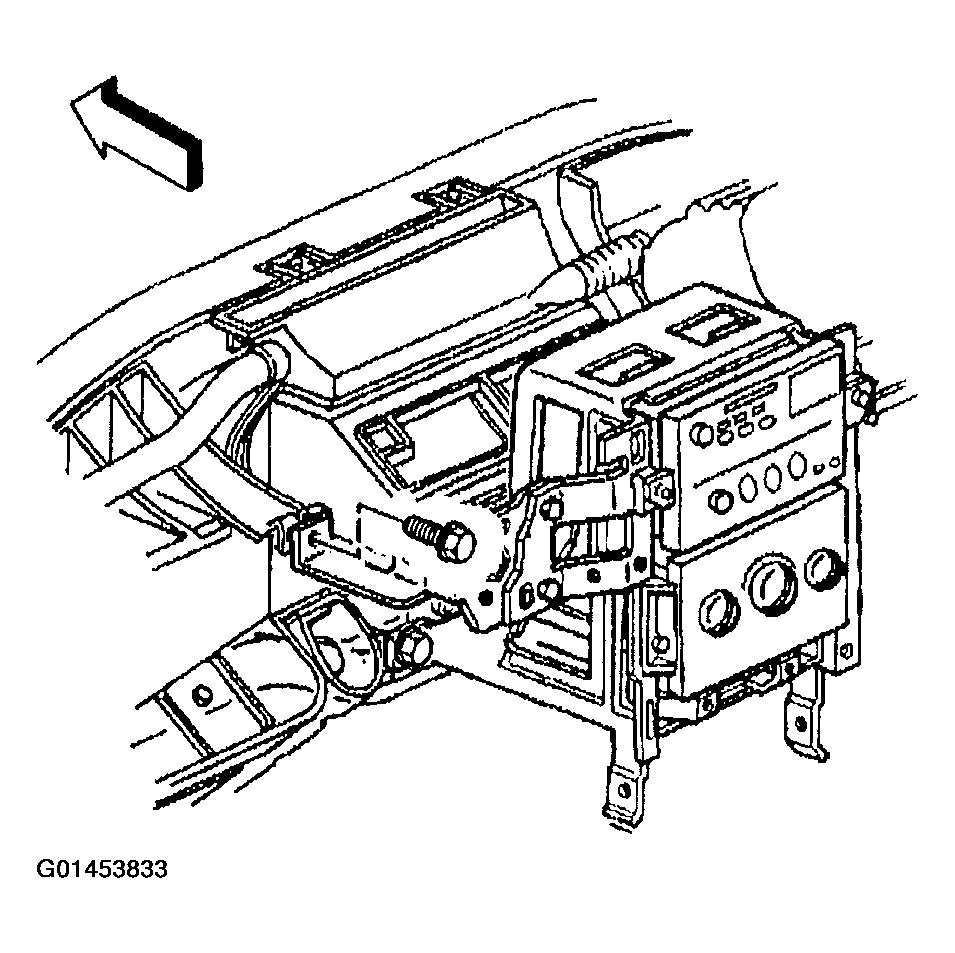

    Fig 2: Installing Bolt Retaining Ignition Switch Housing Bracket To Steering Column Bracket
    G01453833Courtesy of GENERAL MOTORS CORP.
  4. Install the inside air temperature sensor aspirator duct, if equipped.
    1. Use a twisting motion to secure the duct to the duct muffler.
    2. Install the duct retaining tab to the ignition switch housing bracket.

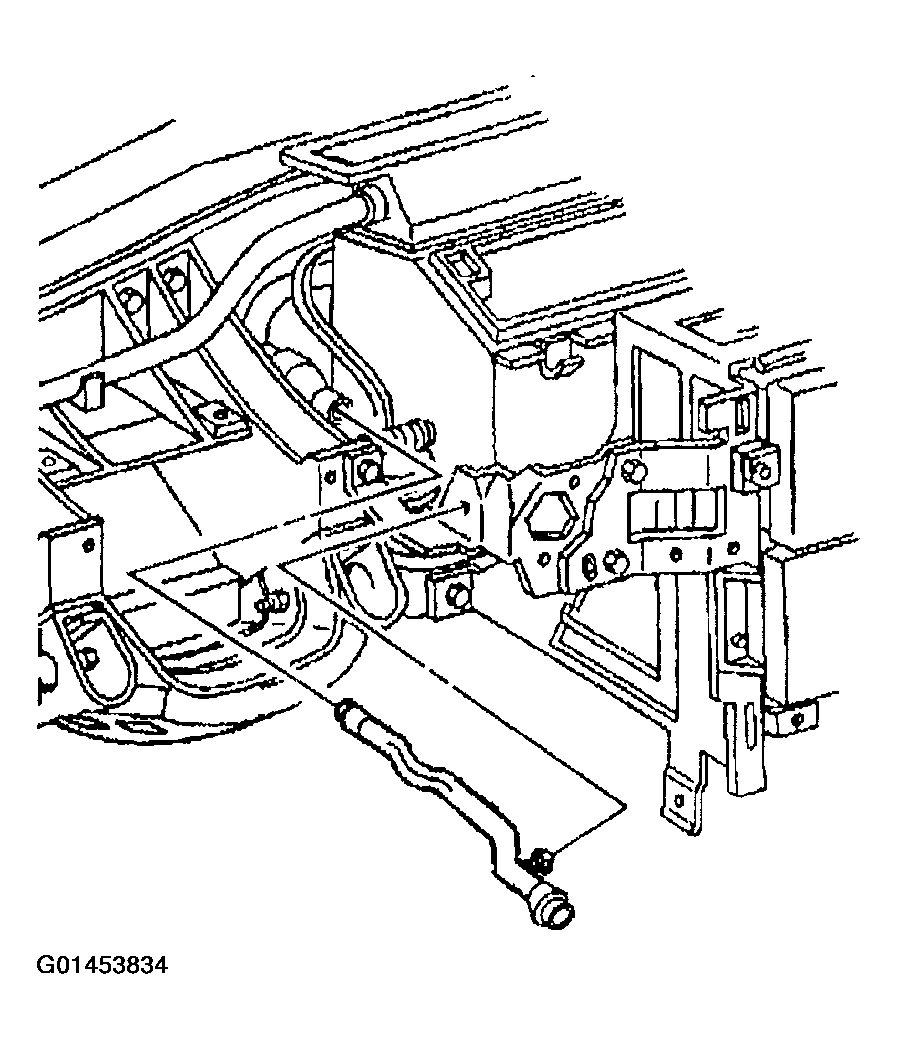

      Fig 3: Installing Inside Air Temperature Sensor Aspirator Duct
      G01453834Courtesy of GENERAL MOTORS CORP.
  5. Install the ignition switch to the ignition switch housing bracket.
  6. Install the ignition switch retaining bolts.

    Tighten

    Tighten the ignition switch retaining bolts to 5.5 N.m (49 lb in).

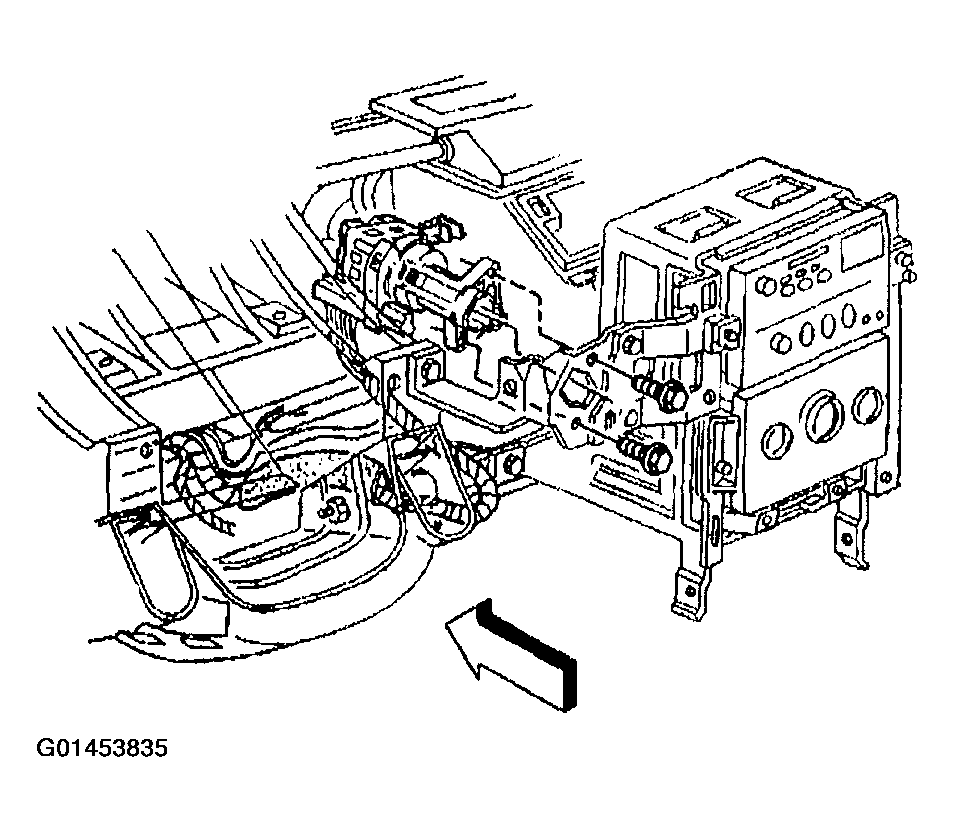

    Fig 4: Installing Ignition Switch Retaining Bolts
    G01453835Courtesy of GENERAL MOTORS CORP.
  7. Install the ignition switch lock cylinder. Refer to IGNITION SWITCH LOCK CYLINDER REPLACEMENT .
  8. Install the IP upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER .
  9. Install the driver knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER .
  10. Install the IP accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY .
  11. Install the console. Refer to CONSOLE REPLACEMENT .
