Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel cluster (IPC) from the vehicle. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT  .
  2. Disconnect the instrument panel (IP) dimmer/head-up display (HUD) switch electrical connector.

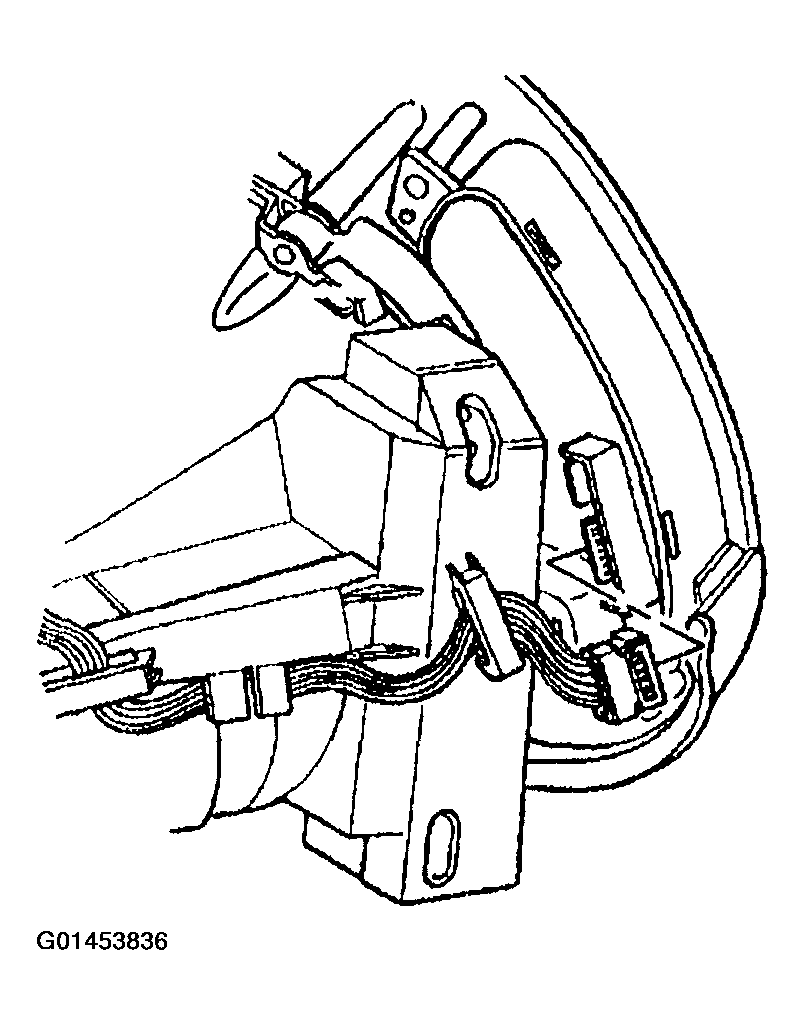

    Fig 1: Disconnecting Instrument Panel Dimmer/Head-Up Display Switch Electrical Connector
    G01453836Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the driver information center (DIC) switch electrical connector.

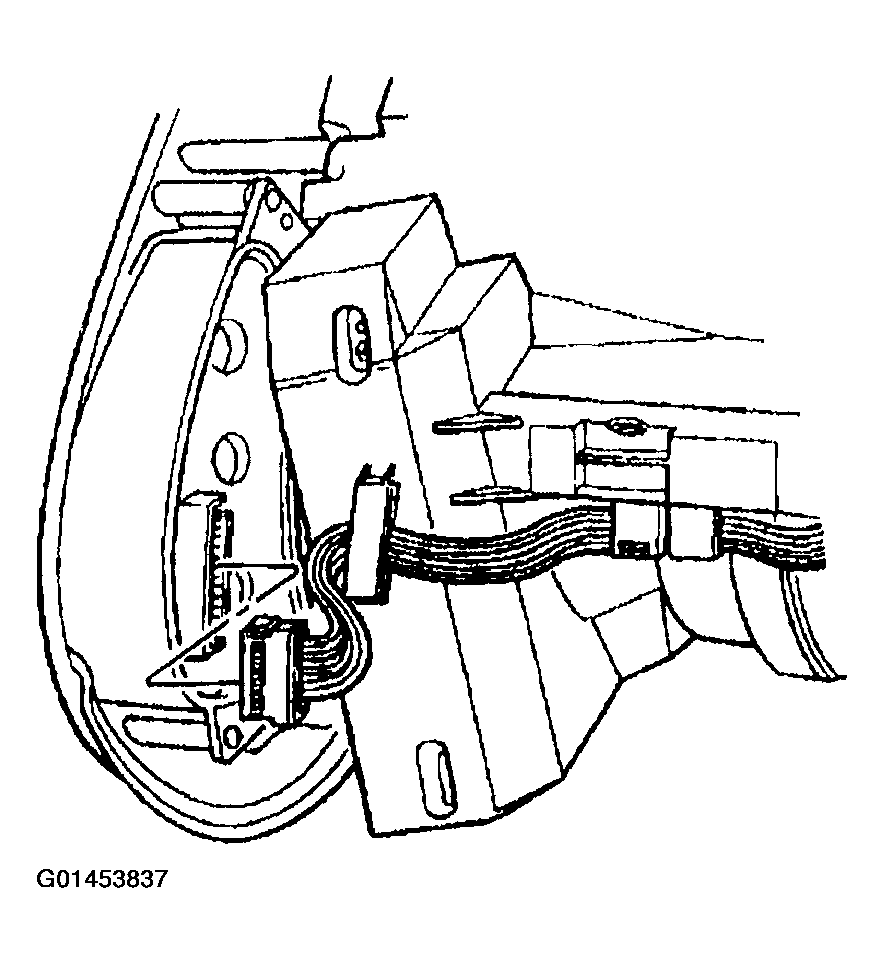

    Fig 2: Disconnecting Driver Information Center Switch Electrical Connector
    G01453837Courtesy of GENERAL MOTORS CORP.
  4. Remove the IP cluster bezel retaining screws.
  5. Remove the bezel from the IPC.

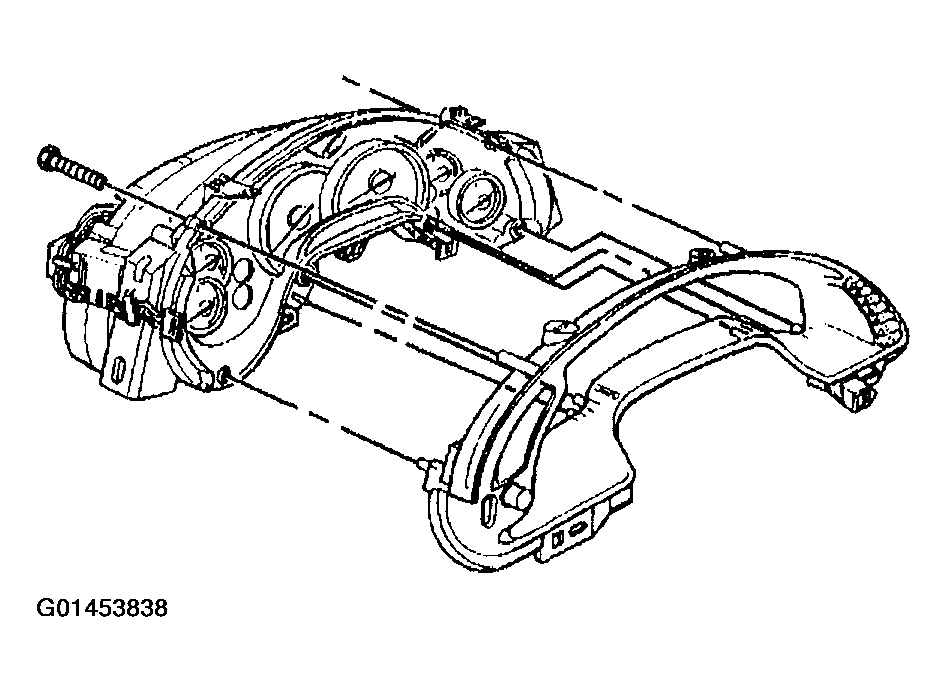

    Fig 3: Removing Bezel From Instrument Panel Cluster
    G01453838Courtesy of GENERAL MOTORS CORP.
  6. Remove the IP dimmer/HUD switch retaining screws.
  7. Remove the IP dimmer/HUD switch.

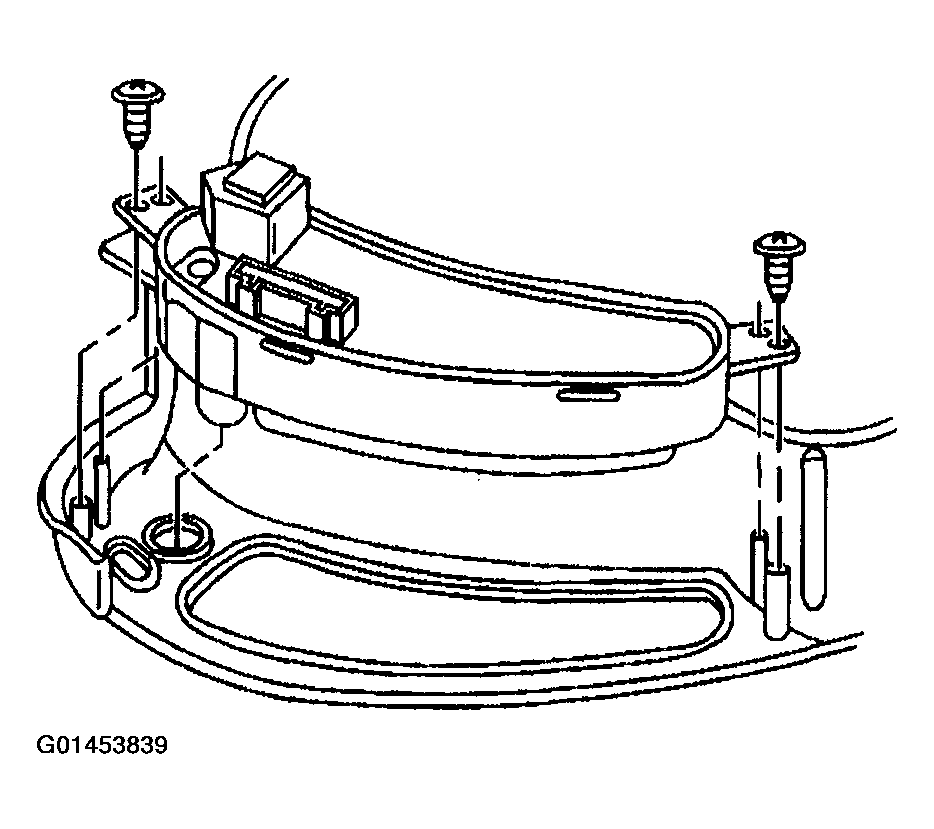

    Fig 4: Removing Instrument Panel Dimmer/Head-Up Display Switch
    G01453839Courtesy of GENERAL MOTORS CORP.
