Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the I/P upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER .
  3. Carefully lift the head-up display (HUD) electrical harness from between the instrument panel cluster (IPC) and the HUD.
  4. Disconnect the HUD electrical connector from the IPC.

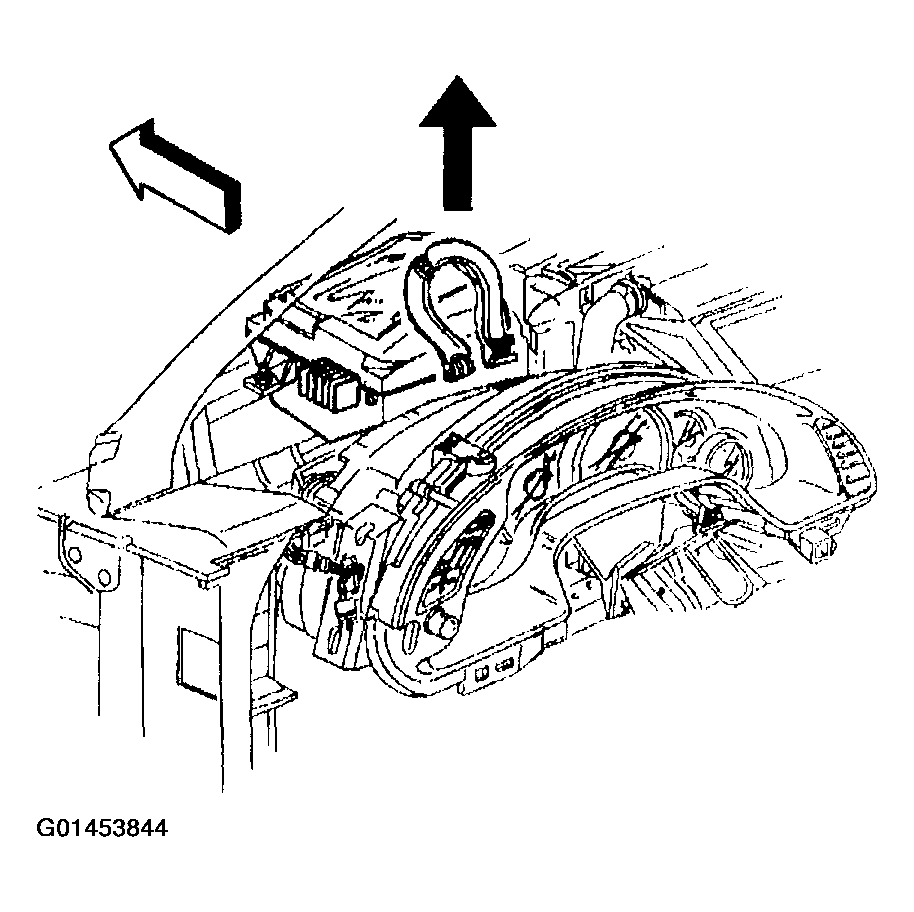

    Fig 1: Disconnecting Head-Up Display Electrical Connector From Instrument Panel Cluster
    G01453844Courtesy of GENERAL MOTORS CORP.
  5. Remove the IPC to steering column bracket retaining screws.
  6. Raise the rear of the IPC slightly to release the locator tab, then reposition the IPC to access the HUD-to-steering column bracket retaining screw.

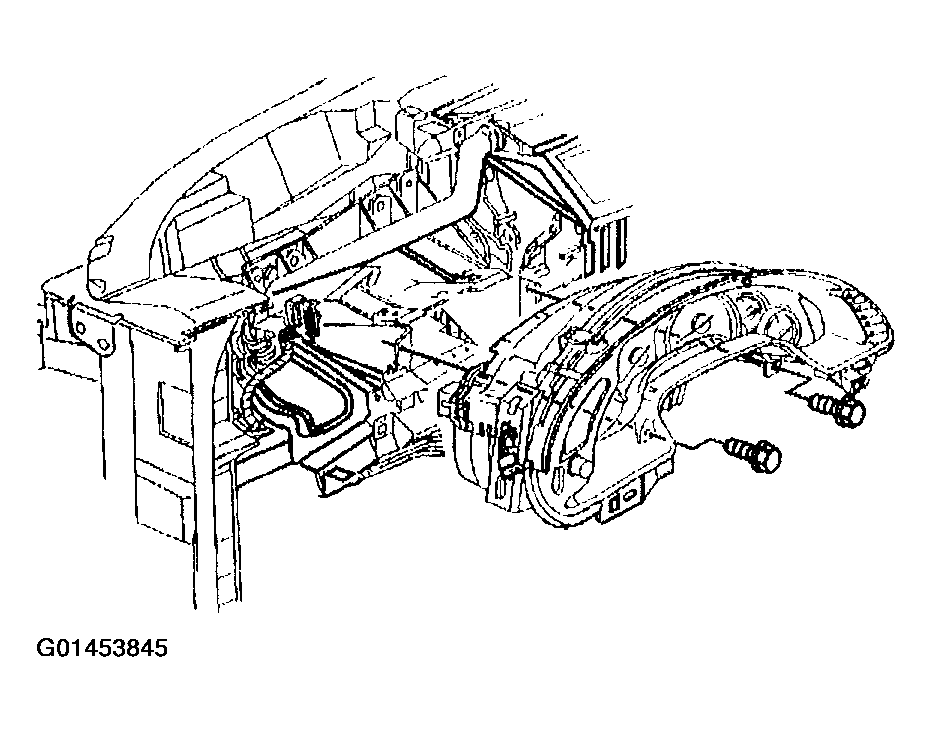

    Fig 2: Removing Instrument Panel Cluster To Steering Column Bracket Retaining Screws
    G01453845Courtesy of GENERAL MOTORS CORP.
  7. LOOSEN the HUD-to-steering column bracket retaining screw.
  8. Remove the HUD retaining nuts.
  9. Remove the HUD from the vehicle.

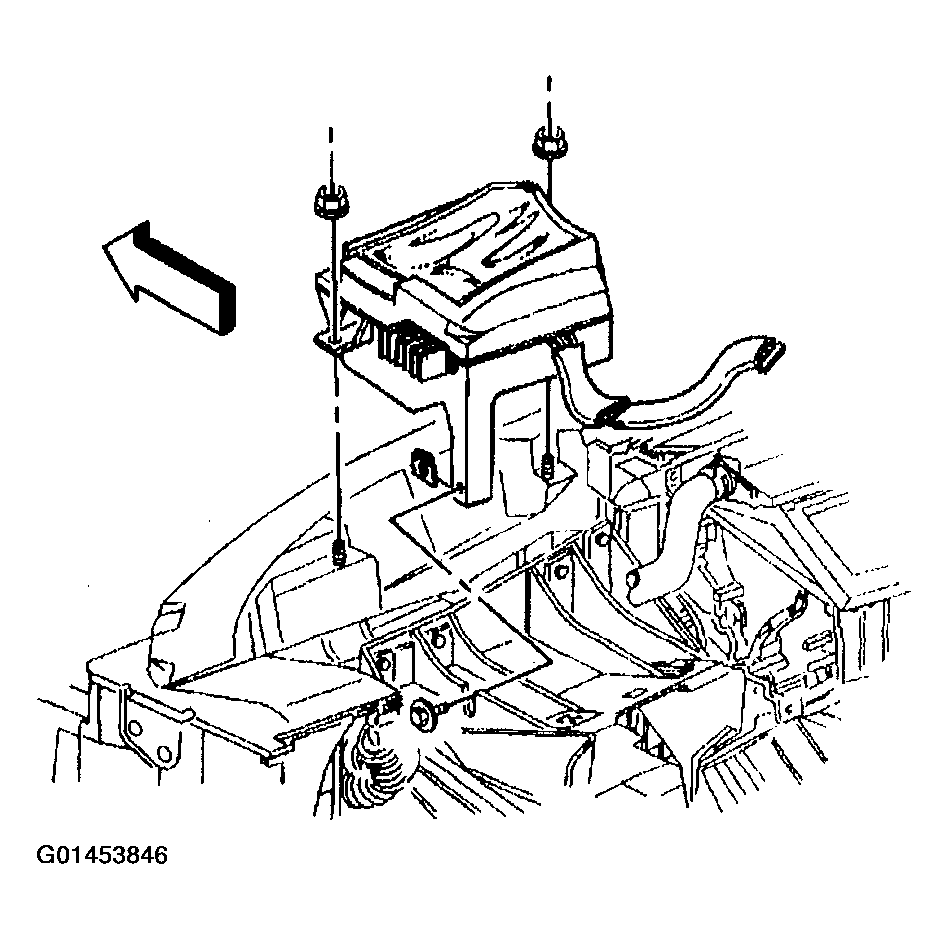

    Fig 3: Removing Head Up Display
    G01453846Courtesy of GENERAL MOTORS CORP.
