Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to INSTRUMENT PANEL CLUSTER (IPC) SERVICING NOTICE in Cautions and Notices.
  1. Remove the instrument panel cluster (IPC) from the vehicle. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .
  2. Disconnect the instrument panel (IP) dimmer switch or the IP dimmer/head-up display (HUD) switch electrical connector.

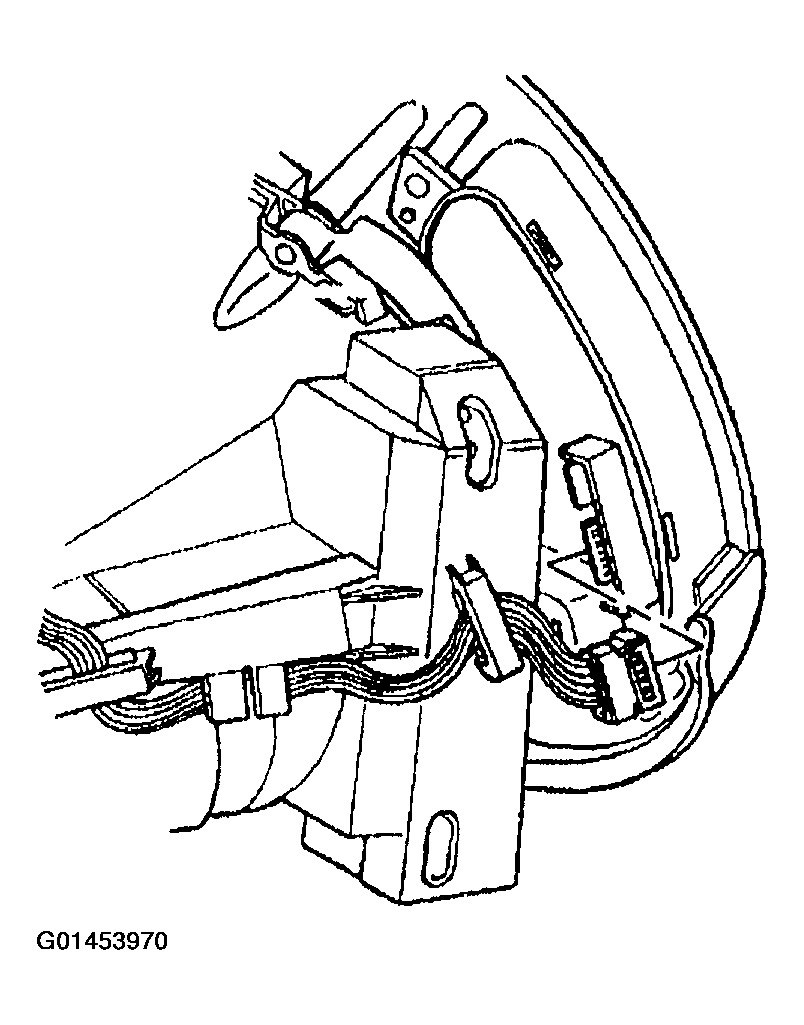

    Fig 1: Disconnecting Instrument Panel Dimmer Switch Electrical Connector
    G01453970Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the driver information center (DIC) switch electrical connector.

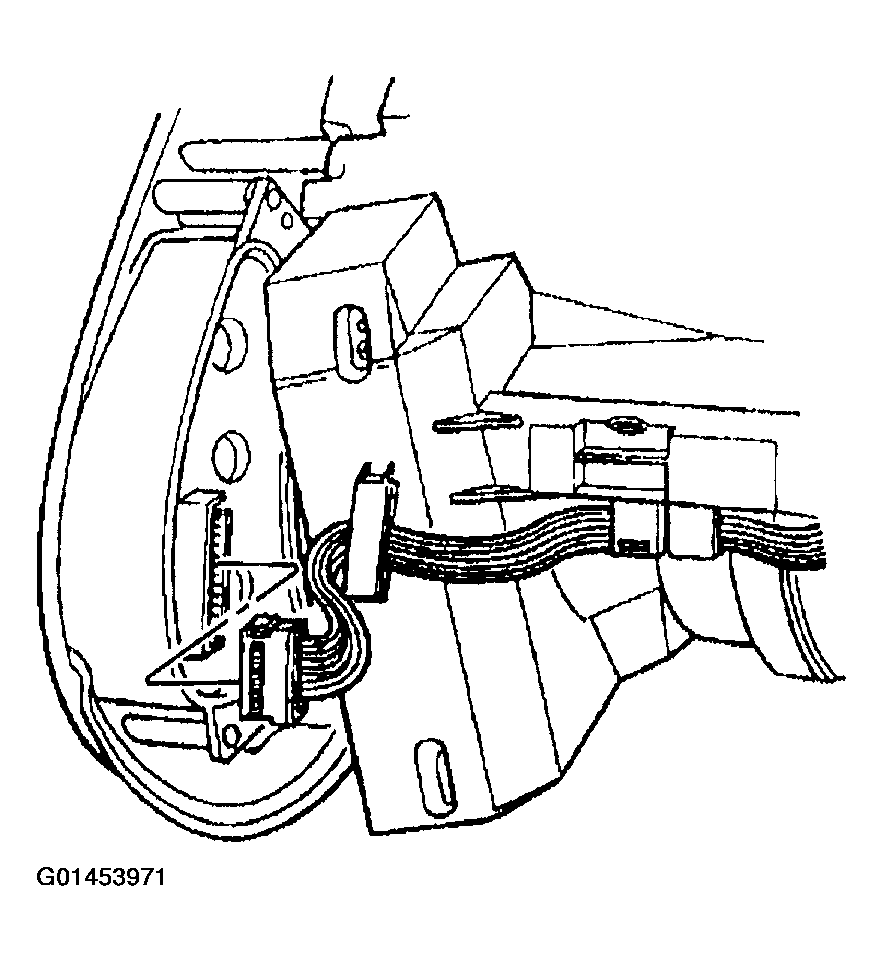

    Fig 2: Disconnecting Driver Information Center Switch Electrical Connector
    G01453971Courtesy of GENERAL MOTORS CORP.
  4. Remove the IP cluster bezel retaining screws.
  5. Remove the bezel from the IPC.

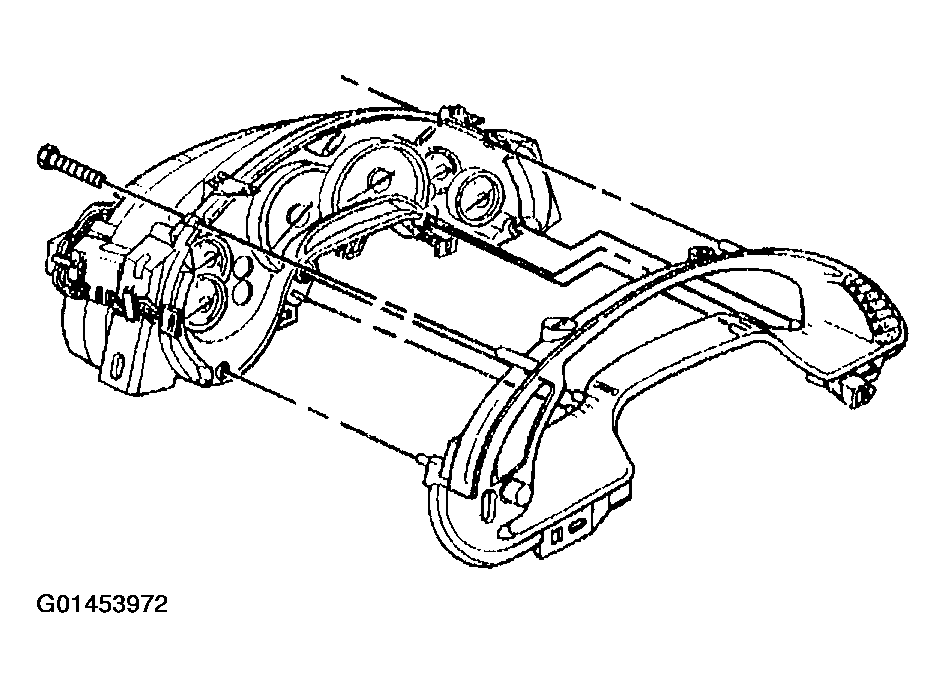

    Fig 3: Removing Bezel From Instrument Panel Cluster
    G01453972Courtesy of GENERAL MOTORS CORP.
  6. Remove the DIC switch retaining screws.
  7. Remove the DIC switch.

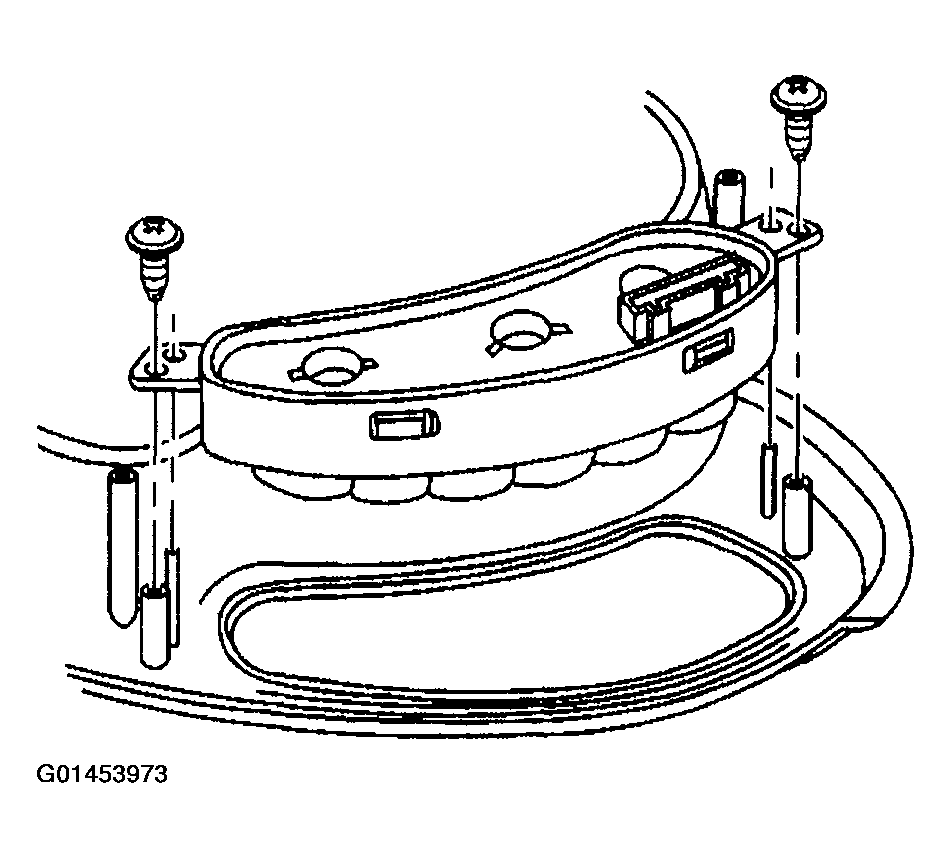

    Fig 4: Removing Driver Information Center Switch
    G01453973Courtesy of GENERAL MOTORS CORP.
