Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console from the vehicle. Refer to CONSOLE REPLACEMENT .
  2. Open the console door.
  3. Remove the screws retaining the console door to the door hinge.
  4. Remove the console door.

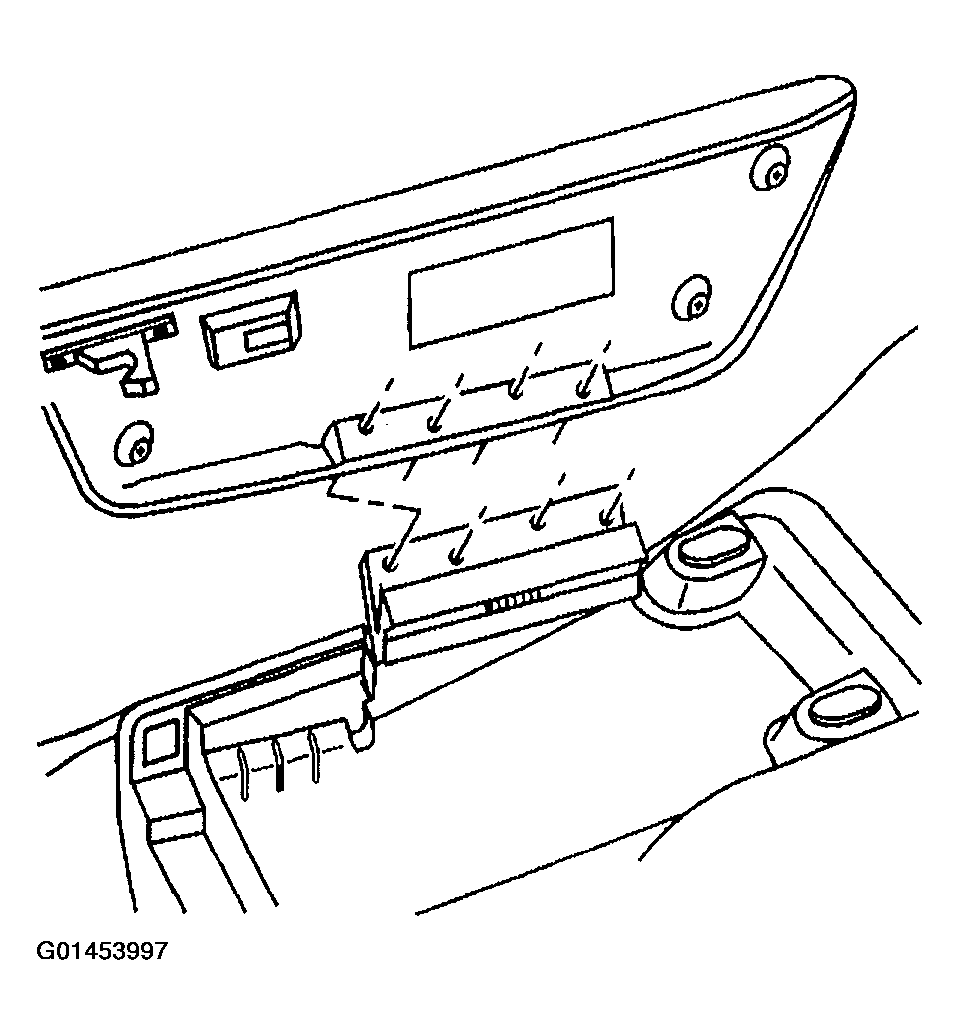

    Fig 1: Removing Console Door
    G01453997Courtesy of GENERAL MOTORS CORP.
  5. Remove the nuts retaining the hinge to the console.
  6. Remove the hinge from the console.
    Fig 2: Removing Hinge From Console
    G01453998Courtesy of GENERAL MOTORS CORP.
