Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Position the console door hinge to the console.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the nuts retaining the door hinge to the console.
Tighten

Tighten the console door hinge retaining nuts to 2.4 N.m (21 lb in).

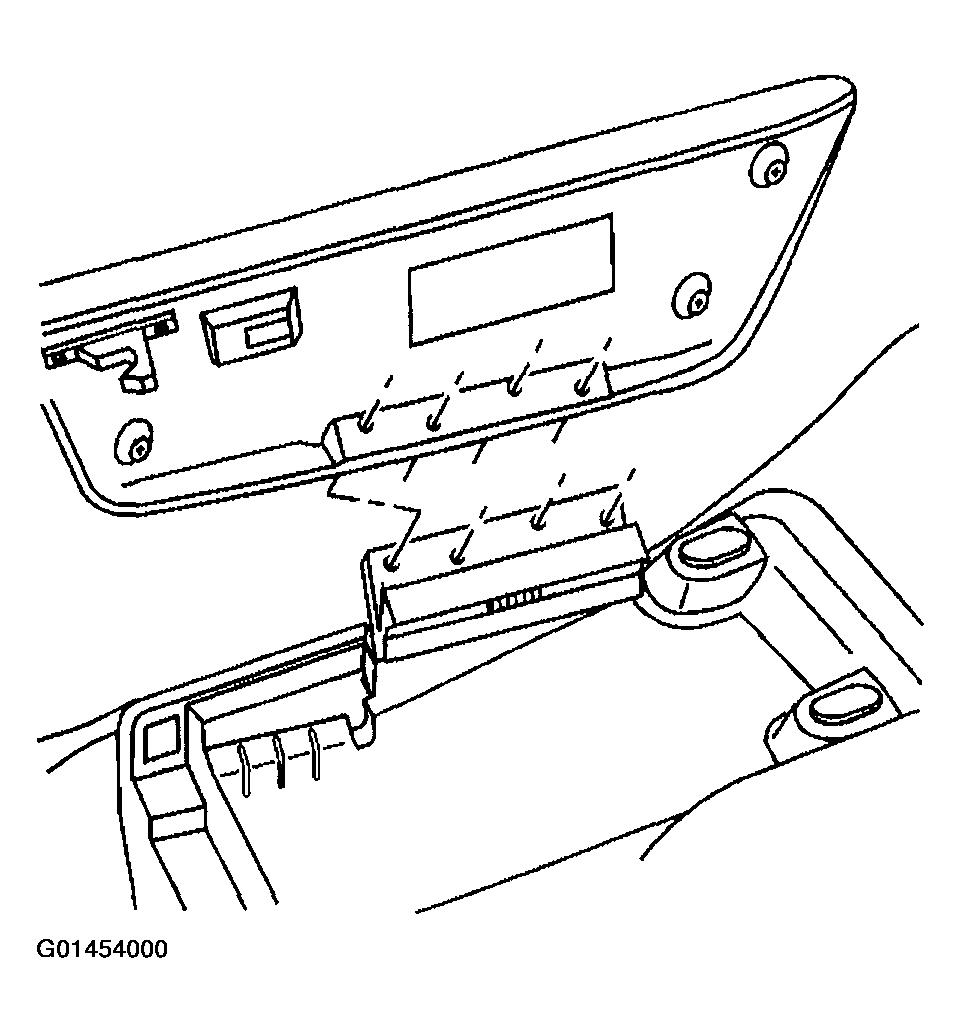

Fig 1: Installing Hinge To Console
Courtesy of GENERAL MOTORS CORP.
Position the console door to the door hinge.
Insert both door alignment pins into the hinge alignment holes.
Install the screws retaining the console door to the door hinge.
Tighten

Tighten the console door retaining screws to 1.9 N.m (17 lb in).

Fig 2: Installing Console Door To Door Hinge
Courtesy of GENERAL MOTORS CORP.
Install the console to the vehicle. Refer to CONSOLE REPLACEMENT .
