Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the instrument panel (I/P) passenger compartment door.
  2. Disconnect the electrical connector from the I/P compartment lamp switch.
  3. Remove the trim plugs from the bottom of the compartment door.

    Reach behind the compartment door and push the plugs out. Use a suitable flat bladed tool on the front side to remove the plugs, if necessary.

  4. Remove the lower retaining bolts from the I/P compartment.
  5. Remove the side and upper retaining screws from the I/P compartment.

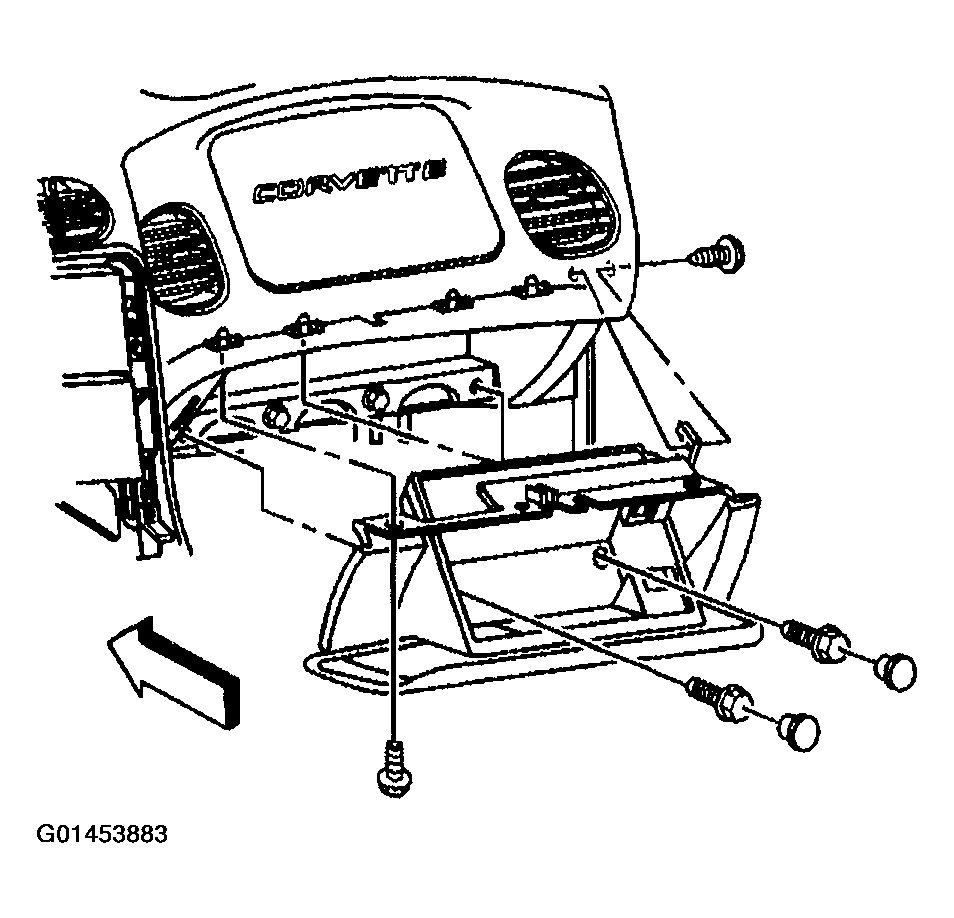

    Fig 1: Removing Retaining Screws From Instrument Panel Compartment
    G01453883Courtesy of GENERAL MOTORS CORP.
  6. Slowly pull the I/P compartment just enough to disconnect the wiring harness connector from the inflatable restraint module switch.
  7. Remove the I/P compartment.

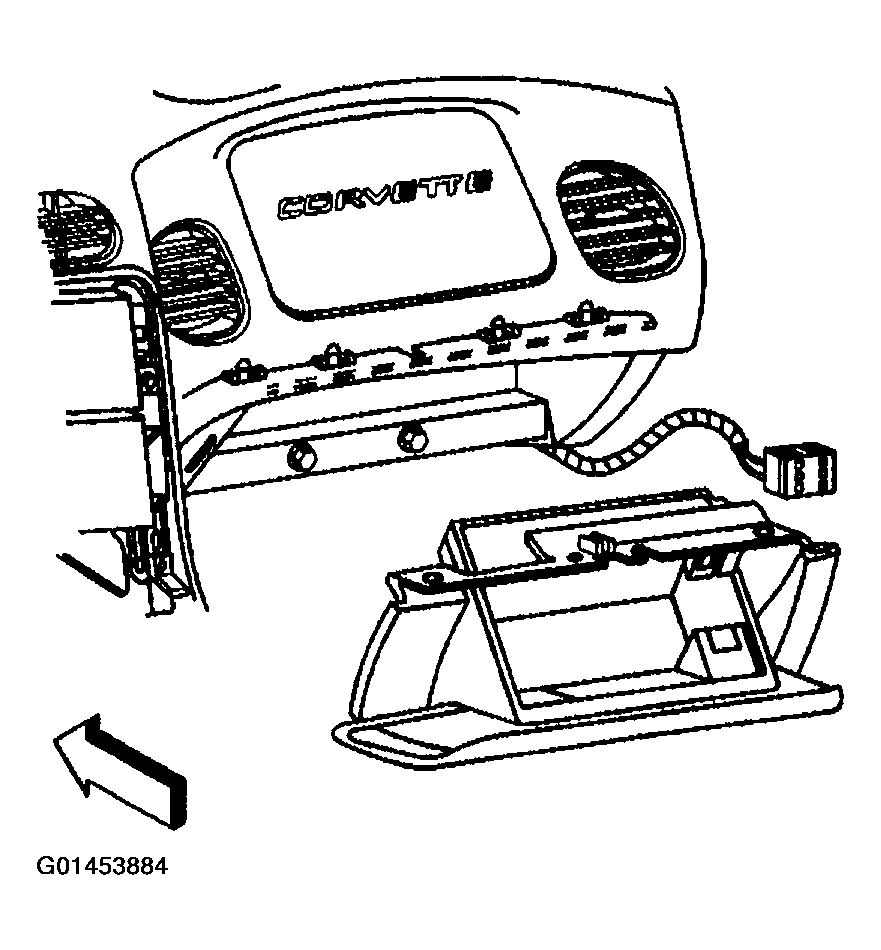

    Fig 2: Removing Instrument Panel Compartment
    G01453884Courtesy of GENERAL MOTORS CORP.
