Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the wiring harness connector to the inflatable restraint I/P module switch connector.

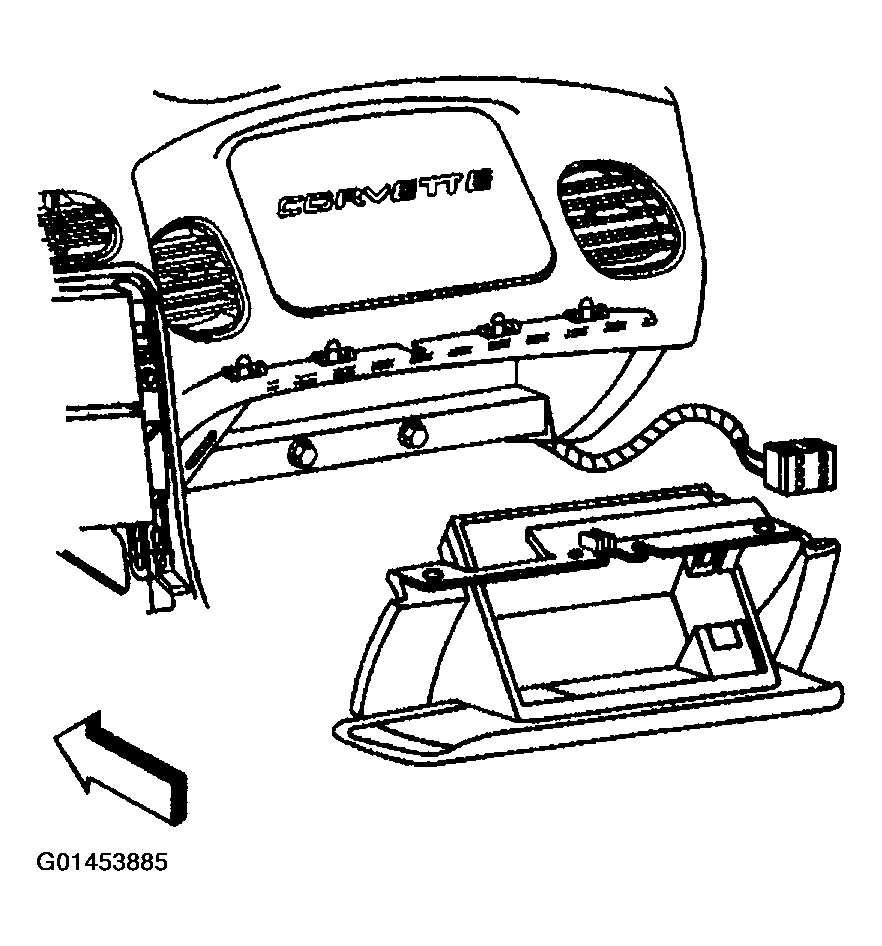

    Fig 1: Installing Instrument Panel Compartment
    G01453885Courtesy of GENERAL MOTORS CORP.
  2. Install the I/P compartment.
  3. Loosely install the screw which retains the side of the I/P compartment, in order to align the nut on the passenger SIR bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the upper retaining screw to the I/P compartment.

    Tighten

    Tighten the retaining screw to 1.9 N.m (17 lb in).

  5. Install the lower retaining bolts to the I/P compartment.

    Tighten

    Tighten the retaining bolts to 12 N.m (106 lb in).

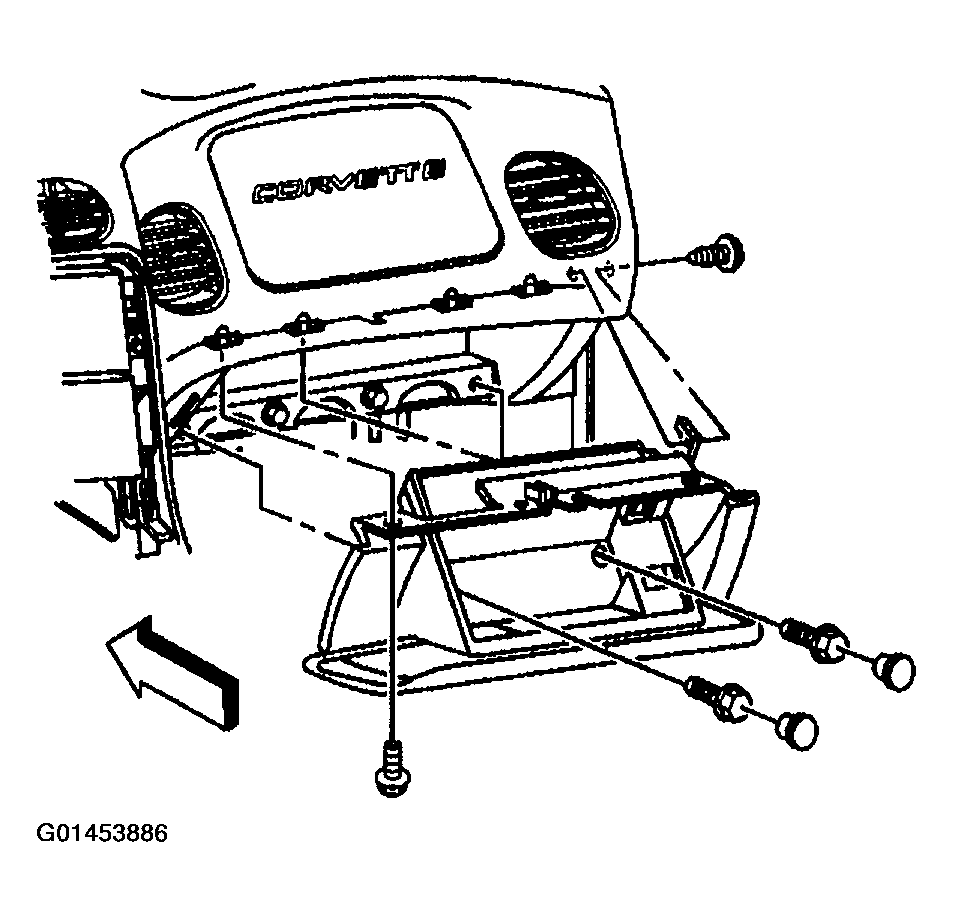

    Fig 2: Installing Retaining Screws To Instrument Panel Compartment
    G01453886Courtesy of GENERAL MOTORS CORP.
  6. Align and hold the I/P compartment to the I/P, then install the side retaining screw to the I/P compartment.

    Tighten

    Tighten the retaining screw to 1.9 N.m (17 lb in).

  7. Install the trim plugs to the I/P compartment door.
  8. Connect the electrical connector to the I/P compartment lamp switch.
  9. Close the I/P passenger compartment door.

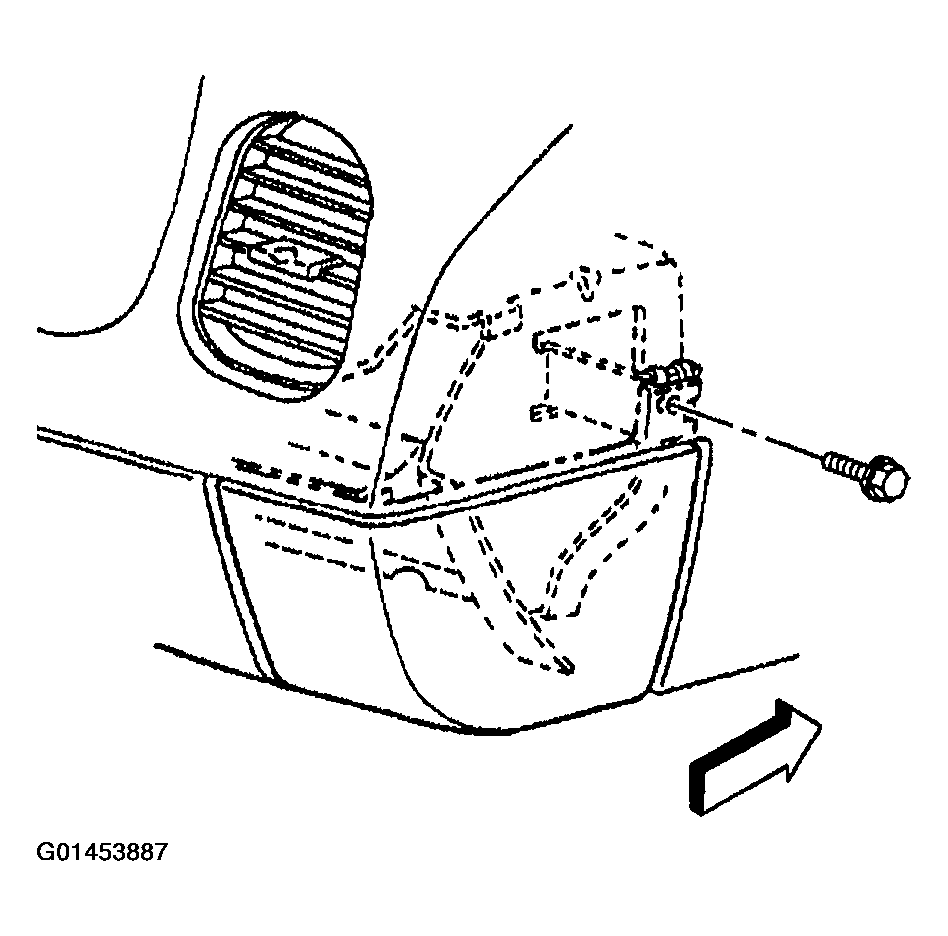

    Fig 3: Installing Side Retaining Screw To Instrument Panel Compartment
    G01453887Courtesy of GENERAL MOTORS CORP.
