Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a flat bladed tool, carefully pry the I/P courtesy lamp assembly from the RH lower closeout panel.
    Fig 1: Removing Instrument Panel Courtesy Lamp Assembly
    G01453851Courtesy of GENERAL MOTORS CORP.
  2. Remove the RH lower closeout panel push-in retainers from the I/P lower support beam.
  3. Lower the closeout panel slightly, and finesse the left side of the closeout panel from above the driveline tunnel.
  4. Insert the I/P courtesy lamp assembly up through the opening in the closeout panel.
  5. Continue to lower the closeout panel, then pull to remove from the dash panel studs.
  6. Remove the closeout panel.

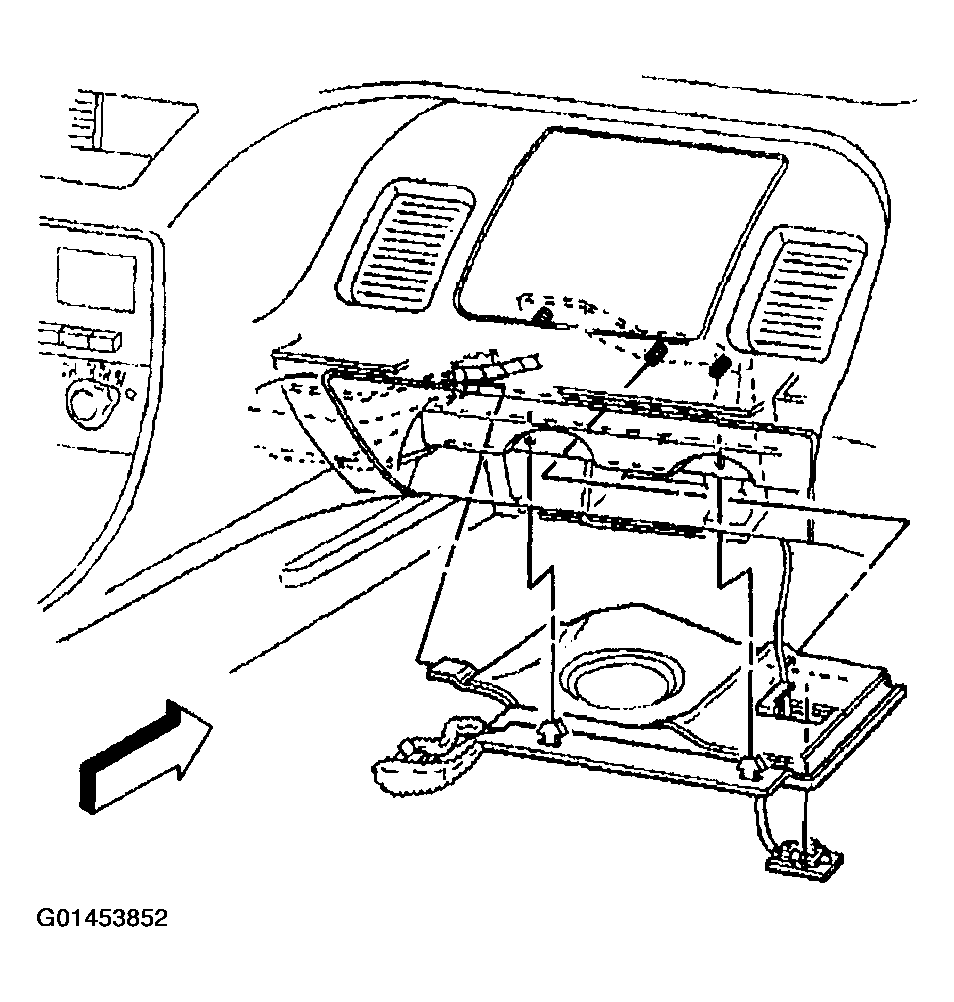

    Fig 2: Removing Closeout Panel
    G01453852Courtesy of GENERAL MOTORS CORP.
