Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the RH closeout panel onto the dash panel studs.
  2. Insert the I/P courtesy lamp down through the opening in the closeout panel.
  3. Raise the closeout panel slightly, and finesse the left side of the closeout panel into position above the driveline tunnel.
  4. Install the closeout panel push-in retainers to the I/P lower support beam.

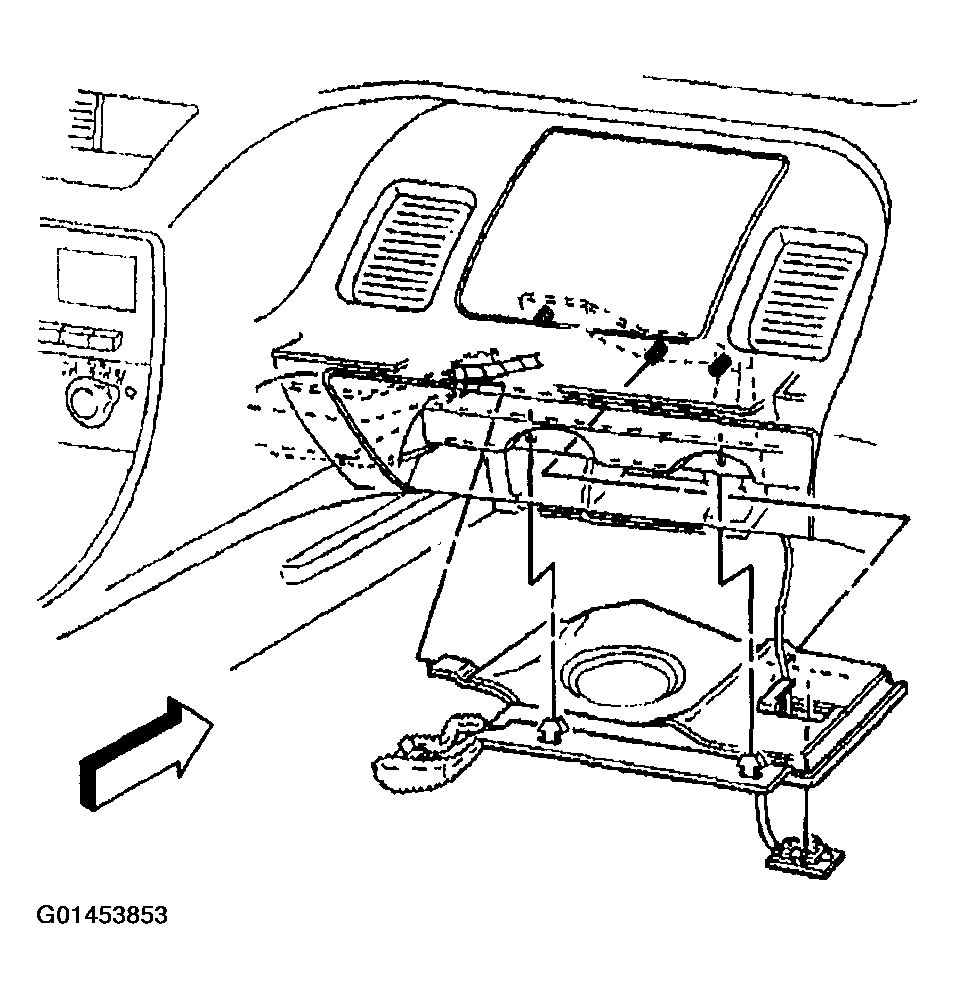

    Fig 1: Installing Closeout Panel
    G01453853Courtesy of GENERAL MOTORS CORP.
  5. Align the I/P courtesy lamp to the closeout panel opening, then push to secure.
    Fig 2: Installing Instrument Panel Courtesy Lamp Assembly
    G01453854Courtesy of GENERAL MOTORS CORP.
