Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a flat bladed tool, carefully pry the I/P courtesy lamp assembly from the LH lower closeout panel.
    Fig 1: Removing Instrument Panel Courtesy Lamp Assembly
    G01453855Courtesy of GENERAL MOTORS CORP.
  2. Remove the push-on retaining nut from the steering column bracket stud.
  3. Release the LH lower closeout panel push-in retainers from the I/P lower support beam.
  4. Insert the I/P courtesy lamp assembly up through the opening in the closeout panel.
  5. Lower and remove the closeout panel.

    Release the notch in the RH forward edge of the closeout panel from the tab on the accelerator pedal bracket.

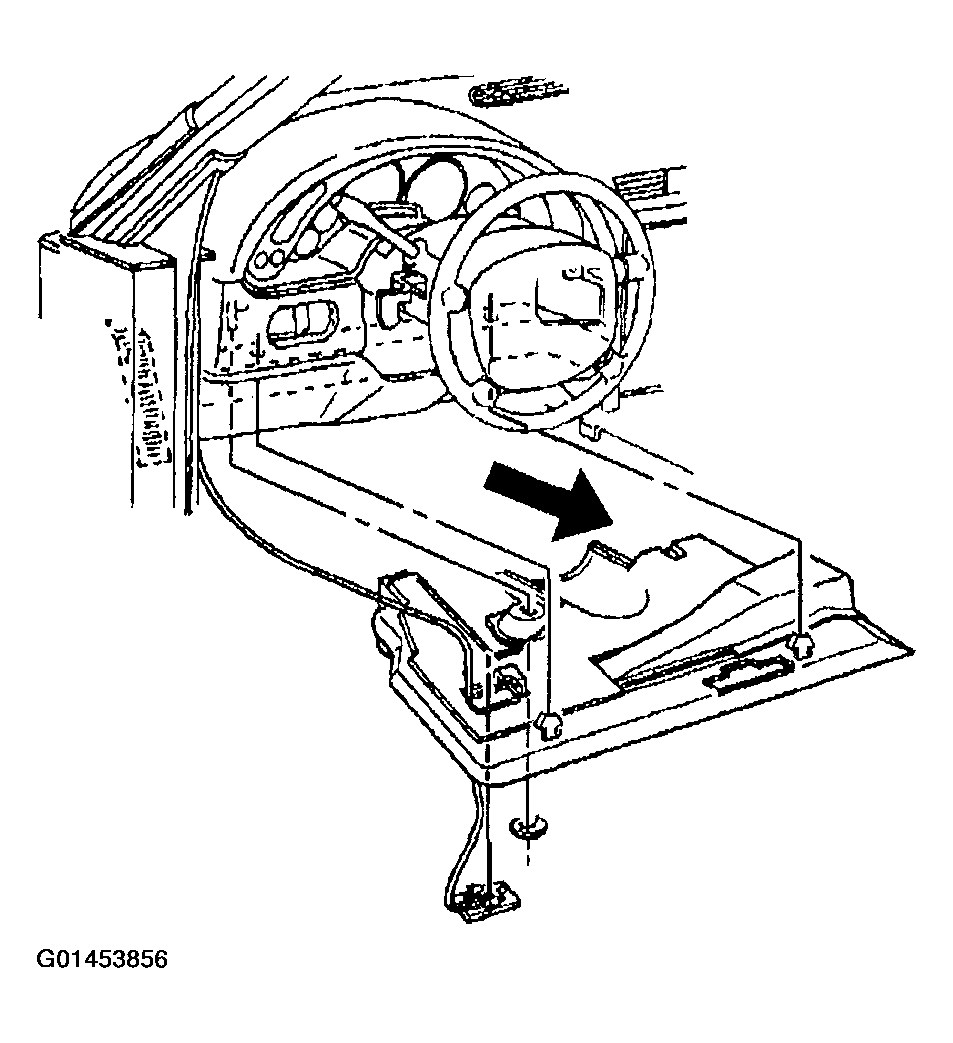

    Fig 2: Removing Closeout Panel
    G01453856Courtesy of GENERAL MOTORS CORP.
