Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the I/P courtesy lamp down through the opening in the closeout panel.
  2. Install the closeout panel into position.
  3. Secure the closeout panel push-in retainers to the I/P lower support beam.
  4. Secure the notch in the RH forward edge of the closeout panel to the tab on the accelerator pedal bracket.

    Align, then push up to secure.

  5. Install the push-on retaining nut to the steering column bracket stud.

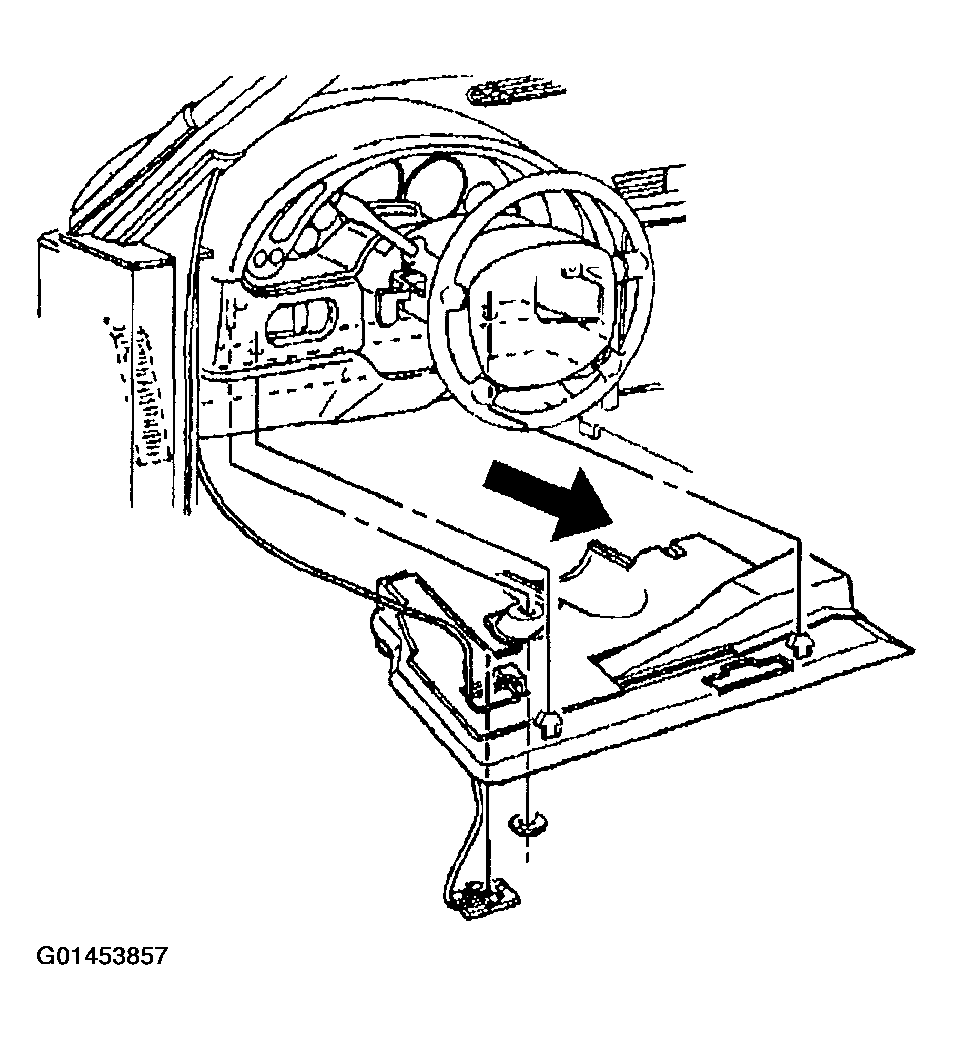

    Fig 1: Installing Closeout Panel
    G01453857Courtesy of GENERAL MOTORS CORP.
  6. Align the I/P courtesy lamp to the closeout panel opening, then push to secure.
    Fig 2: Installing Instrument Panel Courtesy Lamp Assembly
    G01453858Courtesy of GENERAL MOTORS CORP.
