Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console. Refer to CONSOLE REPLACEMENT .
  2. Remove the I/P accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY .
  3. Remove the cigar lighter from the cigar lighter housing.
  4. Unscrew to remove the cigar lighter retainer from the cigar lighter housing.
  5. Remove the cigar lighter housing from the I/P accessory trim plate.

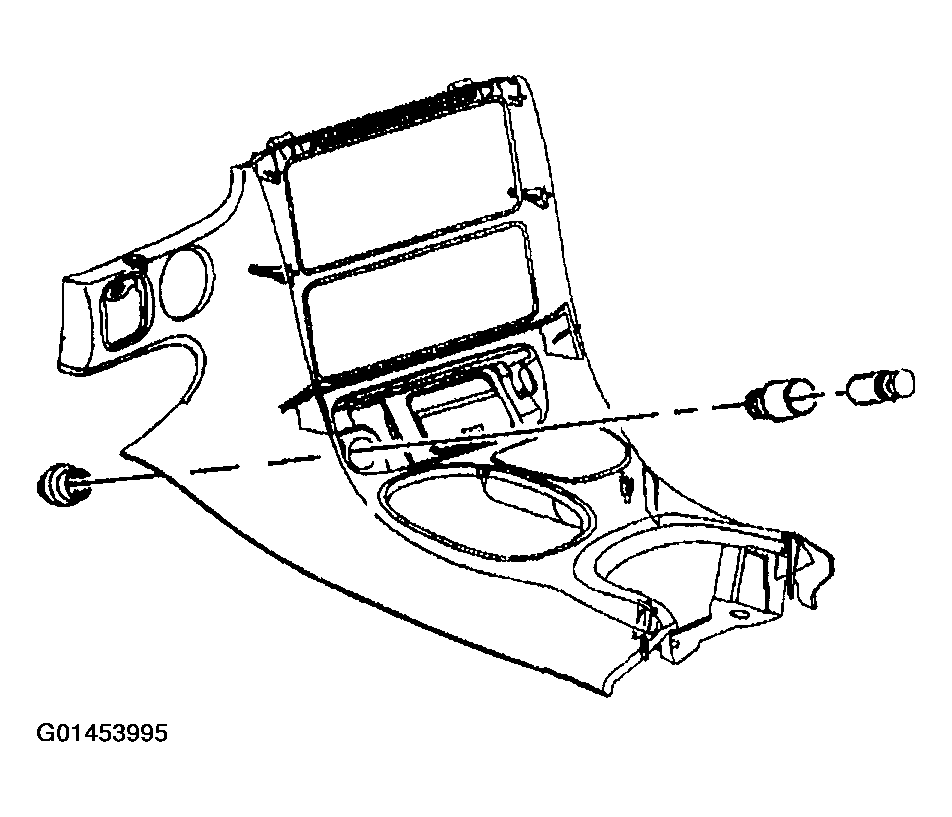

    Fig 1: Removing Cigar Lighter Housing From Instrument Panel Accessory Trim Plate
    G01453995Courtesy of GENERAL MOTORS CORP.
