Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cigar lighter housing to the I/P accessory trim plate.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the cigar lighter retainer onto the cigar lighter housing.

    Tighten

    Tighten the cigar lighter retainer to 2.8 N.m (25 lb in).

  3. Install the cigar lighter to the cigar lighter housing.
  4. Install the I/P accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY .
  5. Install the console. Refer to CONSOLE REPLACEMENT .

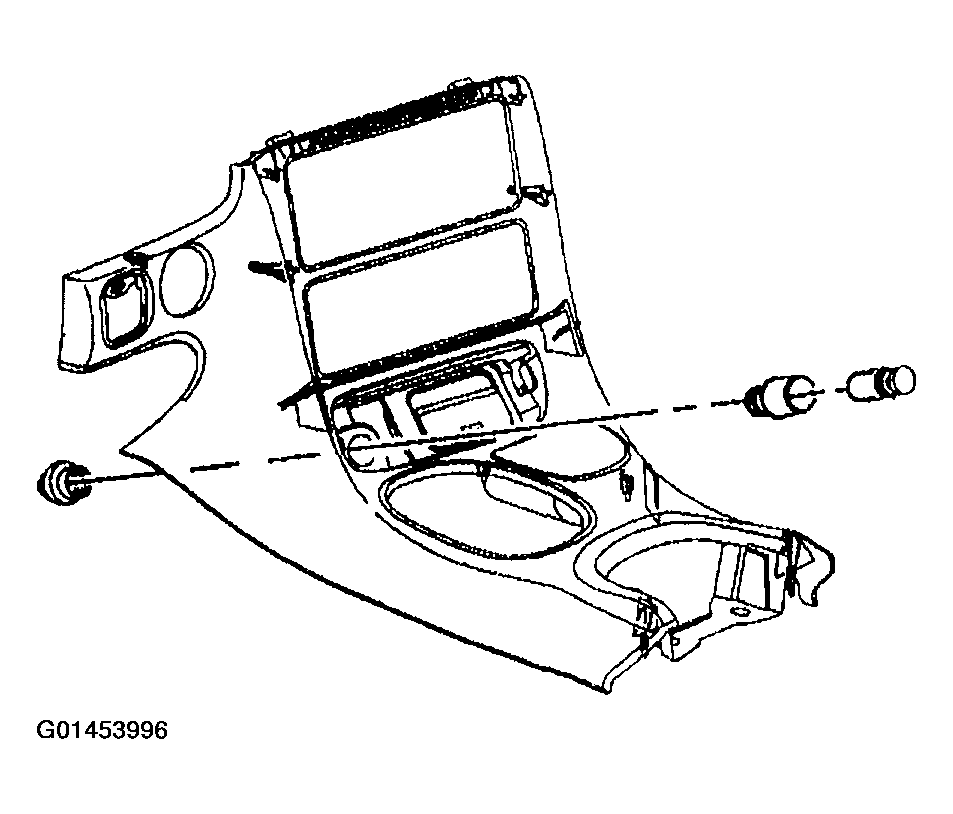

    Fig 1: Installing Cigar Lighter Housing To Instrument Panel Accessory Trim Plate
    G01453996Courtesy of GENERAL MOTORS CORP.
