Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Install the DIC switch to the I/P cluster bezel.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the DIC switch retaining screws.
Tighten

Tighten the DIC switch retaining screws to 1.5 N.m (13 lb in).

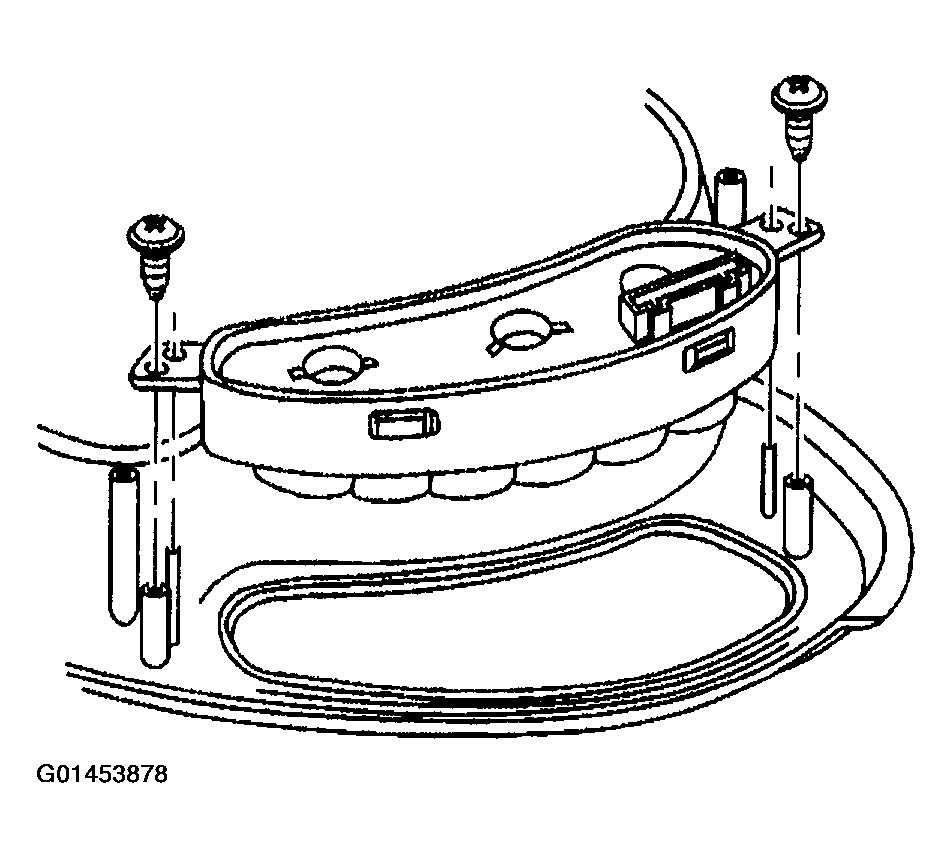

Fig 1: Installing Driver Information Center Switch
Courtesy of GENERAL MOTORS CORP.
Install the I/P dimmer switch or I/P dimmer/HUD switch to the bezel.
Install the I/P dimmer switch or I/P dimmer/HUD switch retaining screws.
Tighten

Tighten the I/P dimmer switch or I/P dimmer/HUD switch retaining screws to 1.5 N.m (13 lb in).

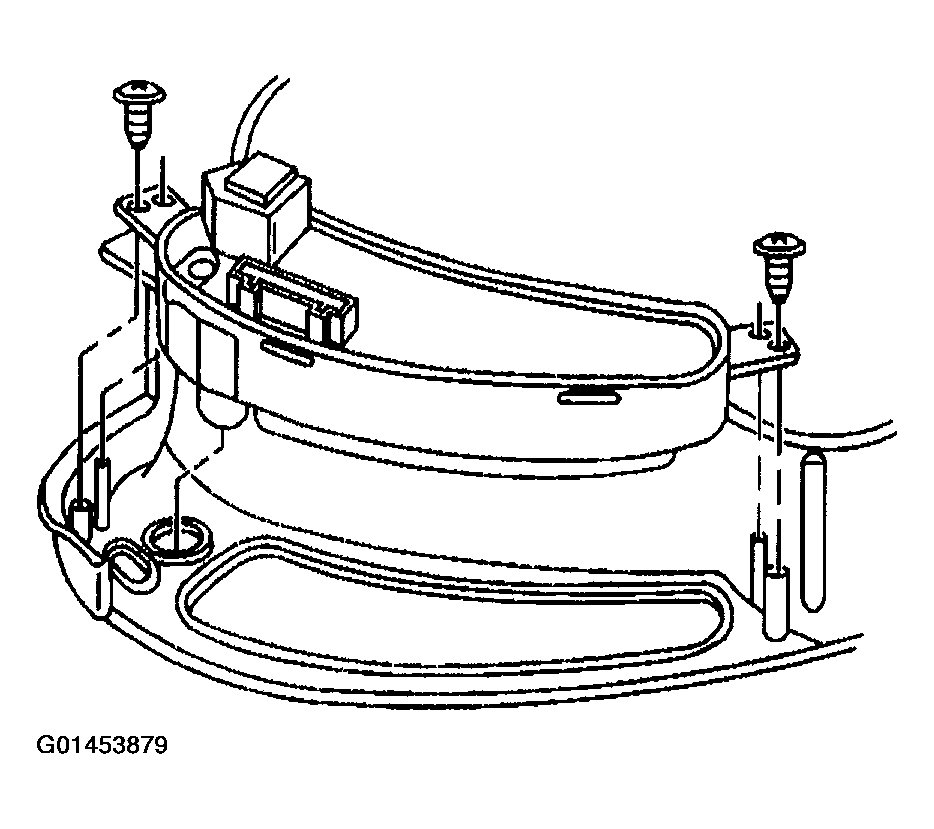

Fig 2: Installing Instrument Panel Dimmer Switch
Courtesy of GENERAL MOTORS CORP.
Install the bezel to the IPC.
Align the bezel onto the guide pins.

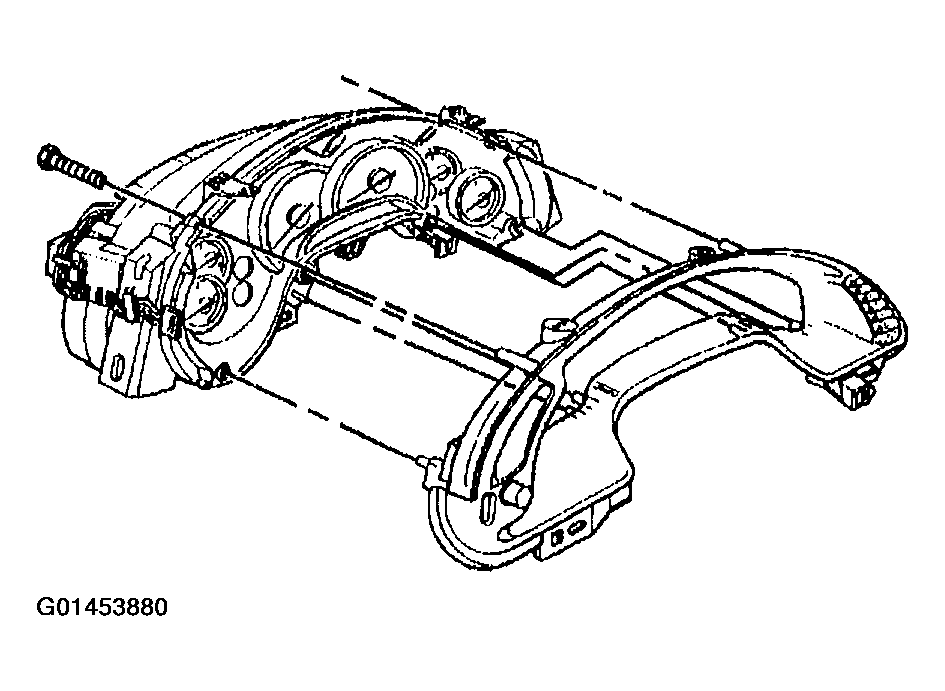

Fig 3: Installing Bezel To Instrument Panel Cluster
Courtesy of GENERAL MOTORS CORP.
Install the I/P cluster bezel retaining screws.
Tighten

Tighten the I/P cluster bezel retaining screws to 1.5 N.m (13 lb in).
Connect the I/P dimmer switch or I/P dimmer/HUD switch electrical connector.

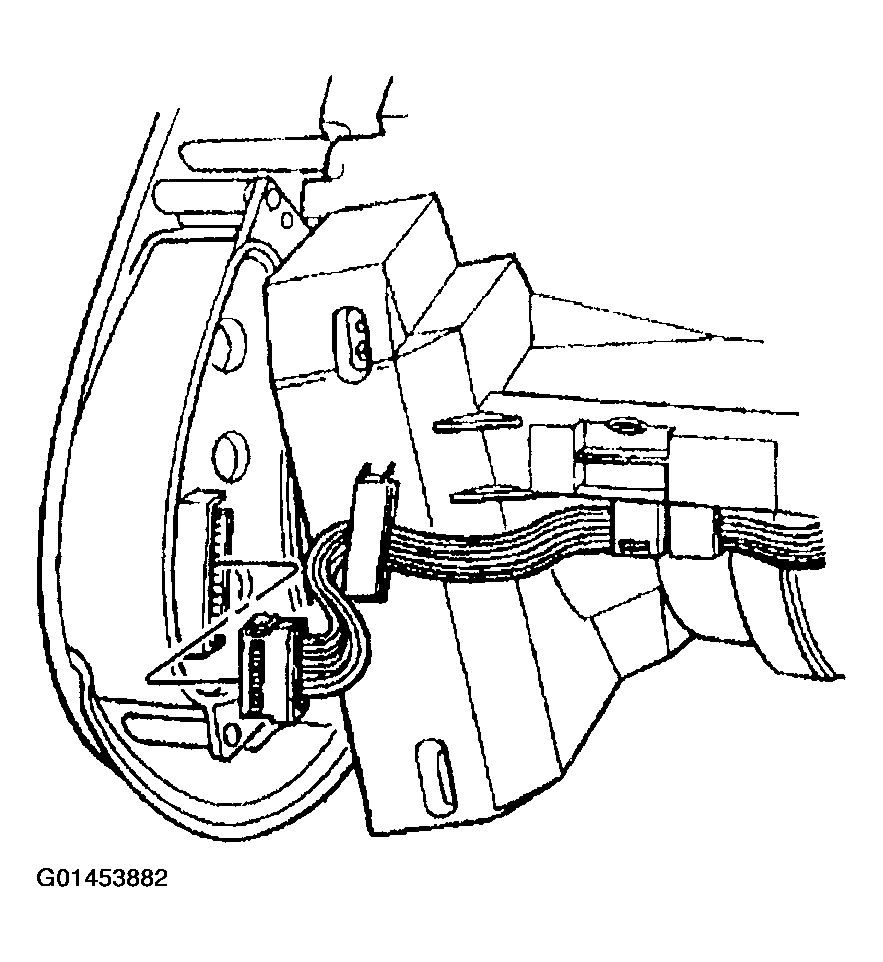

Fig 4: Connecting Instrument Panel Dimmer Switch Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Connect the DIC switch electrical connector.
Install the IPC to the vehicle. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .

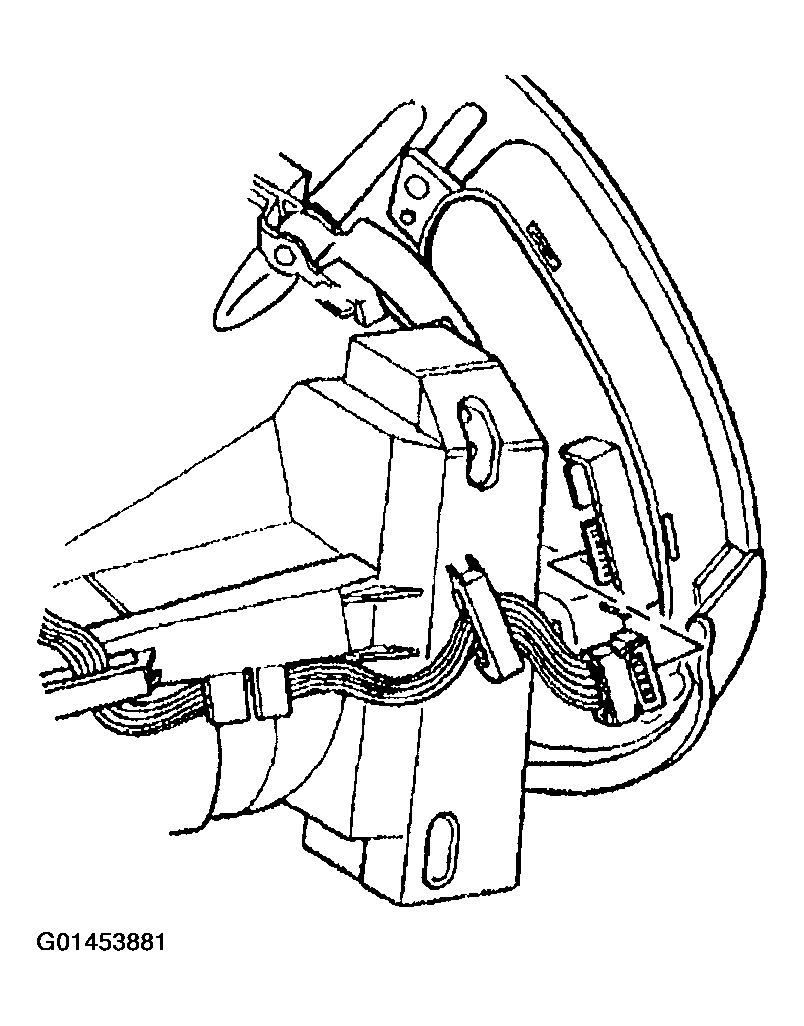

Fig 5: Connecting Driver Information Center Switch Electrical Connector
Courtesy of GENERAL MOTORS CORP.
