Test Description

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

The number(s) below refer to the step number(s) on the diagnostic table.

  1. Tests the tachometer operation. All tachometer malfunctions must be diagnosed and corrected first.

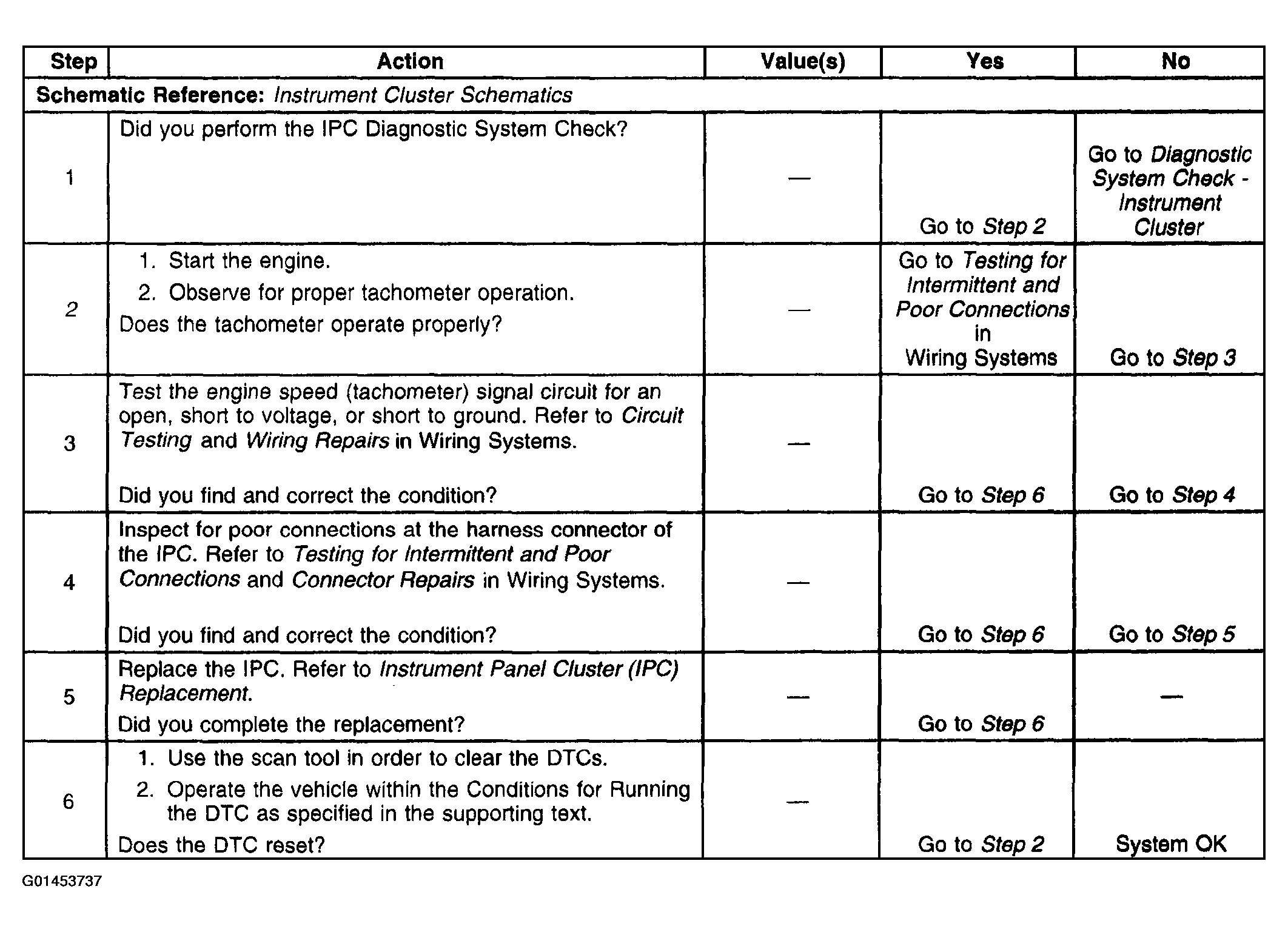

    Fig 1: DTC B0521
    G01453737Courtesy of GENERAL MOTORS CORP.
