Instrument Panel, Gages, and Console Connector End Views
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

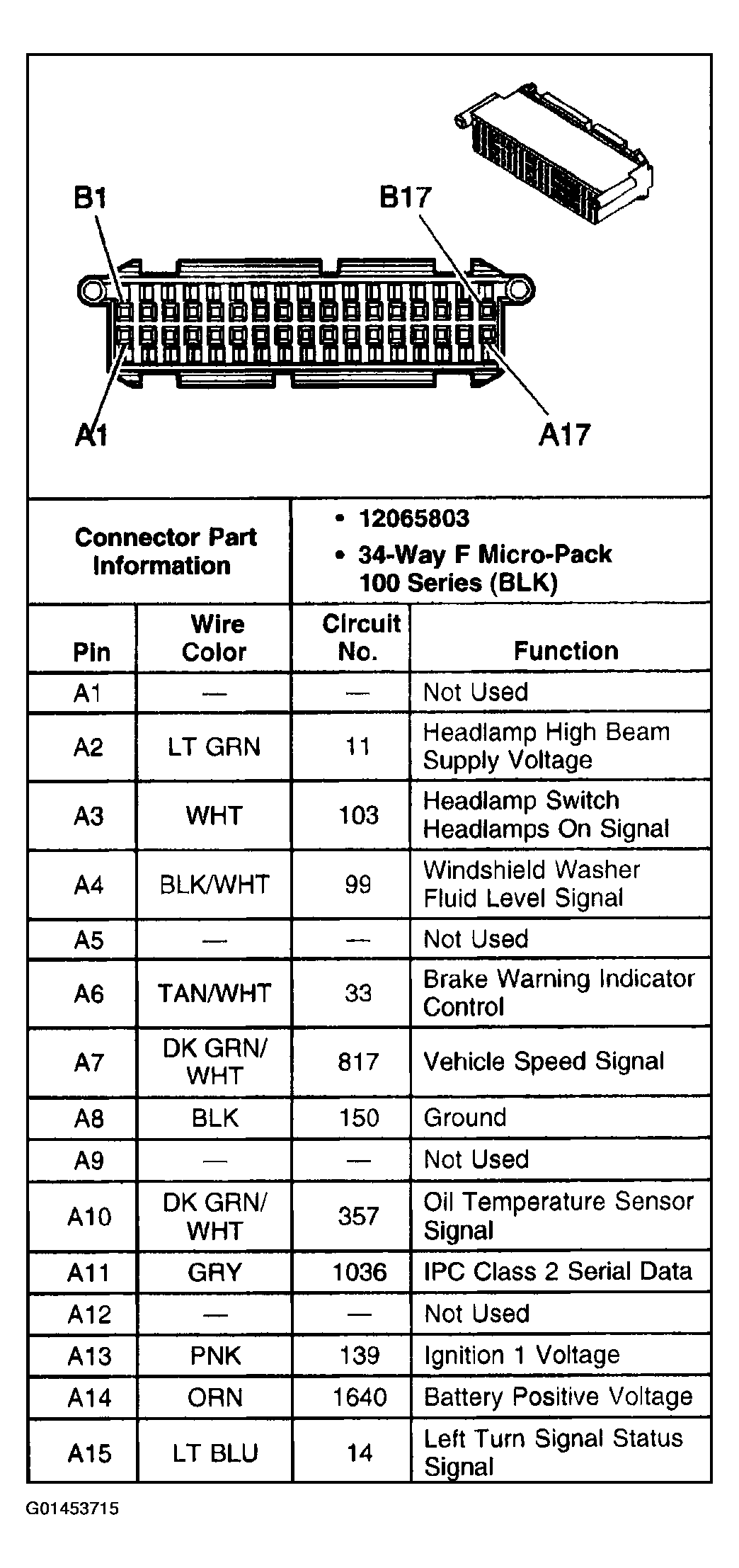

Fig 1: Instrument Panel Cluster (IPC) Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

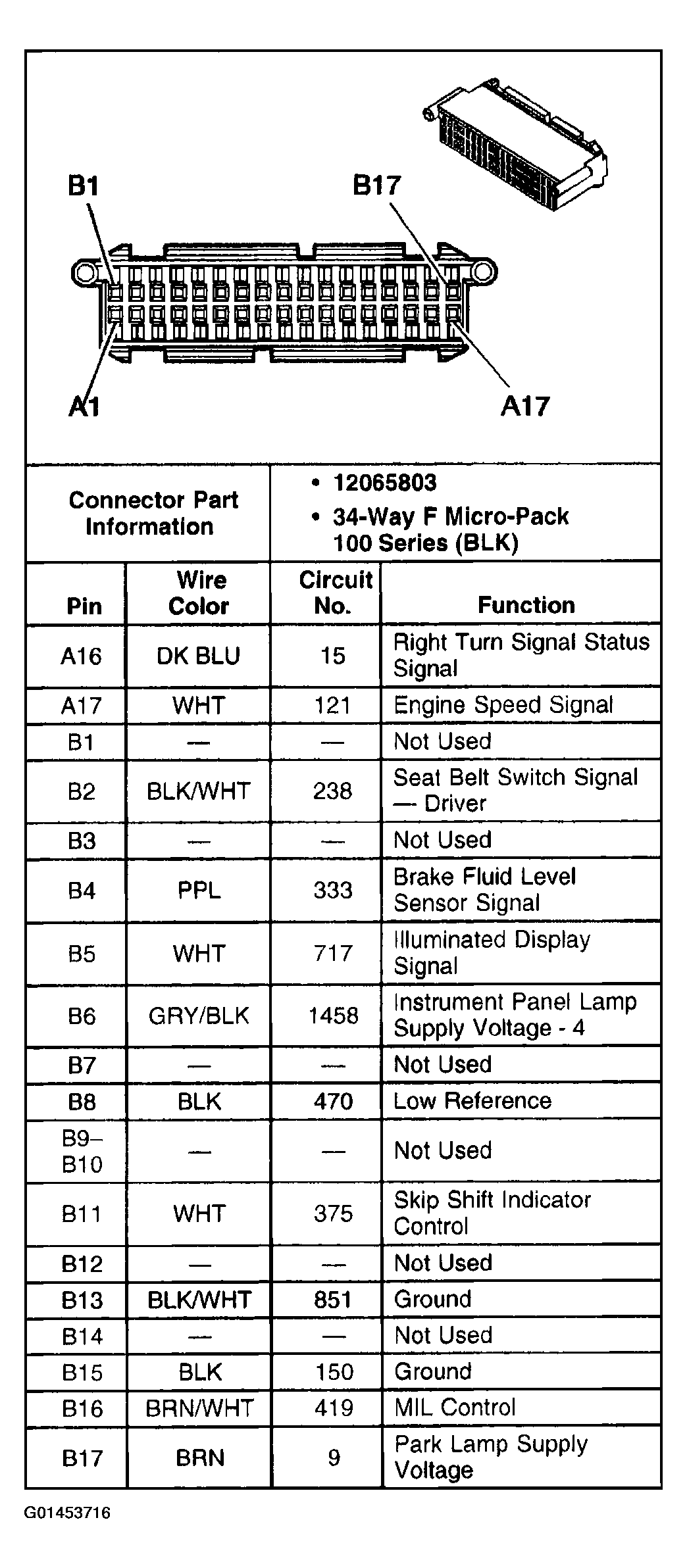

Fig 2: Instrument Panel Cluster (IPC) Connector End View (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

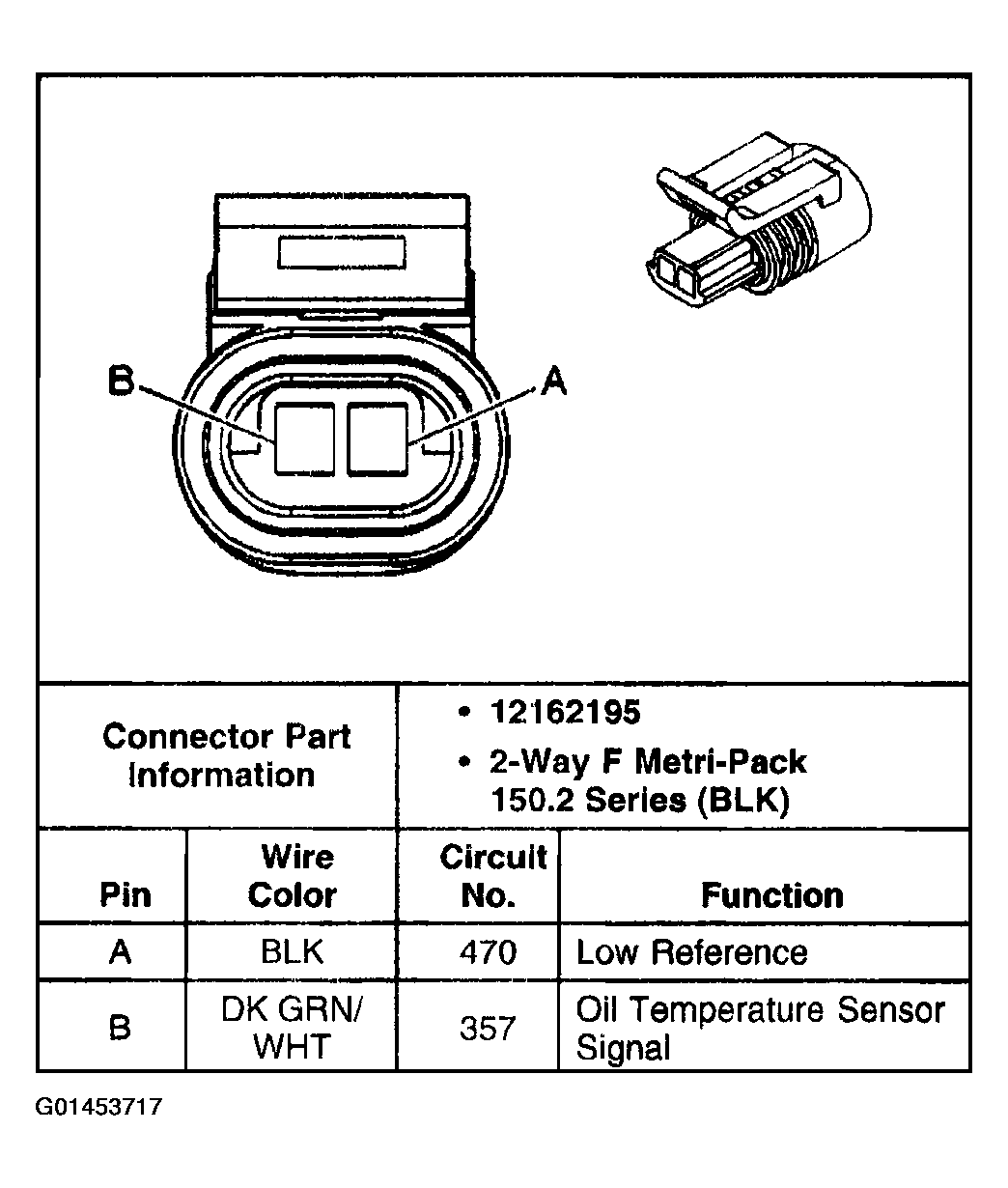

Fig 3: Engine Oil Temperature (EOT) Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.

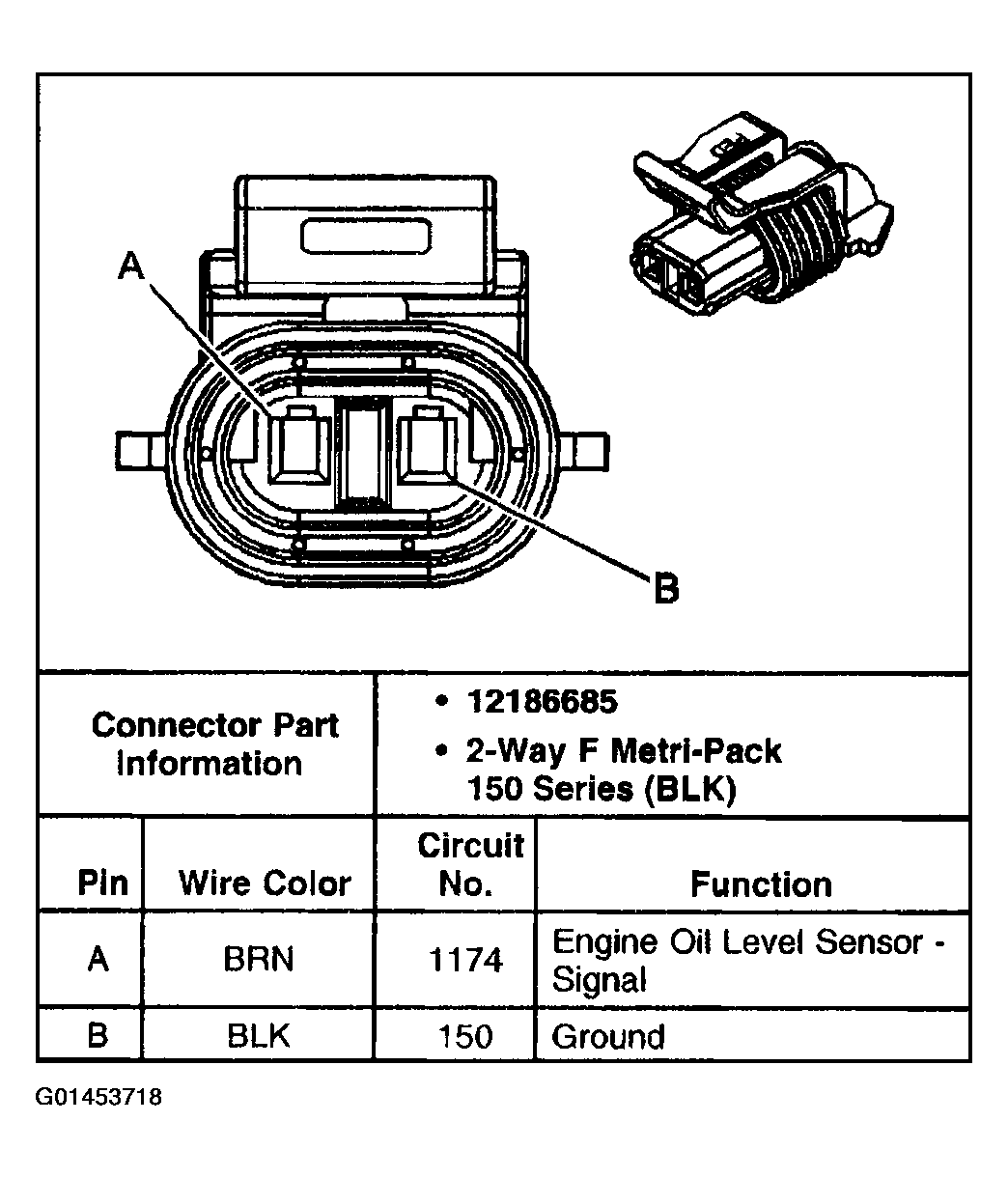

Fig 4: Engine Oil Level Switch Connector End View
Courtesy of GENERAL MOTORS CORP.

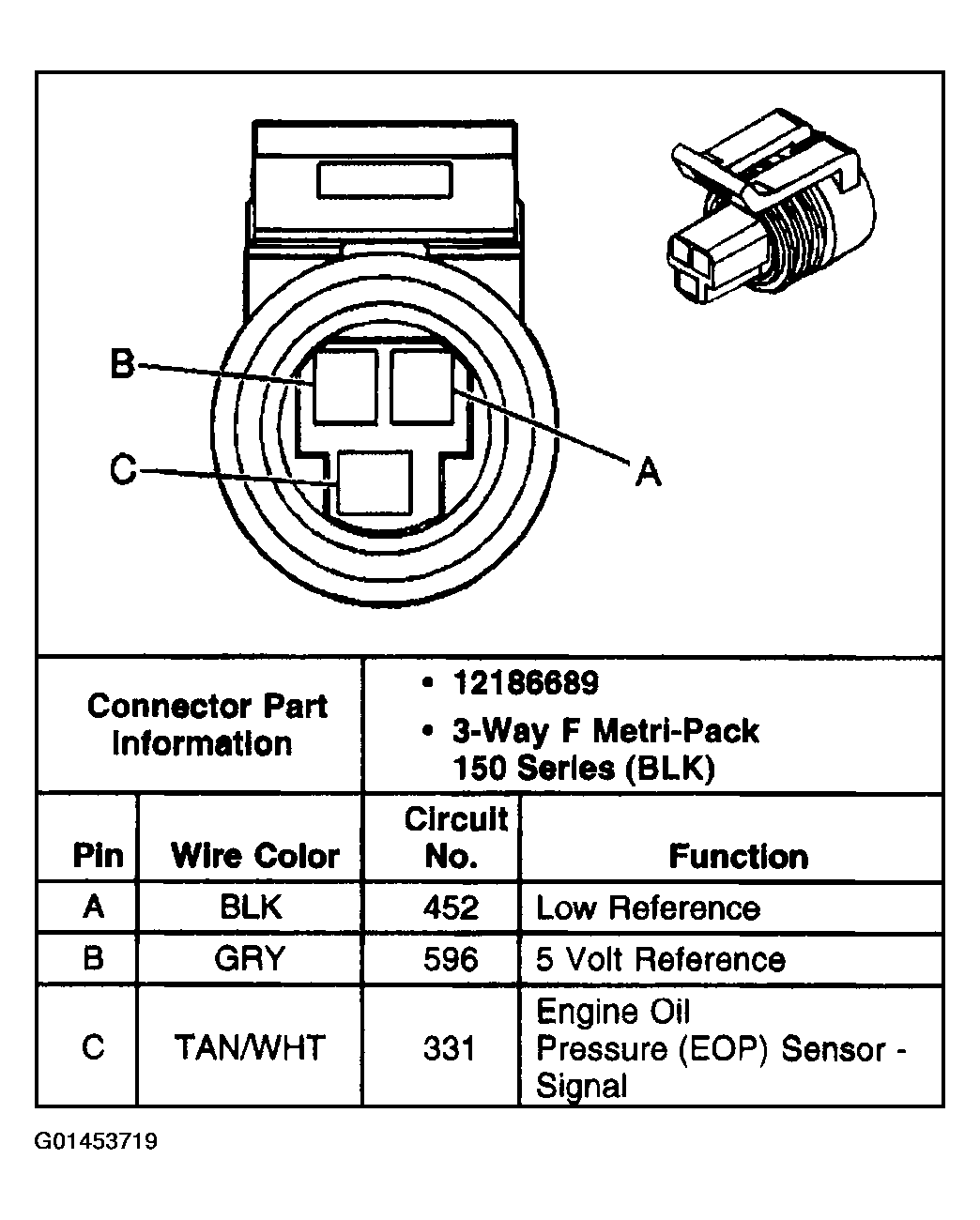

Fig 5: Engine Oil Pressure (EOP) Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.

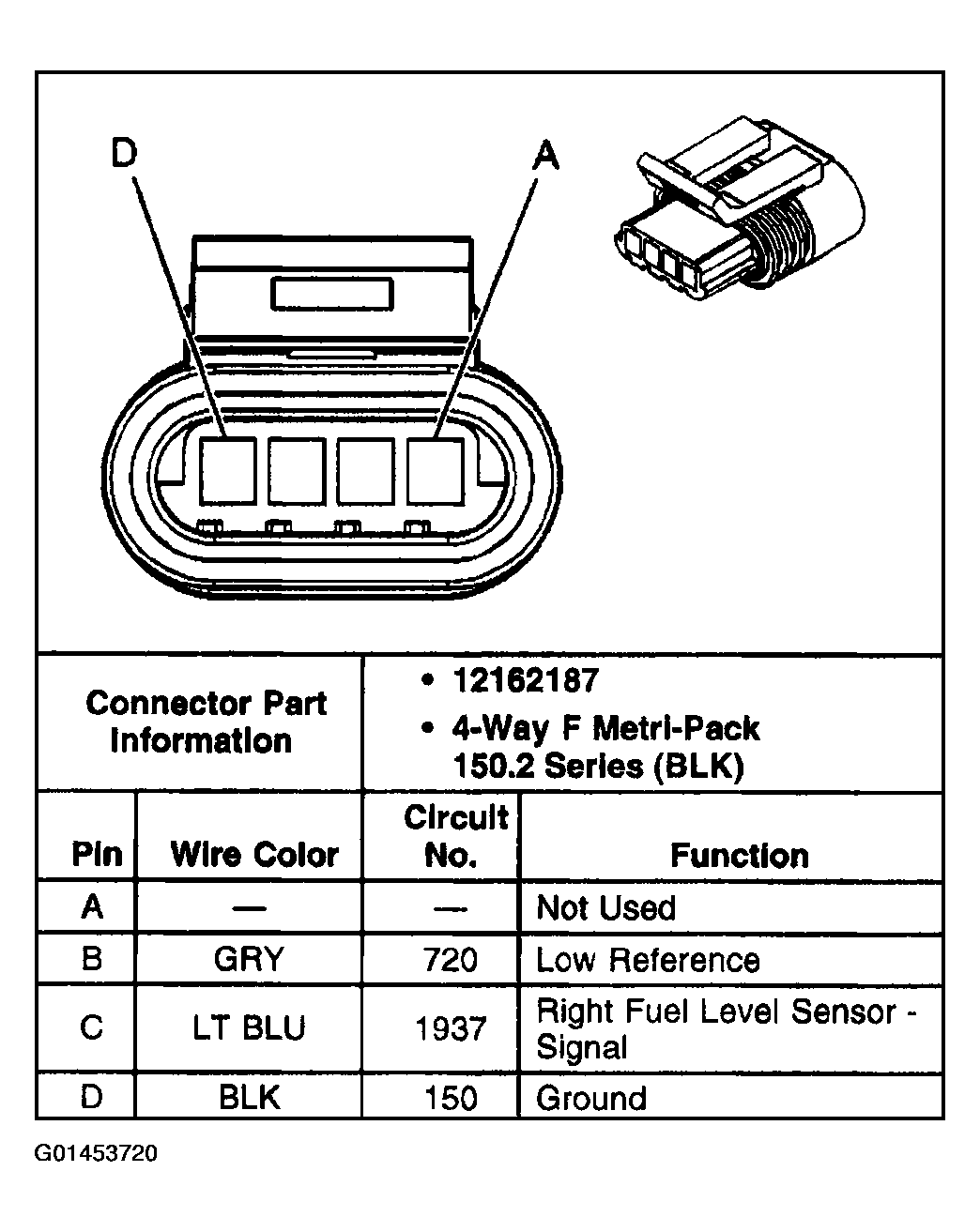

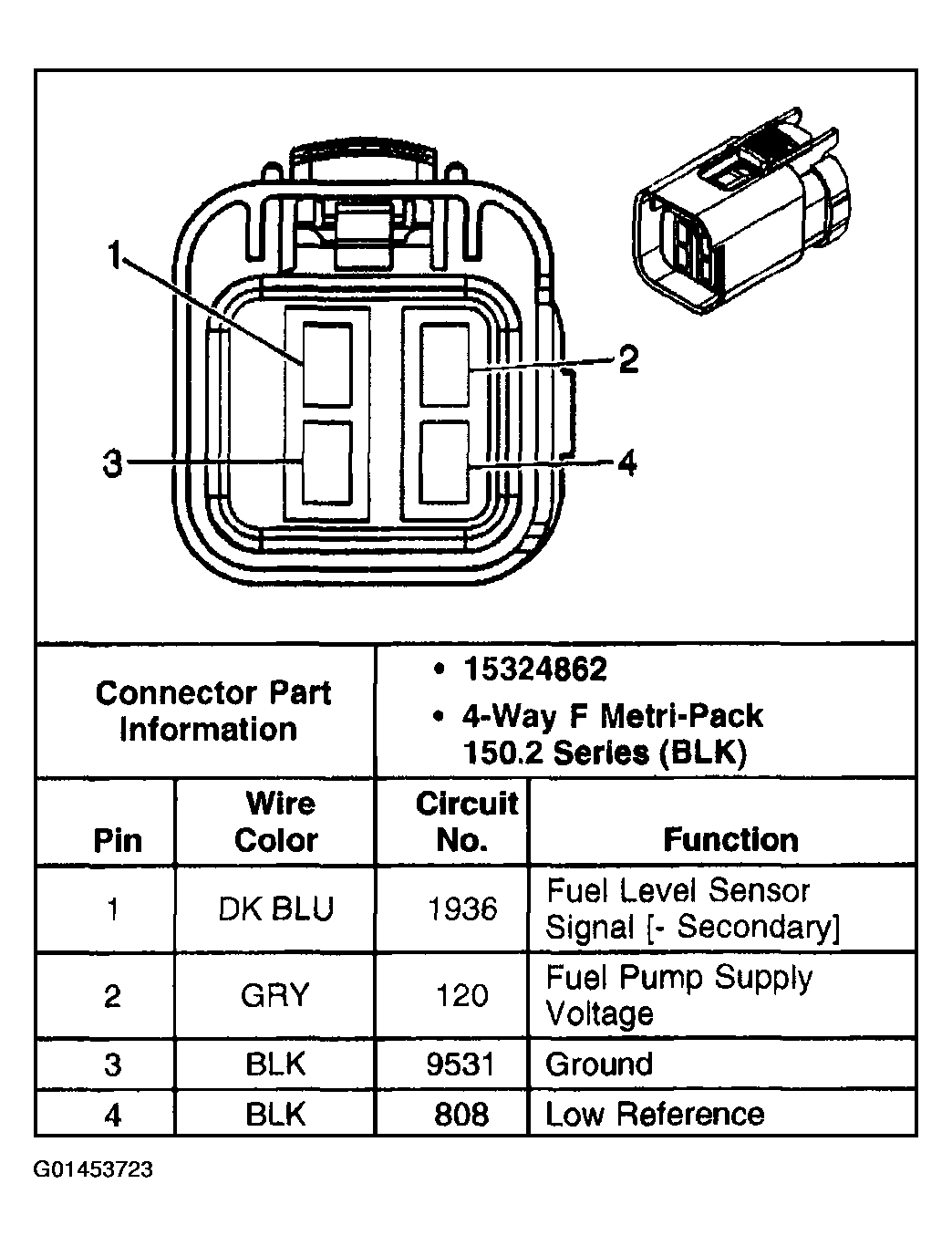

Fig 6: Fuel Level Sensor-Right (W/O FFS) Connector End View
Courtesy of GENERAL MOTORS CORP.

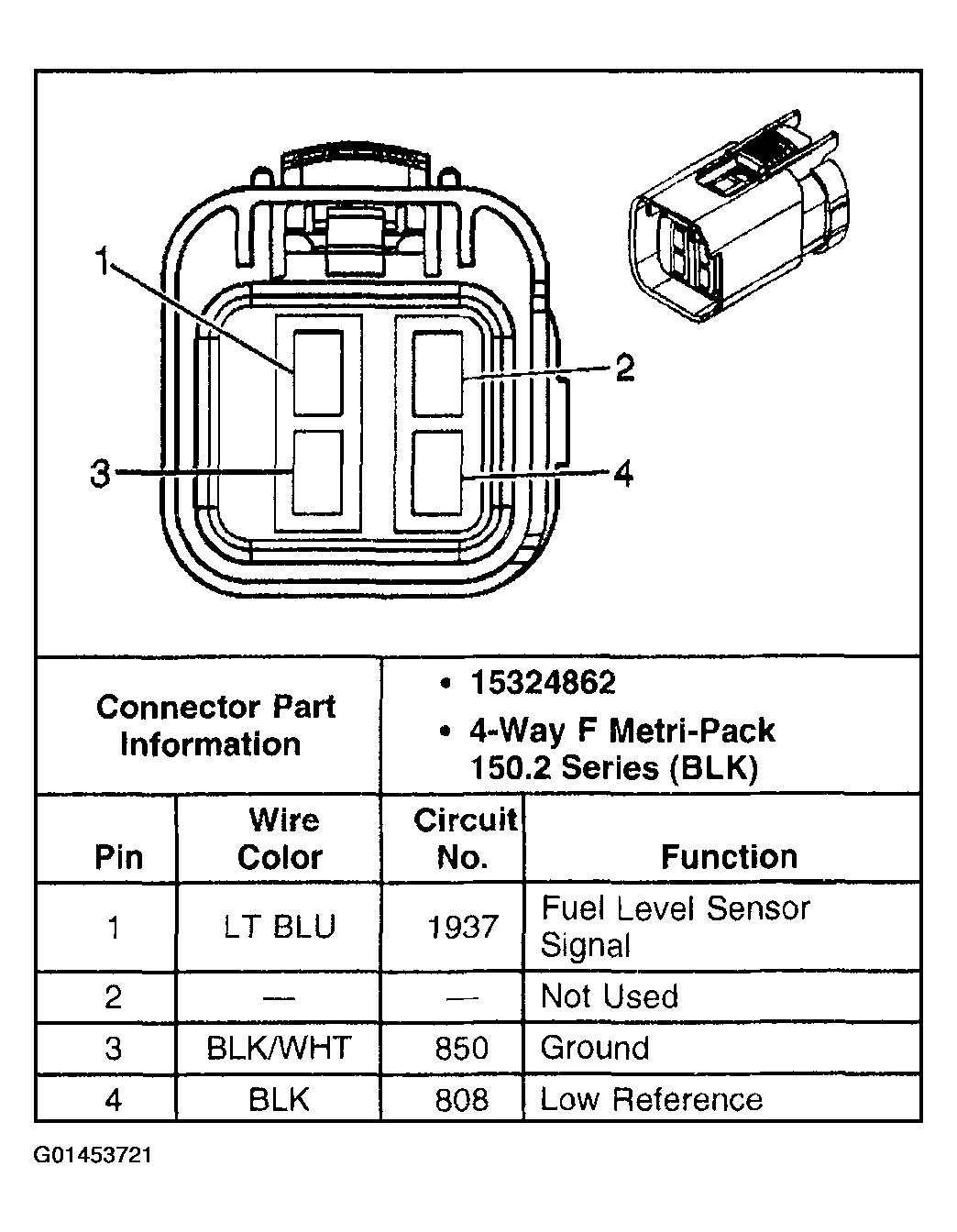

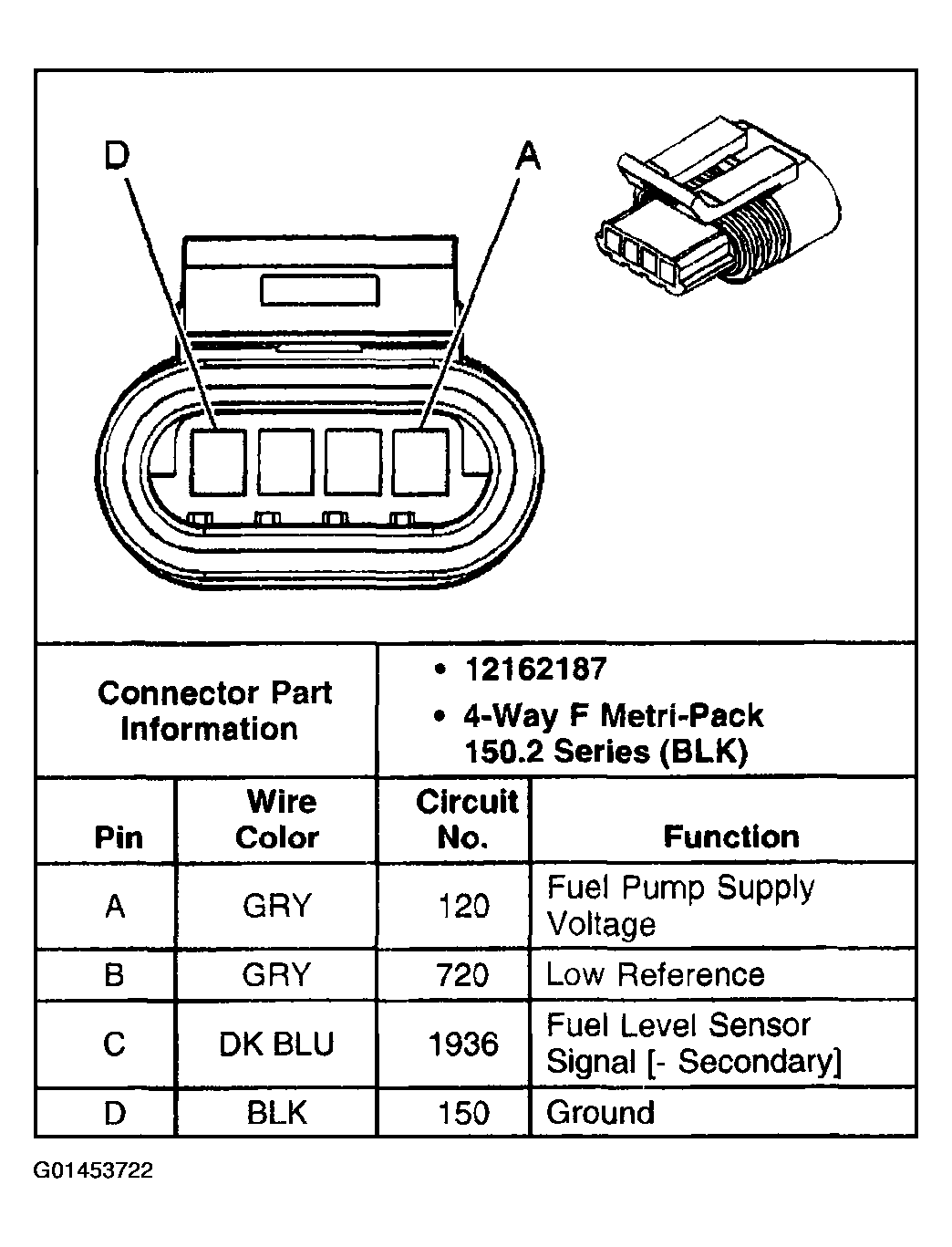

Fig 7: Fuel Level Sensor-Right (W/FFS) Connector End View
