Instrument Panel, Gages, and Console Component Views

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

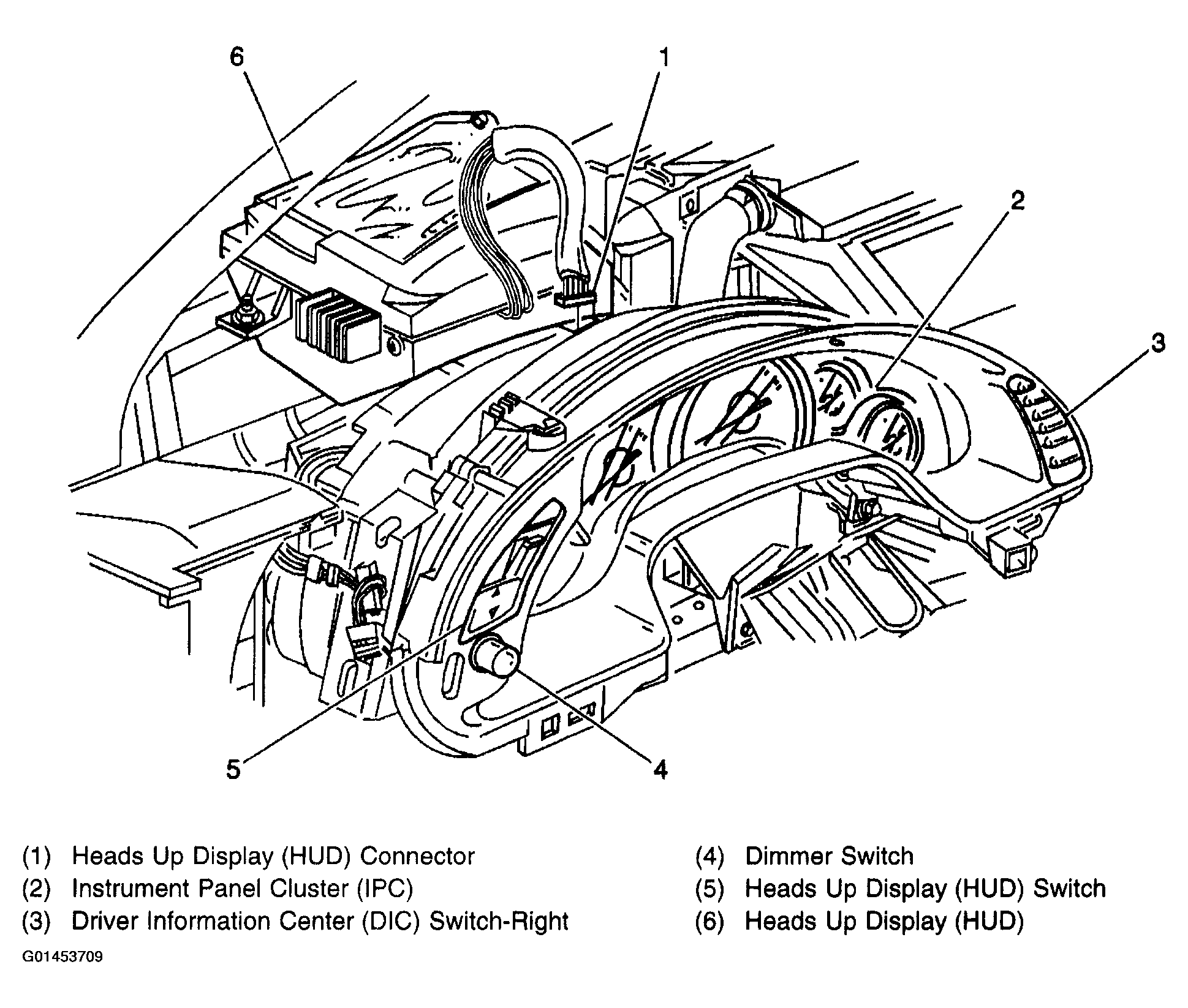

Fig 1: Top Of the Instrument Cluster Component Views

Courtesy of GENERAL MOTORS CORP.

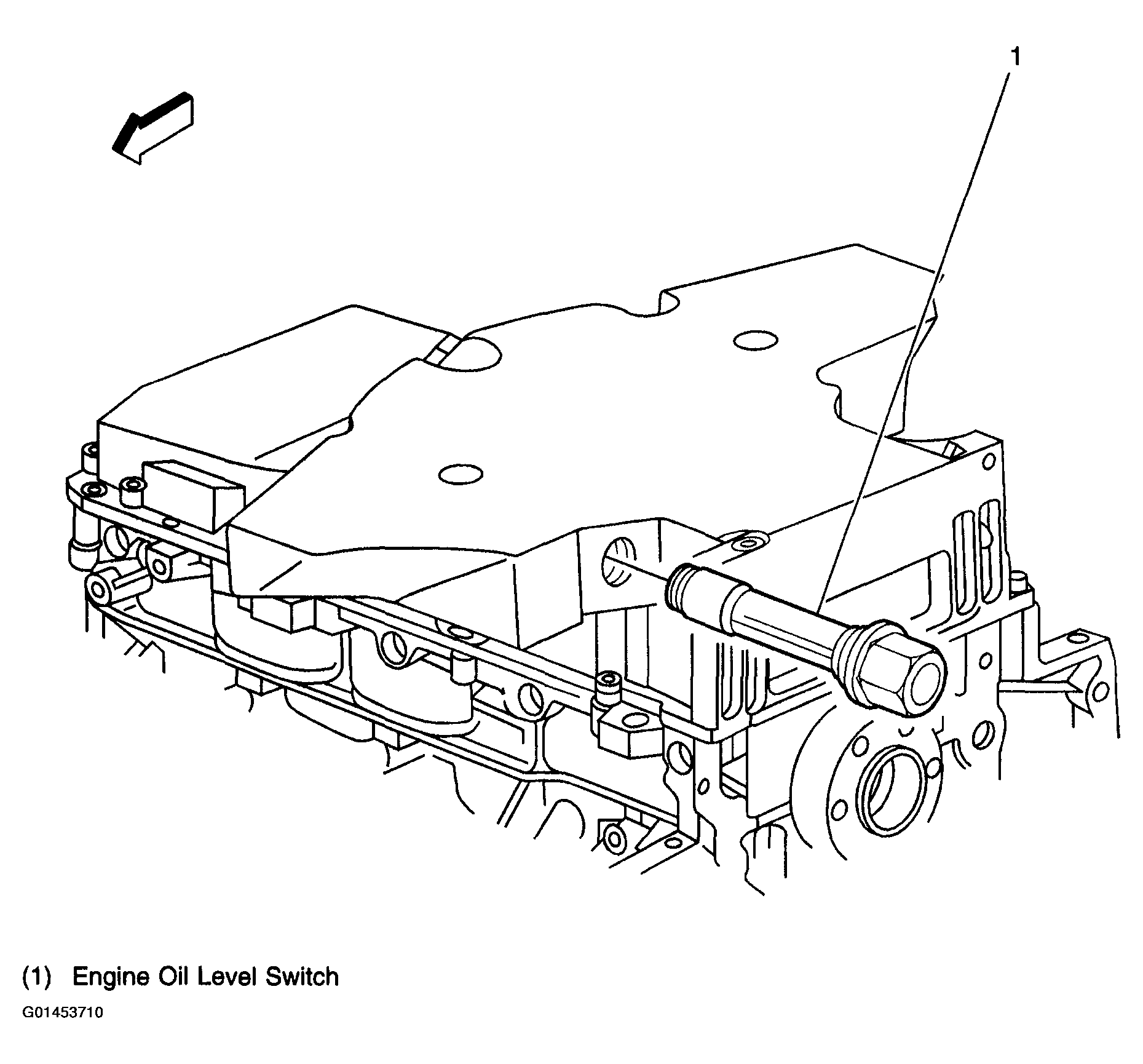

Fig 2: Engine Oil Level Switch

Courtesy of GENERAL MOTORS CORP.

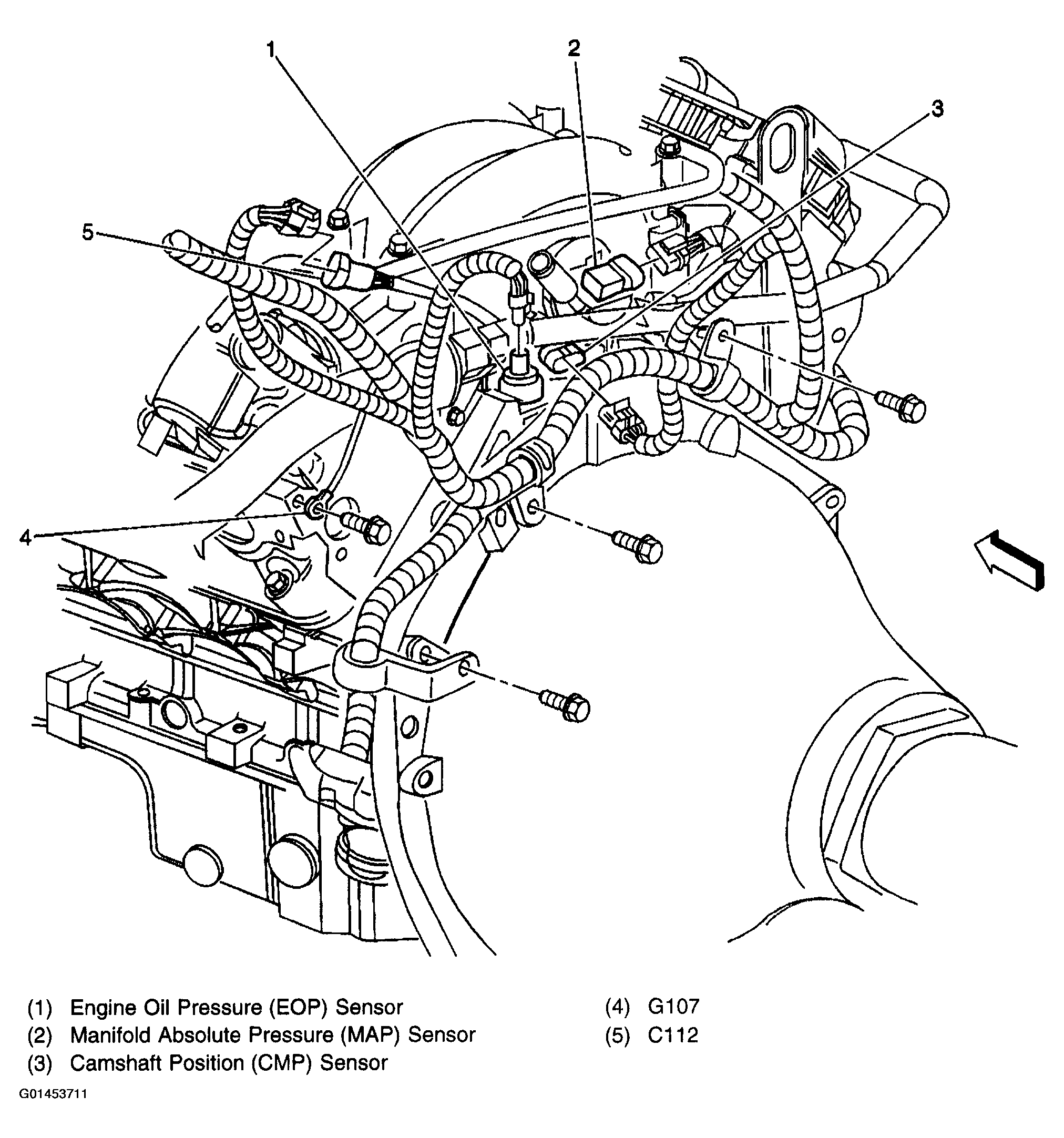

Fig 3: Rear Of Engine Component Views

Courtesy of GENERAL MOTORS CORP.

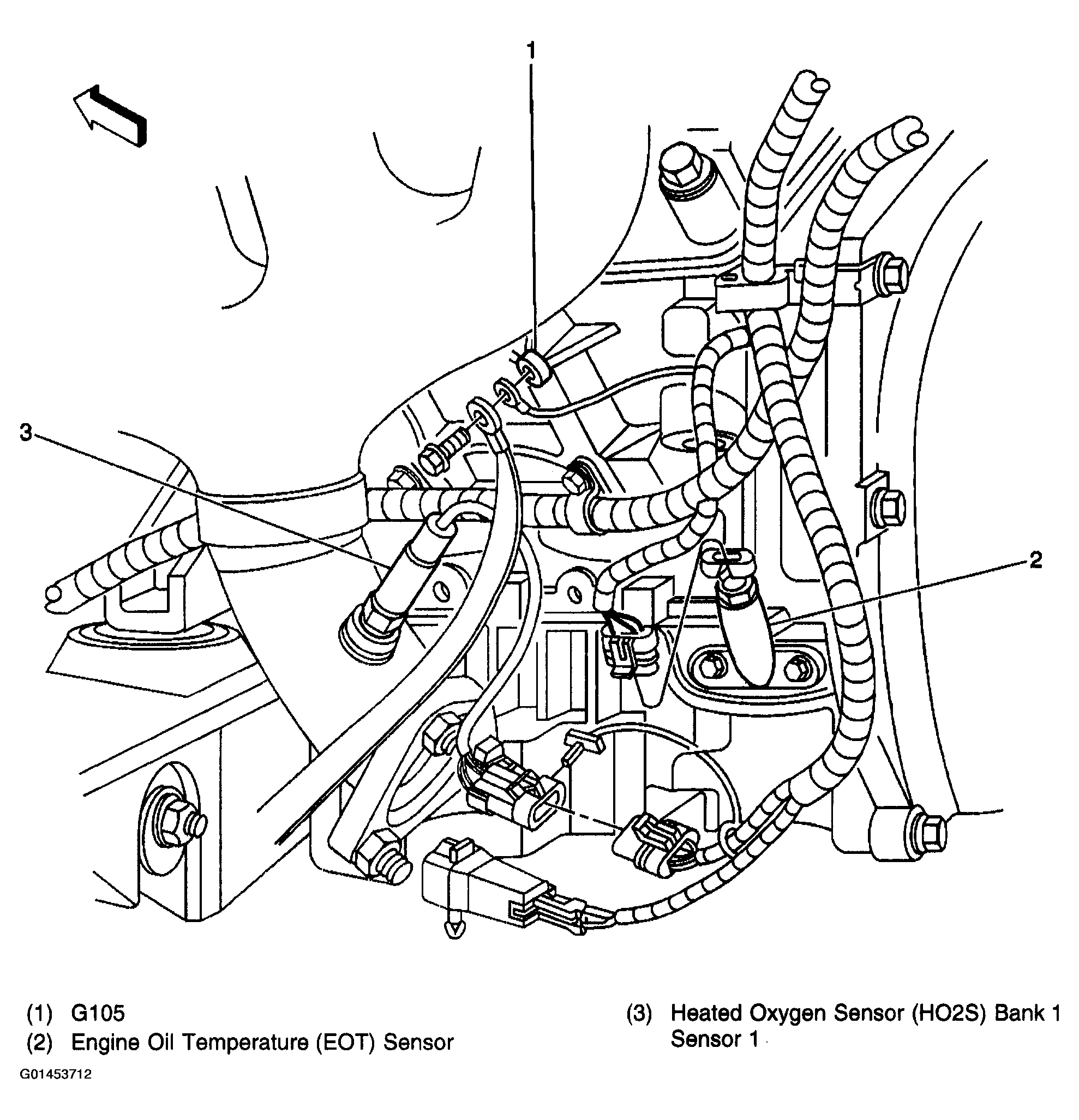

Fig 4: Lower Side Of Engine Component Views - Left

Courtesy of GENERAL MOTORS CORP.

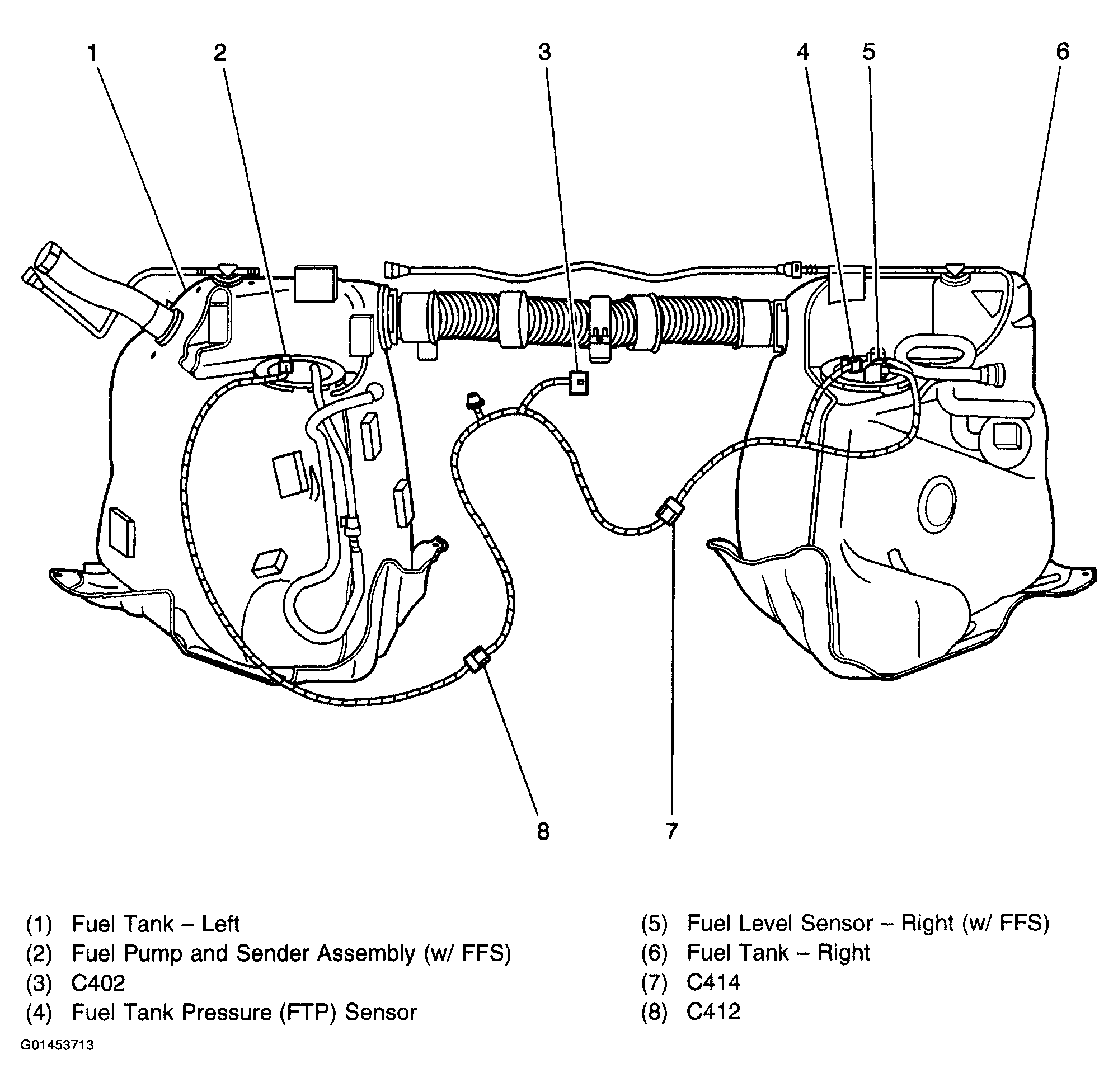

Fig 5: Fuel Tanks (W/FFS) Component Views

Courtesy of GENERAL MOTORS CORP.

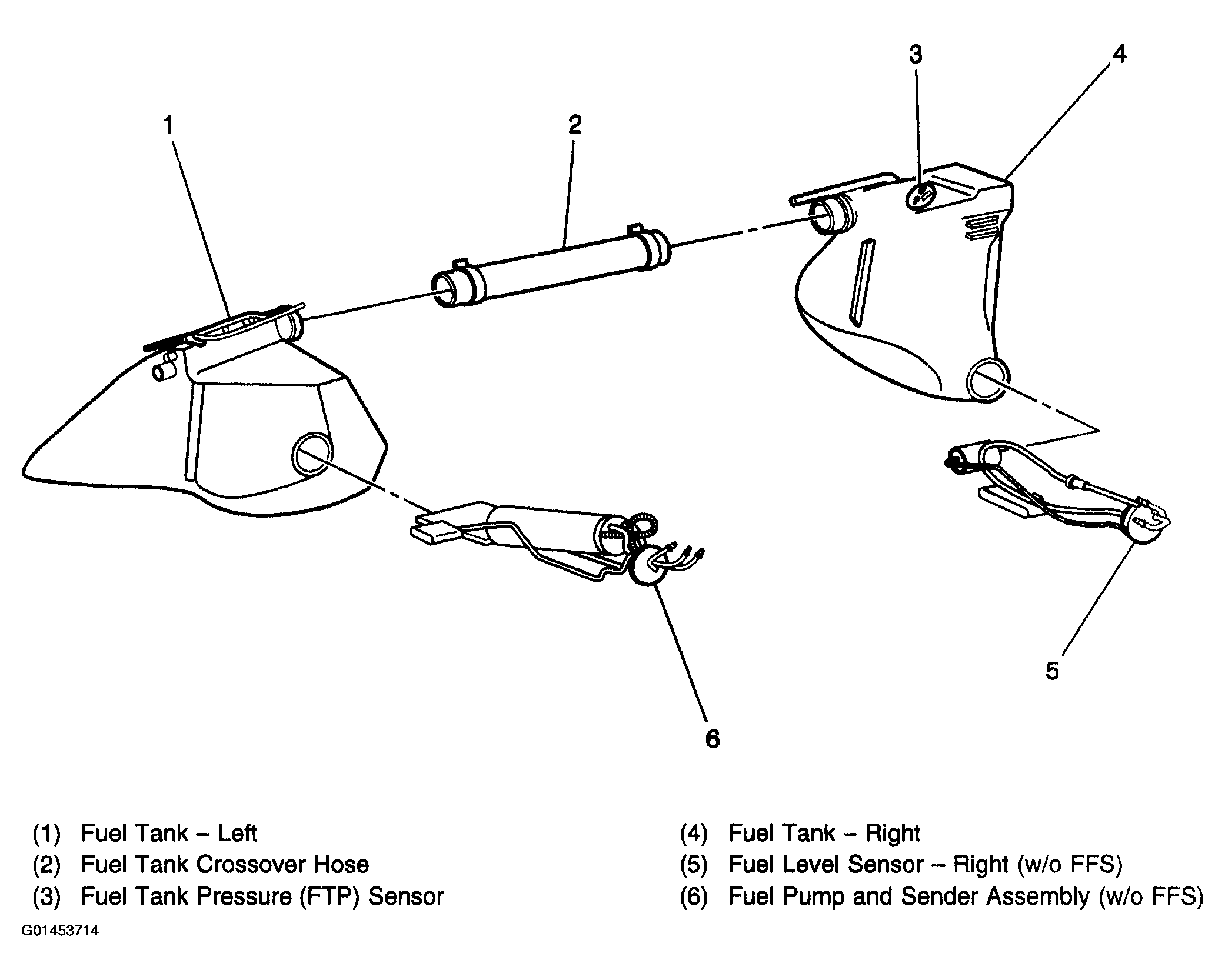

Fig 6: Fuel Tanks (W/O FFS) Component Views

Courtesy of GENERAL MOTORS CORP.
