Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical/audio connector to the rear speaker.
  2. Install the rear speaker into position.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the rear speaker retaining screws.

    Tighten

    Tighten the rear speaker retaining screws to 2.5 N.m (22 lb in).

  4. Install the rear compartment side trim panel. Refer to TRIM PANEL REPLACEMENT - REAR COMPARTMENT FRONT SIDE (COUPE) or TRIM PANEL REPLACEMENT - REAR COMPARTMENT FRONT SIDE (CONVERTIBLE) or TRIM PANEL REPLACEMENT - REAR COMPARTMENT FRONT SIDE (HARDTOP) in Interior Trim.

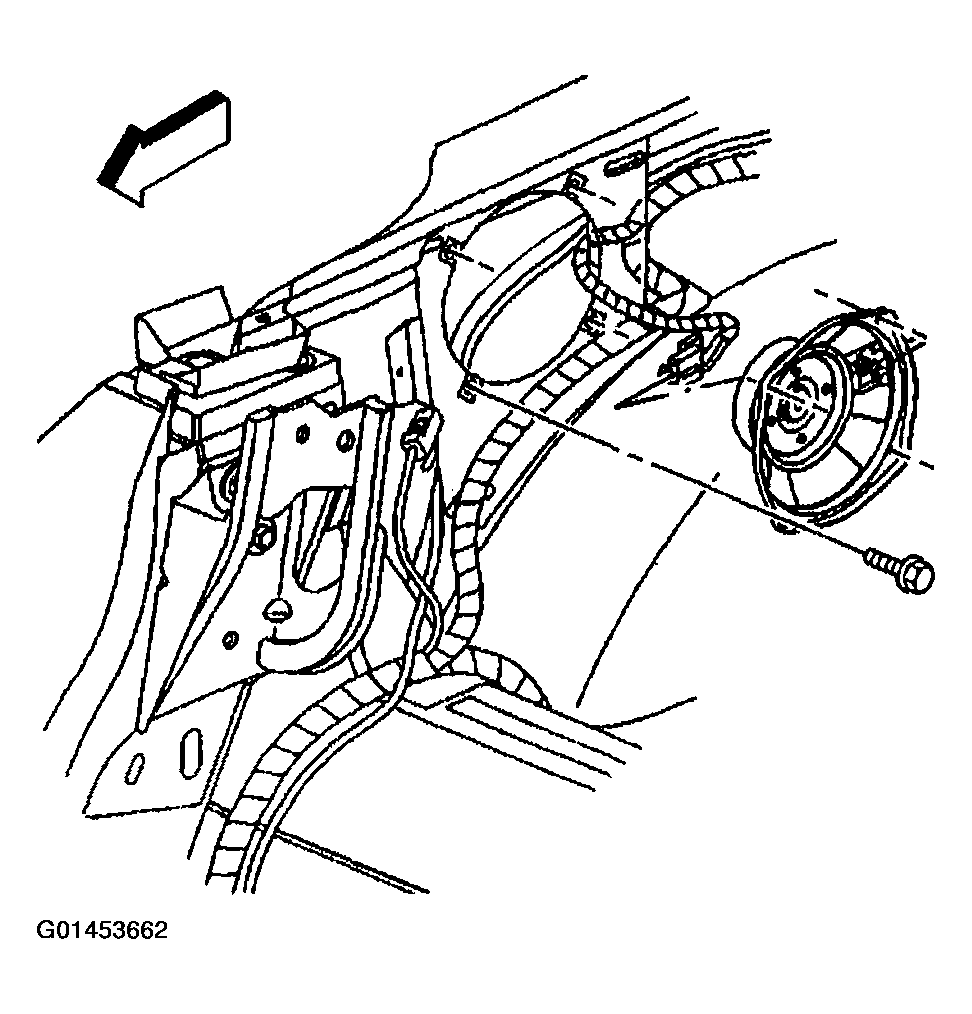

    Fig 1: Rear Speaker
    G01453662Courtesy of GENERAL MOTORS CORP.
