Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical/audio connector to the rear speaker.
Install the rear speaker into position.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the rear speaker retaining screws.
Finesse the rear compartment side trim panel carefully upward, rearward and outward slightly to access the upper speaker retaining screw.

Tighten

Tighten the rear speaker retaining screws to 2.5 N.m (22 lb in).

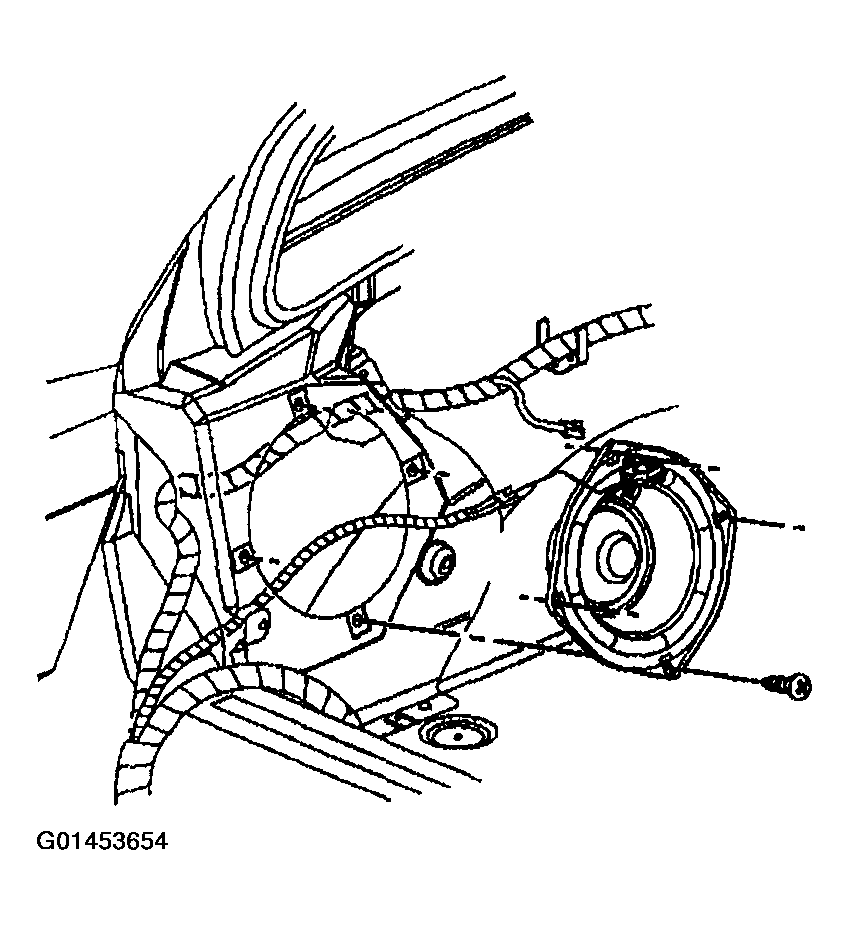

Fig 1: Rear Speaker
Courtesy of GENERAL MOTORS CORP.
Install the push-in fastener (in the lower corner of the speaker opening) retaining the rear compartment side trim panel.
Insert the rear speaker grille lower retaining tab into position.
Raise the speaker grille and align the locking tabs.
Carefully push the tabs in to lock.
Close the rear lift window panel.

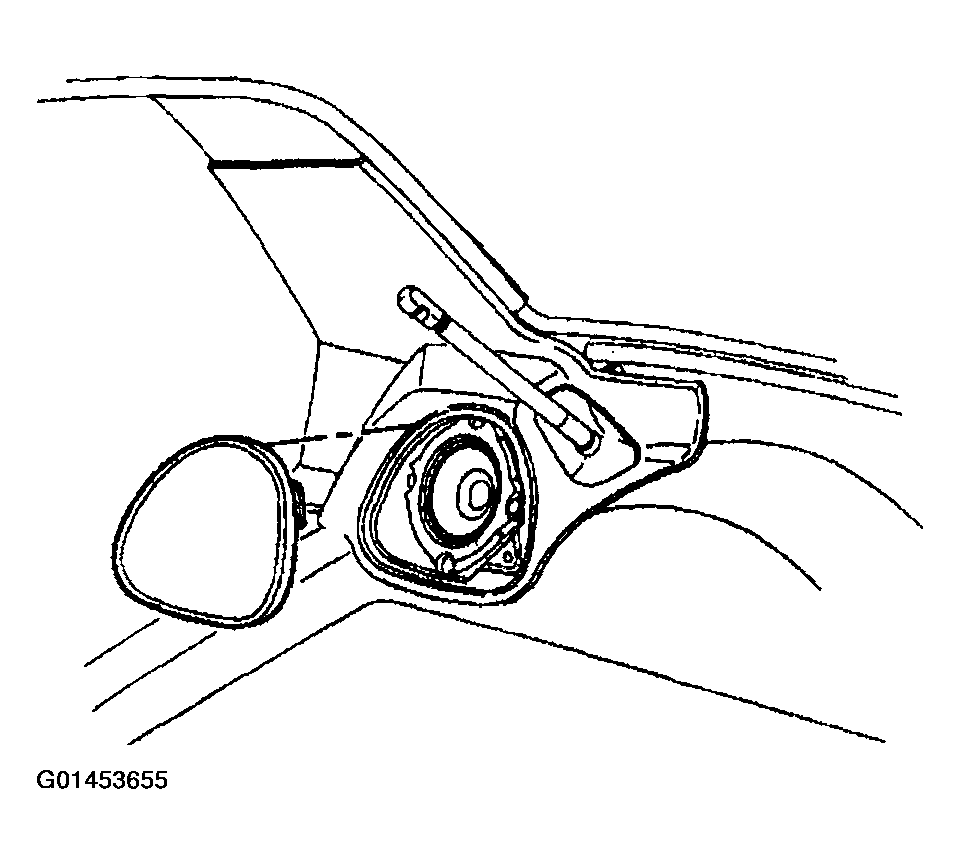

Fig 2: Inserting Rear Speaker Grille Lower Retaining Tab Into Position
Courtesy of GENERAL MOTORS CORP.
