Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and position the convertible top with the 1 and 5 bows upright.
  2. Raise or leave raised, the folding top stowage compartment lid.

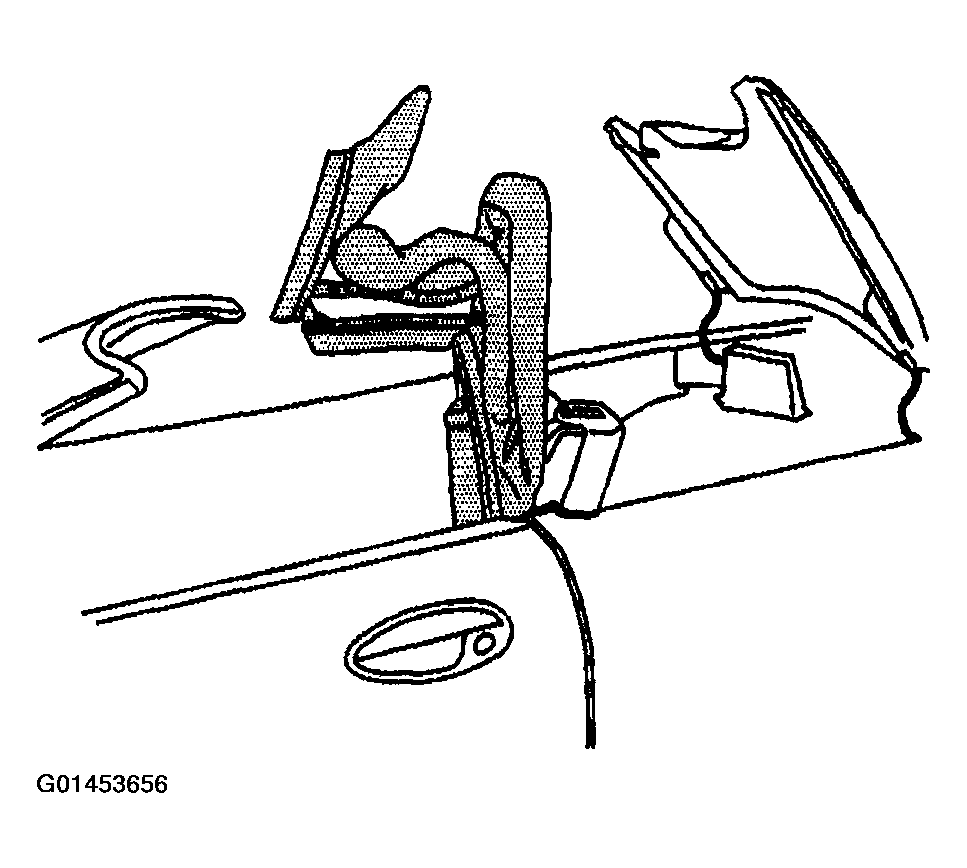

    Fig 1: Raising & Positioning Convertible Top With 1 & 5 Bows Upright
    G01453656Courtesy of GENERAL MOTORS CORP.
  3. Remove the push-in fastener from the rear compartment side trim panel.
  4. Remove the rear compartment side trim panel.

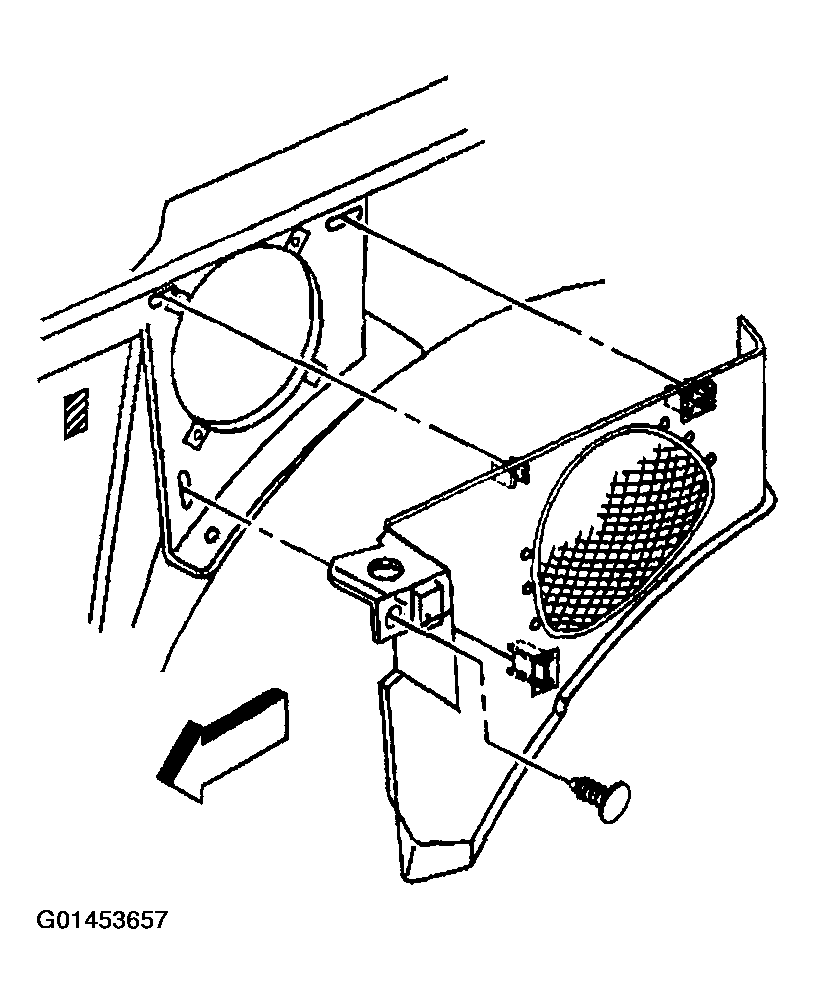

    Fig 2: Rear Compartment Side Trim Panel
    G01453657Courtesy of GENERAL MOTORS CORP.
  5. Remove the rear speaker retaining screws.
  6. Begin to remove the rear speaker in order to access the electrical/audio connector.
  7. Disconnect the electrical/audio connector from the rear speaker.
  8. Remove the rear speaker.

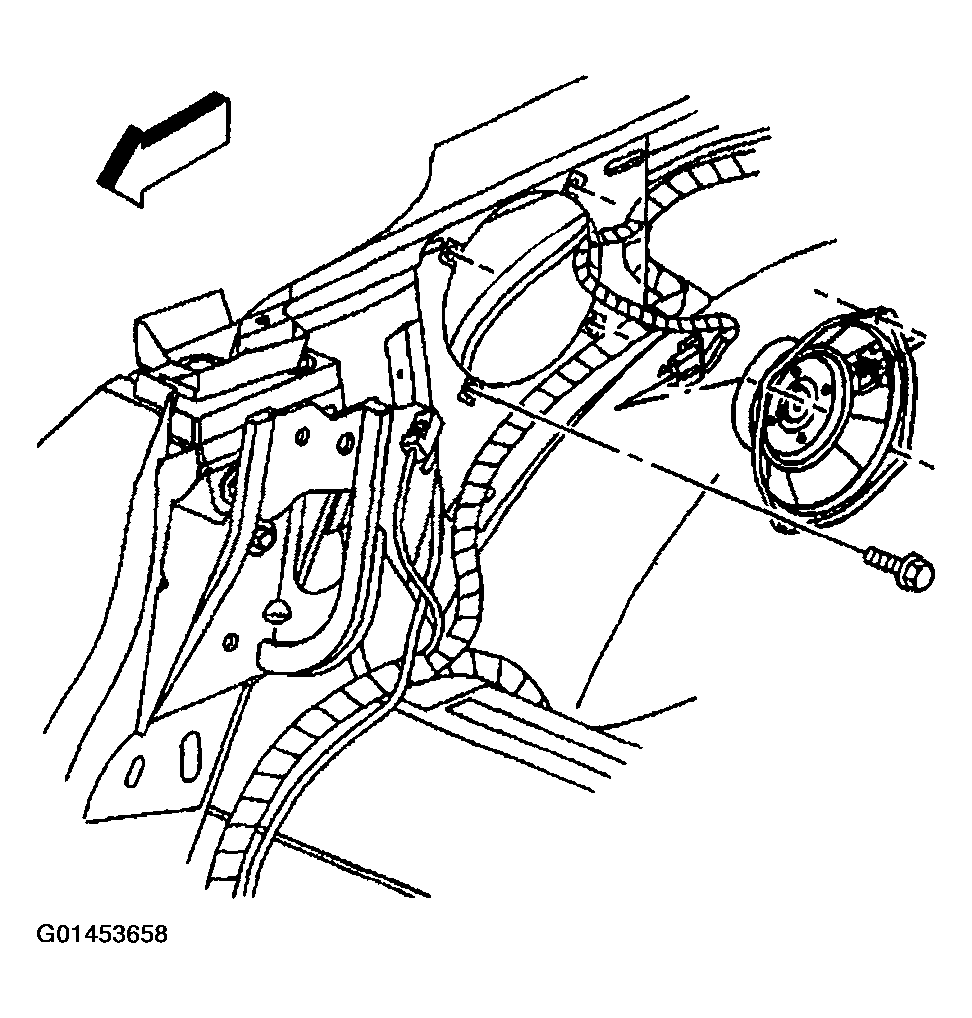

    Fig 3: Rear Speaker
    G01453658Courtesy of GENERAL MOTORS CORP.
