Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical/audio connector to the rear speaker.
  2. Install the rear speaker into position.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the rear speaker retaining screws.

    Tighten

    Tighten the rear speaker retaining screws to 2.5 N.m (22 lb in).

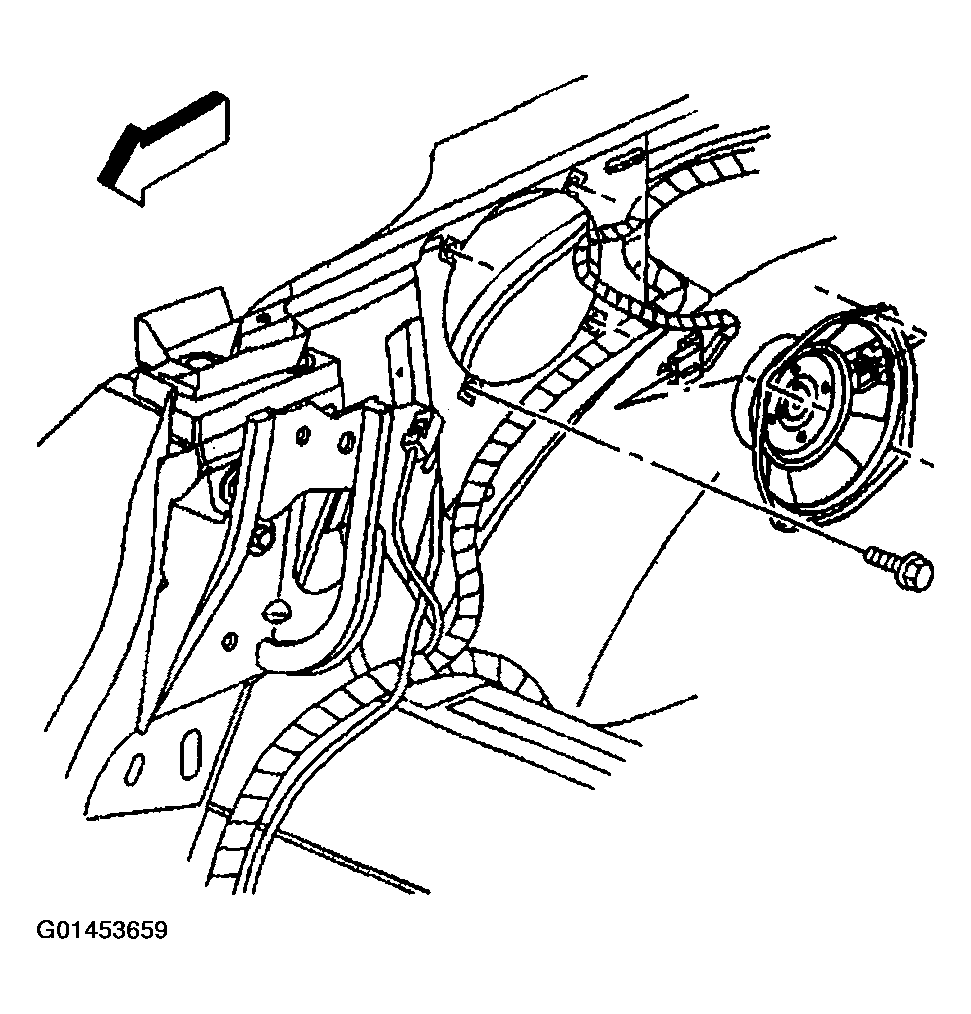

    Fig 1: Rear Speaker
    G01453659Courtesy of GENERAL MOTORS CORP.
  4. Install the rear compartment side trim panel.
  5. Install the push-in fastener to the rear compartment side trim panel.
  6. Lower the folding top stowage compartment lid.
  7. Raise the convertible top.

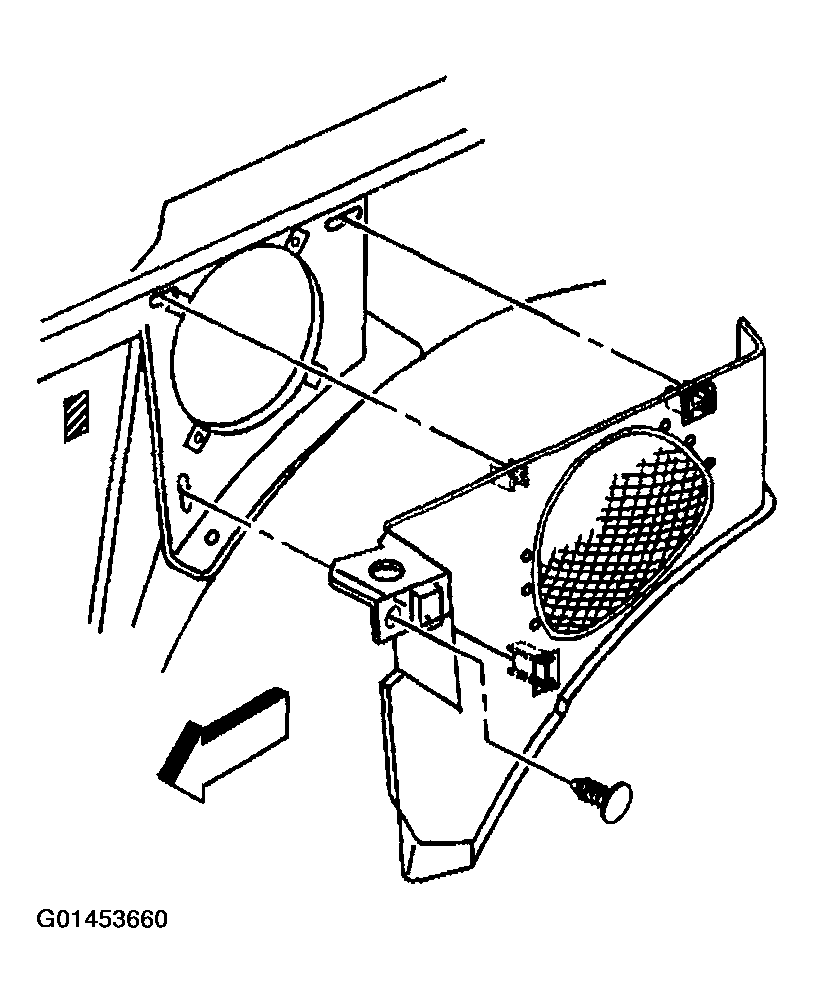

    Fig 2: Rear Compartment Side Trim Panel
    G01453660Courtesy of GENERAL MOTORS CORP.
