Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Important: Be sure to use tape on the contacting surfaces of the tool used in order to protect the paint on the antenna mast.

Install tape onto the contacting surfaces of the tool to be used in loosening the radio fixed antenna mast.
Using the taped tool, loosen the fixed antenna mast.
Remove the radio fixed antenna mast from the radio fixed antenna.

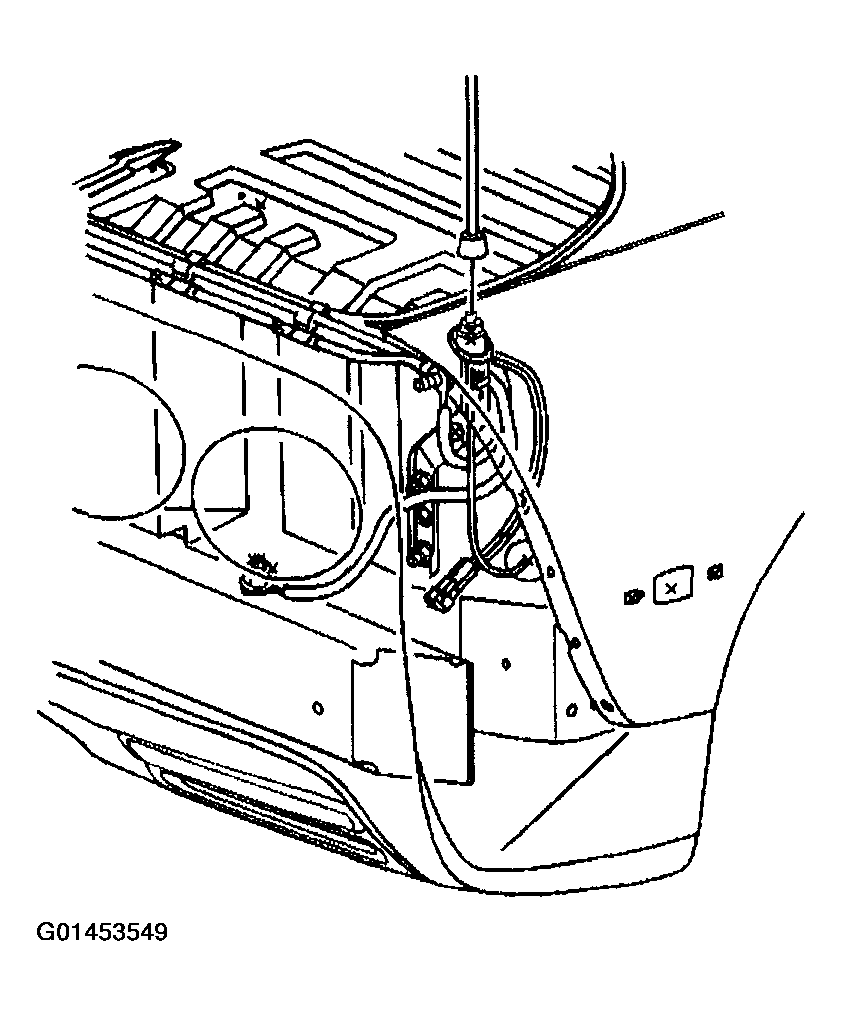

Fig 1: Removing Radio Fixed Antenna Mast From Radio Fixed Antenna
Courtesy of GENERAL MOTORS CORP.
