Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear lift window antenna coaxial extension cable push-in fastener retainers to the front seat back reinforcement panel and along the lock pillar.
  2. Connect the coaxial extension cable to the antenna module.

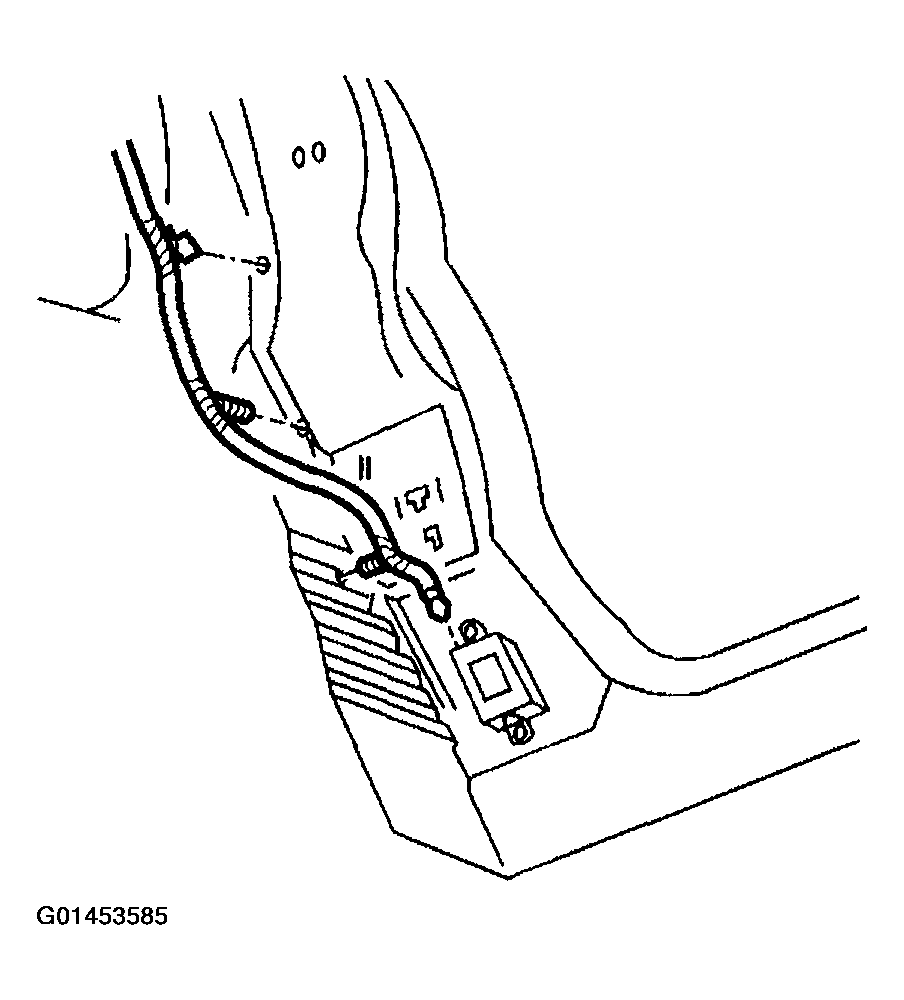

    Fig 1: Connecting Coaxial Extension Cable To Antenna Module
    G01453585Courtesy of GENERAL MOTORS CORP.
  3. Working upward along the roof bow, install the remaining coaxial extension cable push-in fastener retainers.
  4. Connect the coaxial extension cable to the antenna buffer.
  5. Install the lock pillar trim panel. Refer to TRIM REPLACEMENT - LOCK PILLAR (UPPER CONVERTIBLE) or TRIM REPLACEMENT - LOCK PILLAR (COUPE) or TRIM REPLACEMENT - LOCK PILLAR (LOWER CONVERTIBLE AND HARD TOP) in Interior Trim.
  6. Install the rear compartment side trim panel. Refer to TRIM PANEL REPLACEMENT - REAR COMPARTMENT FRONT SIDE (COUPE) or TRIM PANEL REPLACEMENT - REAR COMPARTMENT FRONT SIDE (CONVERTIBLE) or TRIM PANEL REPLACEMENT - REAR COMPARTMENT FRONT SIDE (HARDTOP) in Interior Trim.
  7. Install the roof bow interior trim panel. Refer to TRIM PANEL REPLACEMENT - REAR ROOF BOW in Interior Trim.

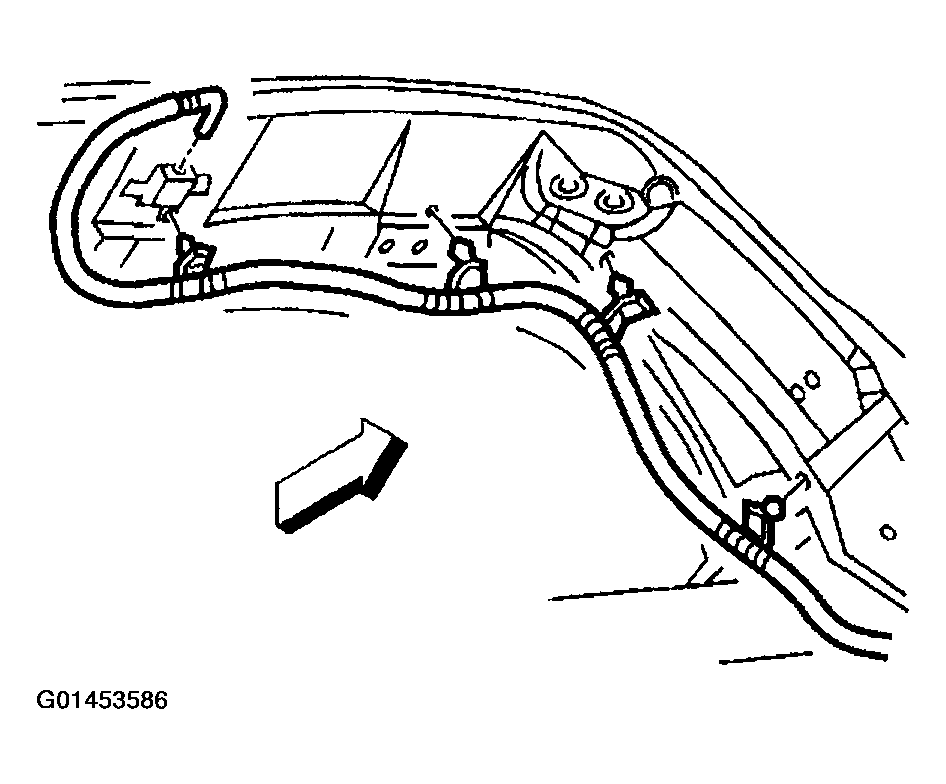

    Fig 2: Coaxial Extension Cable Push-In Fastener Retainers
    G01453586Courtesy of GENERAL MOTORS CORP.
