Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the fixed antenna coaxial extension cable to the vehicle.
  2. Install the radio control. Refer to RADIO REPLACEMENT  .

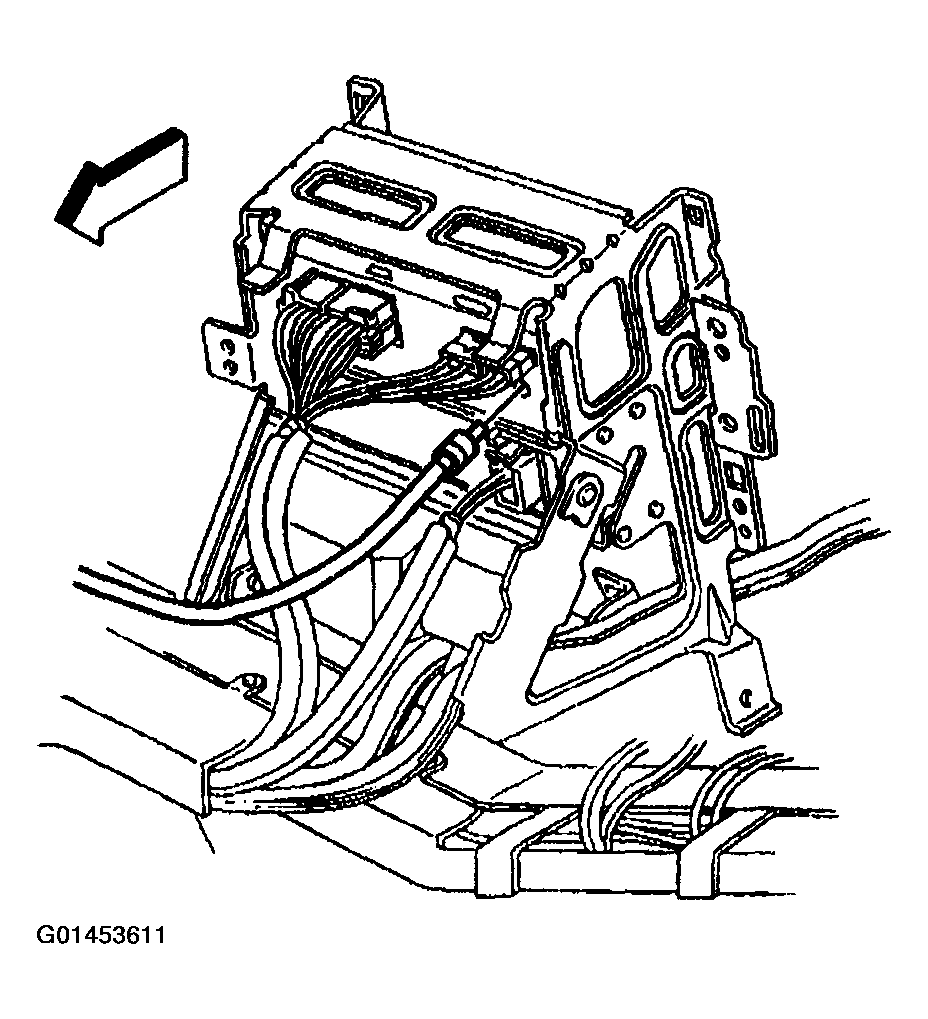

    Fig 1: Positioning Fixed Antenna Coaxial Extension Cable To Vehicle
    G01453611Courtesy of GENERAL MOTORS CORP.
  3. Secure the fixed antenna coaxial extension cable retainer to the IP lower support beam.
  4. Install the IP right lower insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in Instrument Panel, Gages and Console.

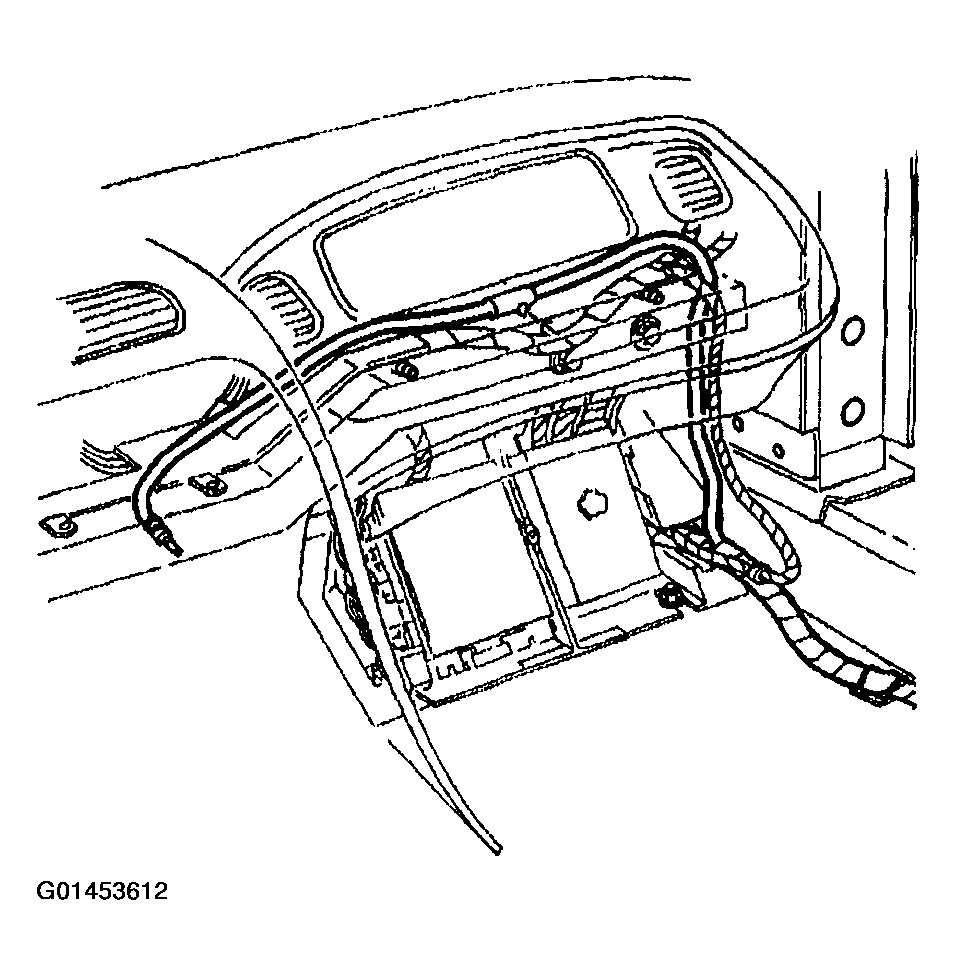

    Fig 2: Fixed Antenna Coaxial Extension Cable Retainer
    G01453612Courtesy of GENERAL MOTORS CORP.
  5. Using tape, secure the fixed antenna coaxial extension cable to the front body wiring harness.
  6. Secure the front body wiring harness to the body retainers.
  7. Secure the front body wiring harness retainers to the lock pillar and the floor panel support.

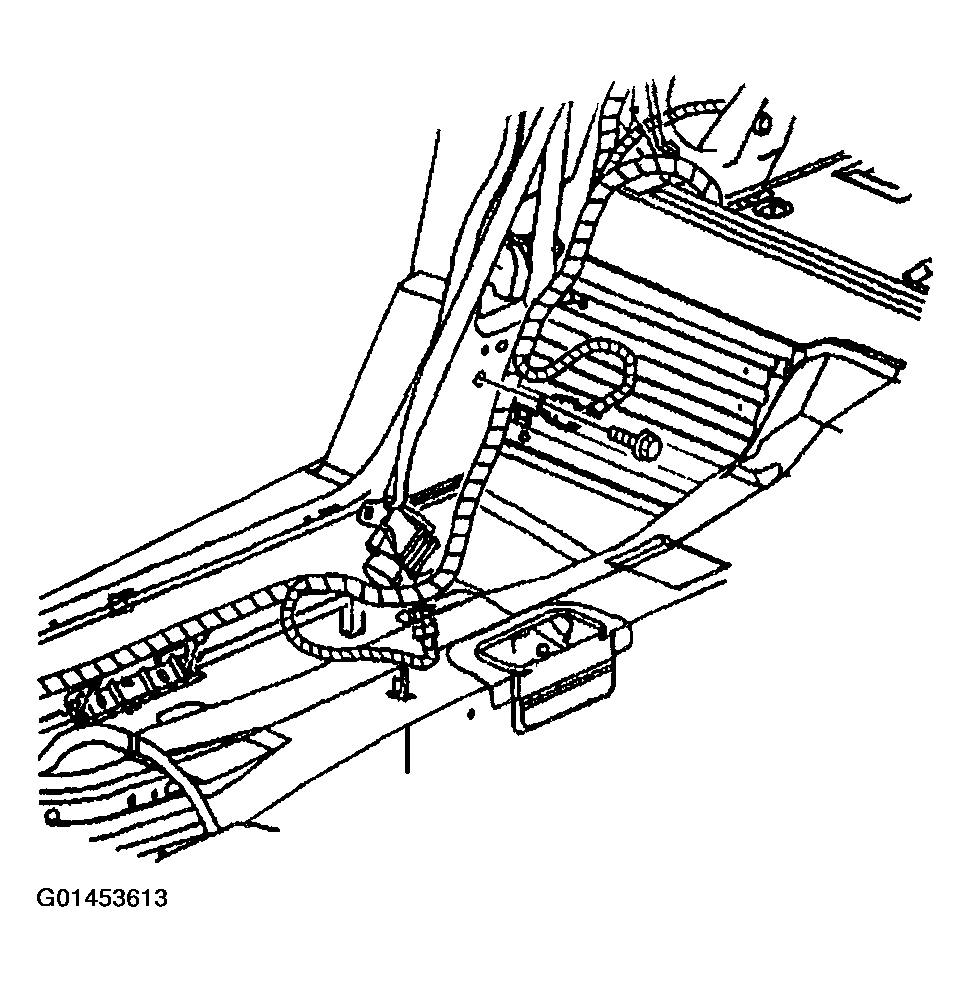

    Fig 3: Securing Front Body Wiring Harness Retainers To Lock Pillar
    G01453613Courtesy of GENERAL MOTORS CORP.
  8. Install the right lock pillar trim panel. Refer to TRIM REPLACEMENT - LOCK PILLAR (UPPER CONVERTIBLE) or TRIM REPLACEMENT - LOCK PILLAR (COUPE) or TRIM REPLACEMENT - LOCK PILLAR (LOWER CONVERTIBLE AND HARD TOP) in Interior Trim.
  9. Install the right door sill plate. Refer to DOOR SILL PLATE REPLACEMENT in Interior Trim.
  10. Position the front body wiring harness to the rear of the vehicle.
  11. Secure the front body wiring harness retainers to the rear speaker housing.
  12. Install the rear compartment right side trim panel. Refer to TRIM PANEL REPLACEMENT - REAR COMPARTMENT FRONT SIDE (COUPE) or TRIM PANEL REPLACEMENT - REAR COMPARTMENT FRONT SIDE (CONVERTIBLE) or TRIM PANEL REPLACEMENT - REAR COMPARTMENT FRONT SIDE (HARDTOP) in Interior Trim.
  13. Secure the front body wiring harness to the retaining clip on the rear compartment side wall.
  14. Connect the fixed antenna coaxial cable to the fixed antenna coaxial extension cable.

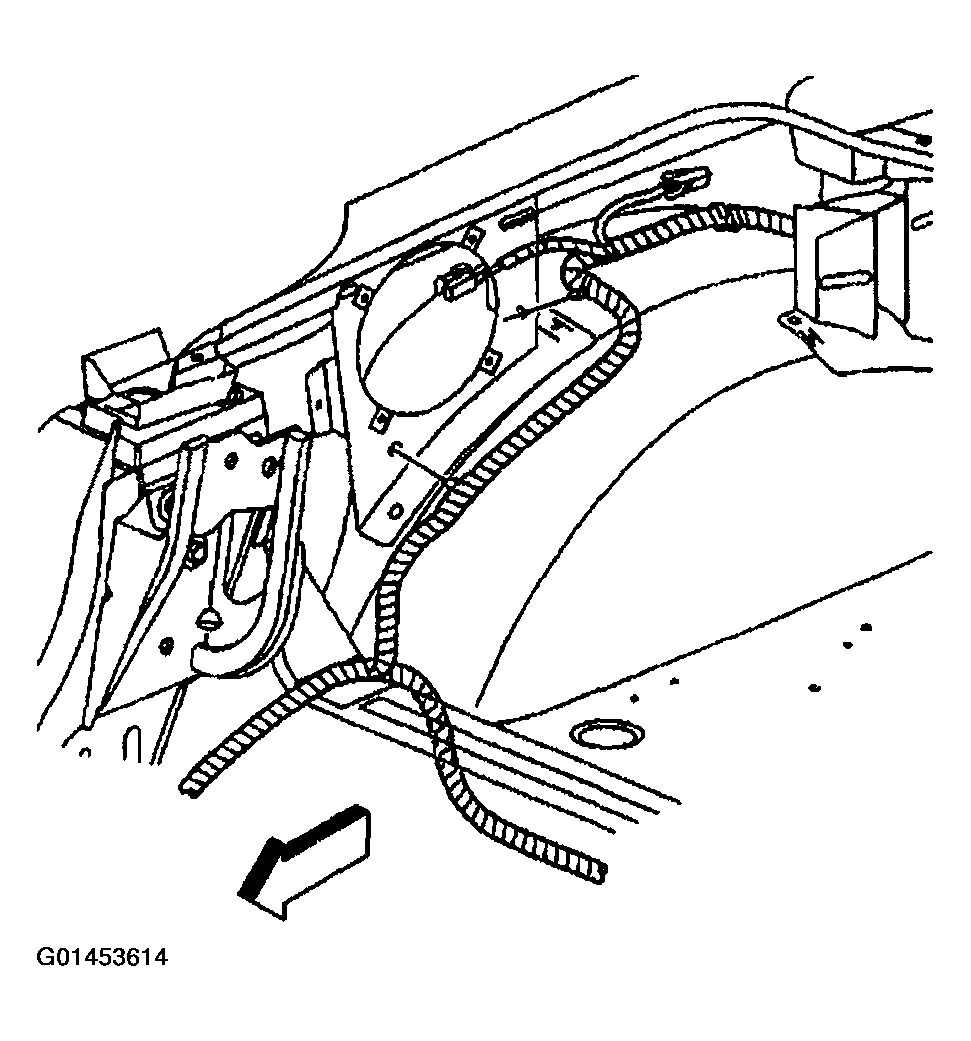

    Fig 4: Positioning Front Body Wiring Harness To Rear Of Vehicle
    G01453614Courtesy of GENERAL MOTORS CORP.

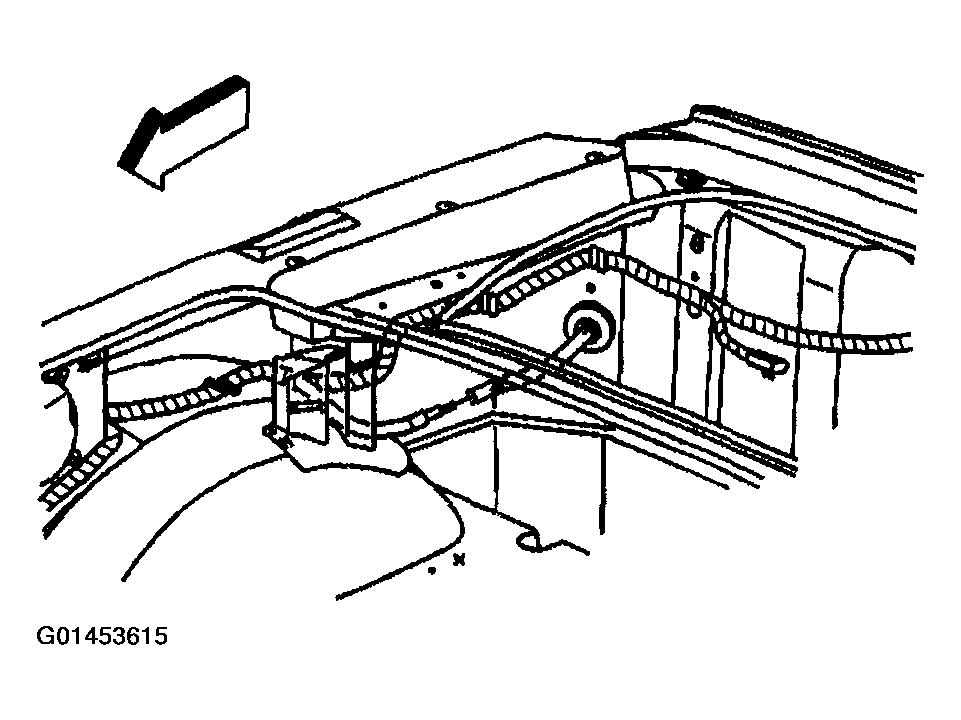

    Fig 5: Securing Front Body Wiring Harness To Retaining Clip
    G01453615Courtesy of GENERAL MOTORS CORP.
  15. Connect the front body wiring harness connectors to the decklid latch and the remote CD changer, if equipped.
  16. Install the rear carpet trim panel. Refer to TRIM PANEL CARPET - REAR COMPARTMENT REAR CENTER (CONVERTIBLE) or TRIM PANEL CARPET - REAR COMPARTMENT REAR CENTER (COUPE) or TRIM PANEL CARPET - REAR COMPARTMENT REAR CENTER (HARDTOP) in Interior Trim.

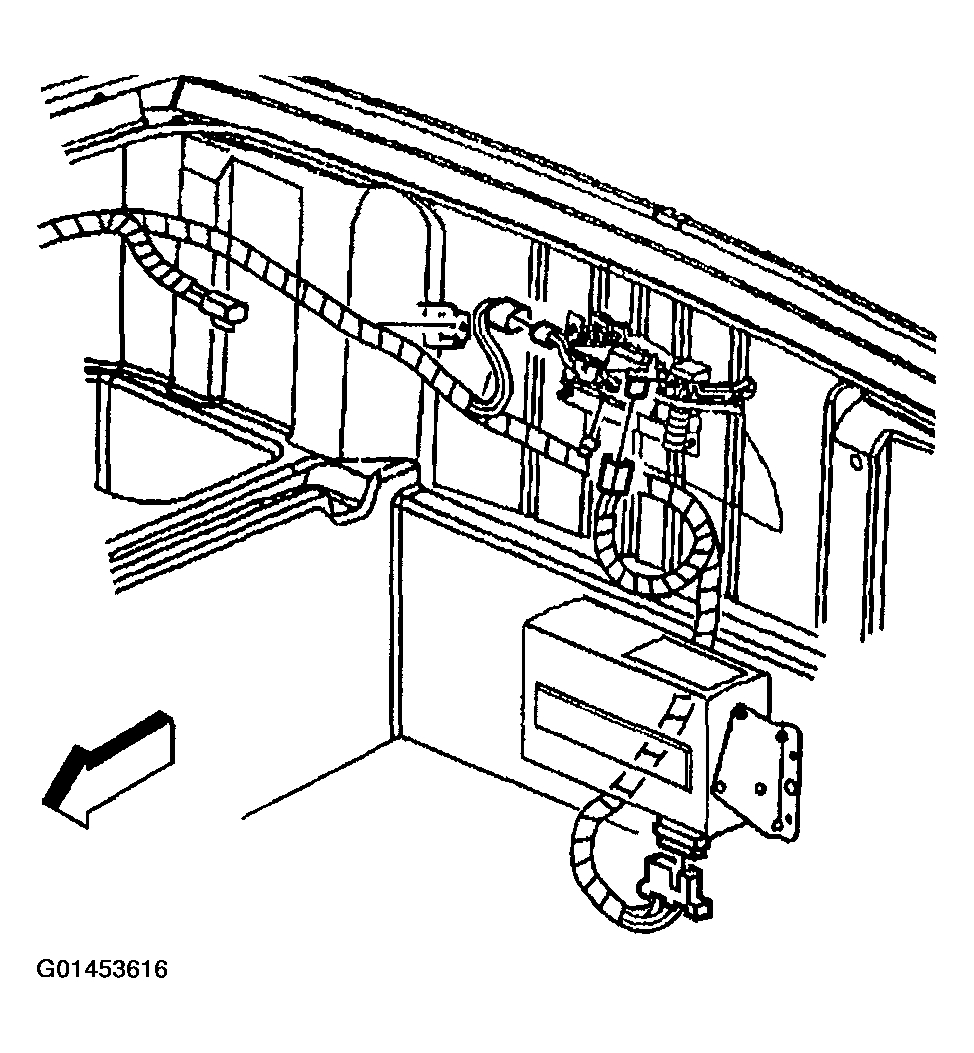

    Fig 6: Connecting Front Body Wiring Harness Connectors To Decklid Latch
    G01453616Courtesy of GENERAL MOTORS CORP.
  17. Install the edge of the rear compartment floor carpet behind the right decklid support.
  18. Install the right decklid support trim panel.

    Align the panel, then push to secure the retaining clips.

  19. Close the rear compartment lid.
    Fig 7: Right Decklid Support Trim Panel
    G01453617Courtesy of GENERAL MOTORS CORP.
