Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear roof bow interior trim panel. Refer to TRIM PANEL REPLACEMENT - REAR ROOF BOW in Interior Trim.
  2. Disconnect the rear lift window antenna cable from the antenna buffer.
  3. Carefully disconnect the rear lift window antenna cable from the rear lift window antenna connector.
  4. Remove the rear lift window antenna cable.

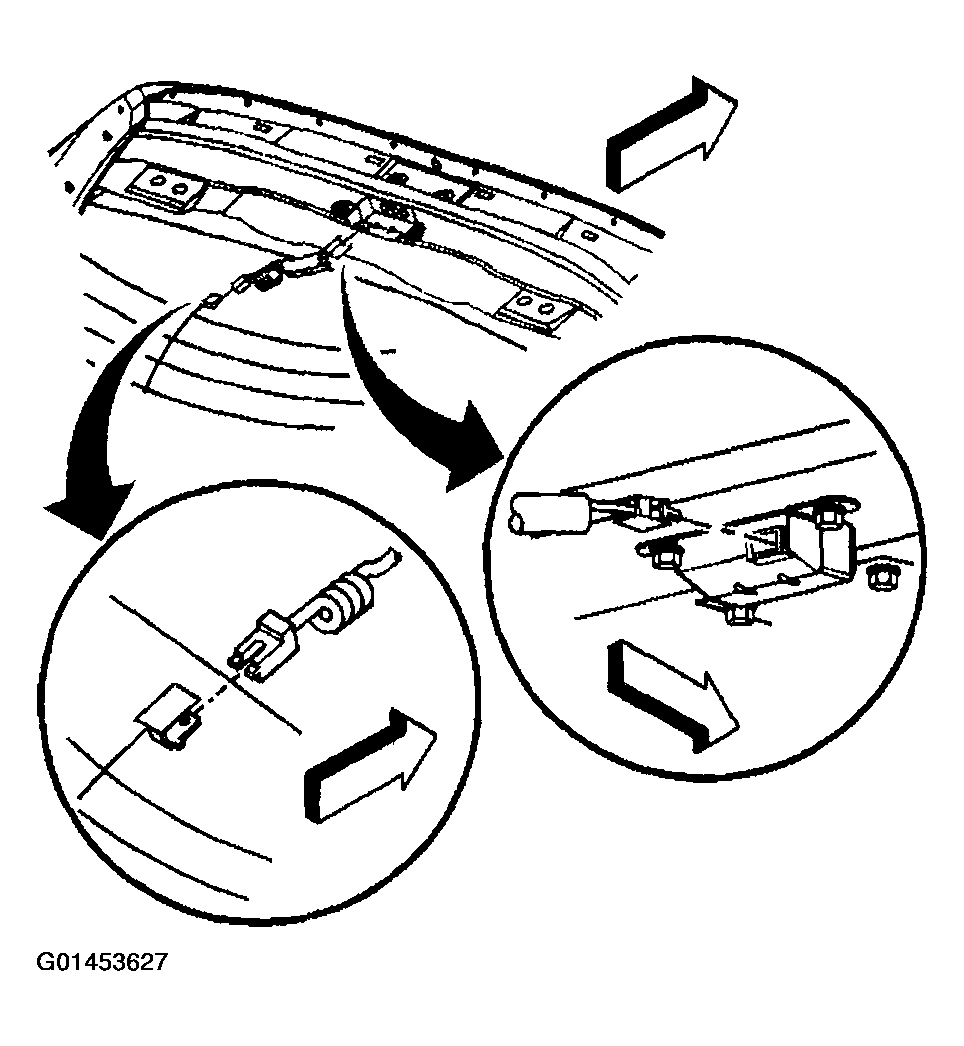

    Fig 1: Disconnecting Rear Lift Window Antenna Cable From Antenna Buffer
    G01453627Courtesy of GENERAL MOTORS CORP.
