Installation Procedure
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

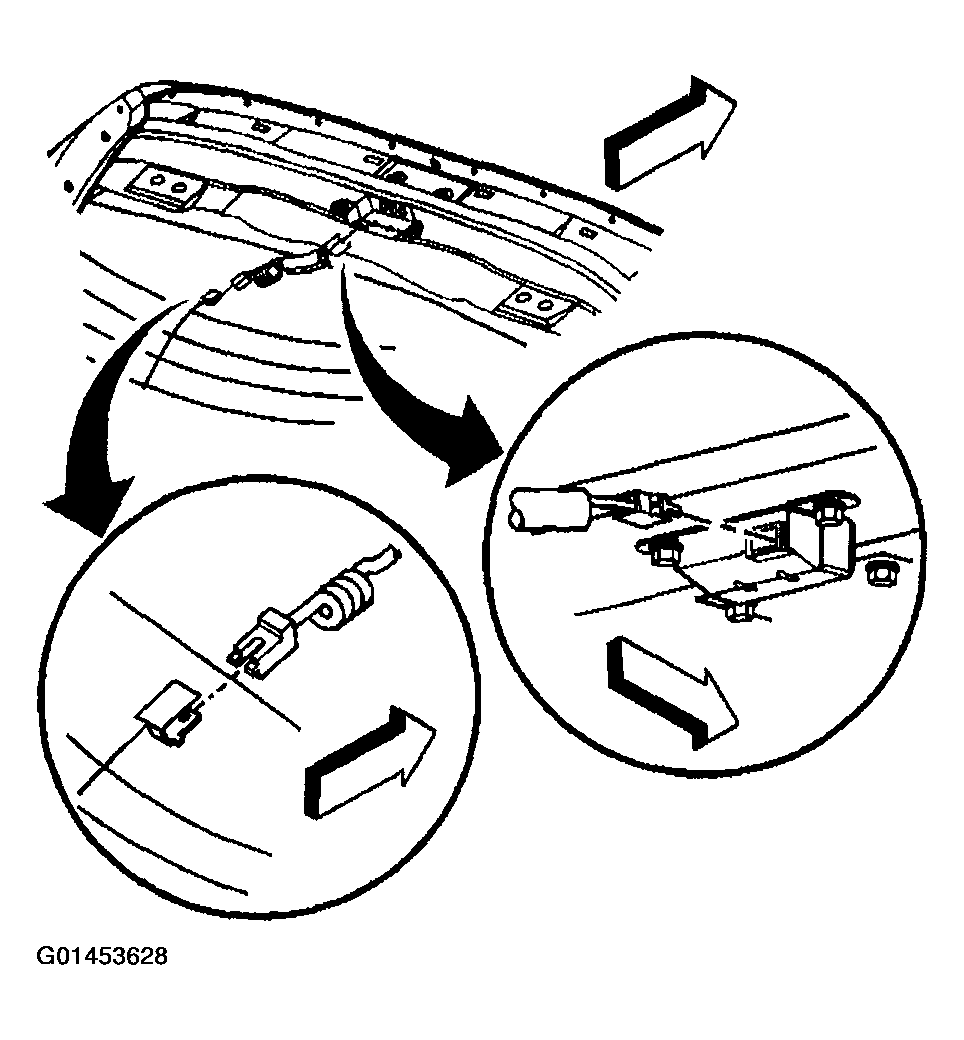

- Carefully connect the rear lift window antenna cable to the rear lift window antenna connector.
- Connect the rear lift window antenna cable to the antenna buffer.
Important: When installing the rear roof bow interior trim panel, ensure that the rear lift window antenna cable is seated in the slot along the rear edge of the trim panel.
- Install the rear roof bow interior trim panel. Refer to TRIM PANEL REPLACEMENT - REAR ROOF BOW in Interior Trim.
