Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  2. Using the J 39232, disconnect the wiper transmission from the wiper motor crank arm.
    Fig 1: Disconnecting Wiper Transmission From Wiper Motor Crank Arm Using Wiper Linkage Separator
    G01453470Courtesy of GENERAL MOTORS CORP.
  3. Remove the wiper motor crank arm screw.
  4. Remove the wiper motor crank arm from the wiper motor.

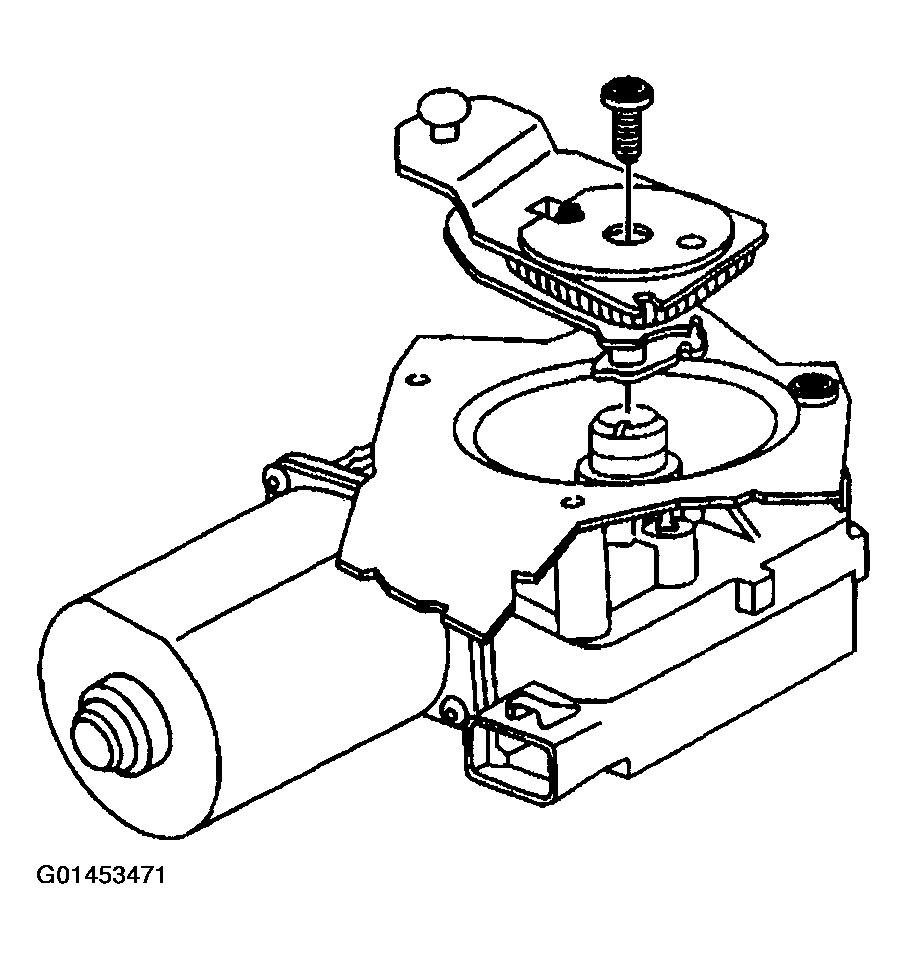

    Fig 2: Wiper Motor Crank Arm Screw
    G01453471Courtesy of GENERAL MOTORS CORP.
