Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the socket.
  2. Install the socket to the lamp.
  3. Close the lamp access door on top of the front fascia closeout.

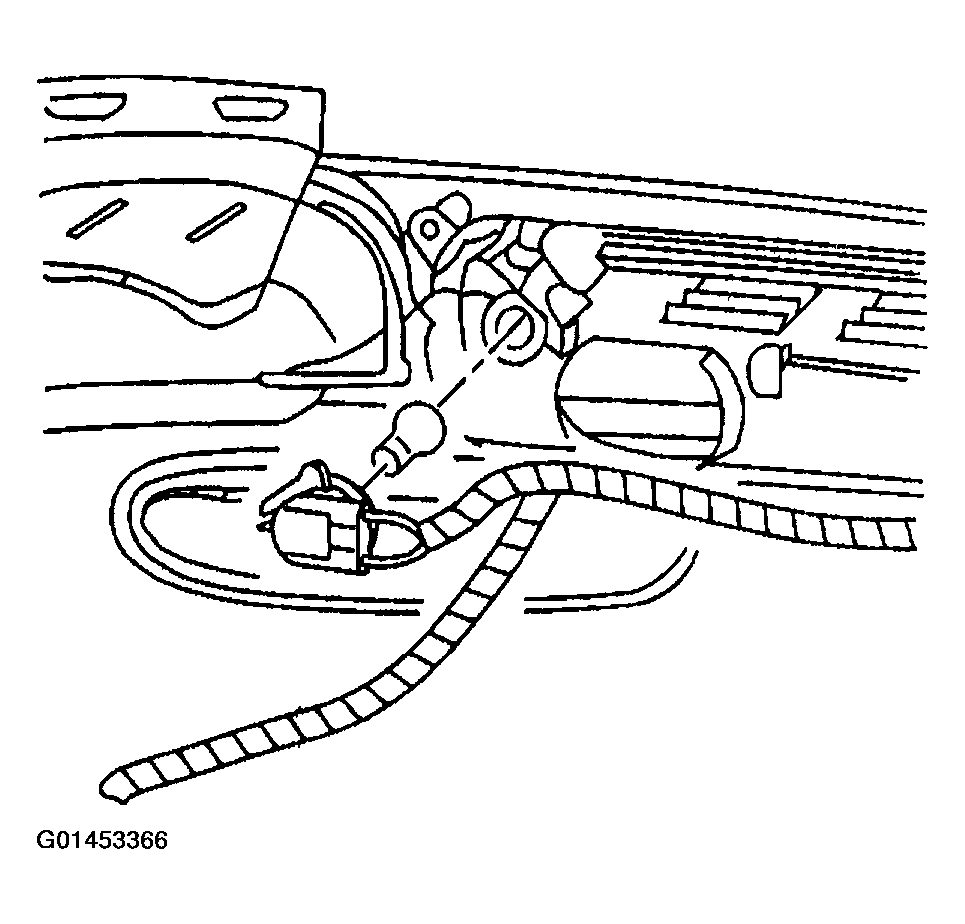

    Fig 1: Installing Bulb To Socket
    G01453366Courtesy of GENERAL MOTORS CORP.
  4. Position the brake caliper cooling duct to the front fascia and press to secure.
  5. Install the front fascia lower closeout panel. Refer to CLOSE OUT PANEL - FRONT BUMPER FASCIA LOWER in Bumpers.
  6. Lower the vehicle.
    Fig 2: Positioning Brake Caliper Cooling Duct To Front Fascia
    G01453367Courtesy of GENERAL MOTORS CORP.
